Guidelines for OpenVMS Cluster Configurations

The advantages and disadvantages of the configuration shown in Figure 7-2 include:

Advantages

• All nodes have shared, direct access to all storage.
• As the nodes and storage in this configuration grow, all nodes can still have shared, direct access to storage.
• The MSCP server is enabled for failover to the LAN interconnect in case the CI fails. Enabling the MSCP server also allows you to add satellites.
• This configuration has the lowest cost of the CI configurations shown in this section.

Disadvantage

• The single HSJ/HSC is a potential bottleneck and single point of failure.

An increased need for more storage or processing resources could lead to an OpenVMS Cluster configuration like the one shown in Figure 7-3.

7.3.2 Three-Node CI OpenVMS Cluster

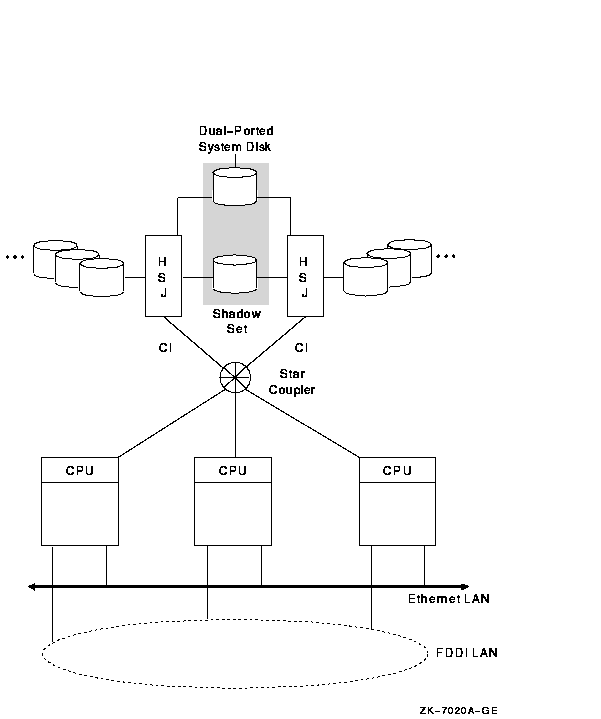

In Figure 7-3, three nodes are connected to two HSC controllers by the CI interconnects. The critical system disk is dual ported and shadowed.

Figure 7-3 Three-Node CI OpenVMS Cluster

The advantages and disadvantages of the configuration shown in Figure 7-3 include:

Advantages

• All nodes have shared, direct access to all storage.
• As the nodes and storage in this configuration grow, all nodes can still have shared, direct access to storage.
• The MSCP server is enabled for failover to the LAN interconnect, in case the CI fails. Enabling the MSCP server also allows you to add satellites.
• Volume shadowed, dual-ported disks increase data availability.

Disadvantage

• The HSJs/HSCs are potential bottlenecks.

If the I/O activity exceeds the capacity of the CI interconnect, this could lead to an OpenVMS Cluster configuration like the one shown in Figure 7-4.

7.3.3 Seven-Node CI OpenVMS Cluster

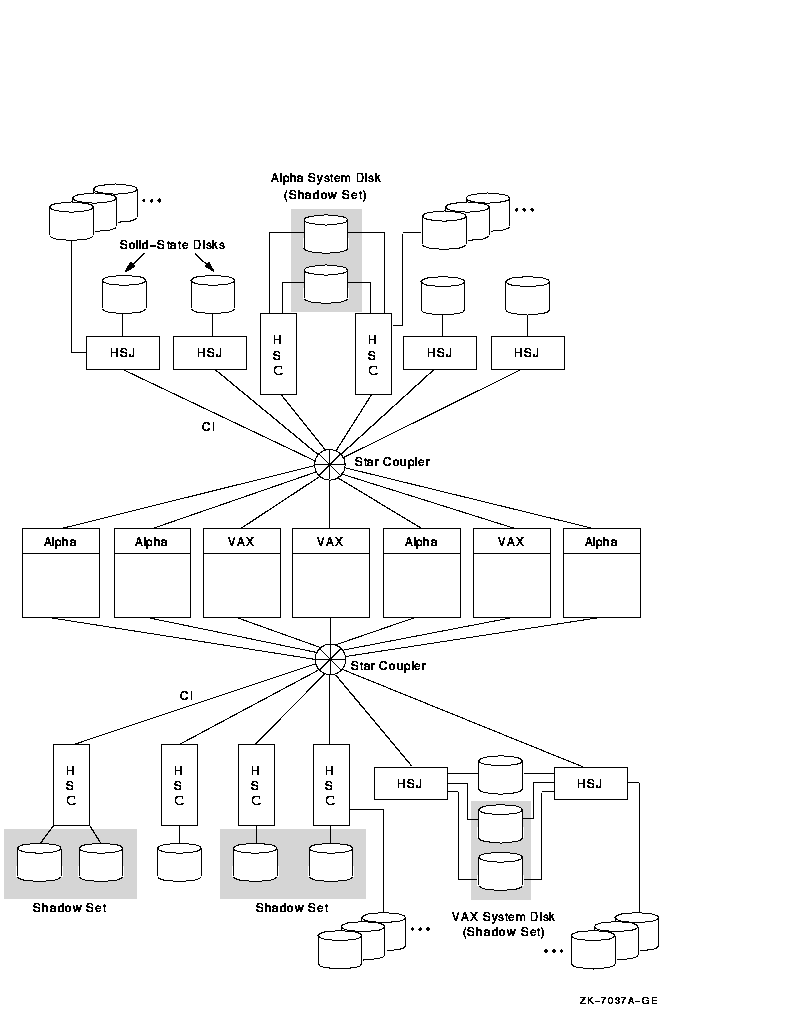

In Figure 7-4, seven nodes each have a direct connection to two star couplers and to all storage.

Figure 7-4 Seven-Node CI OpenVMS Cluster

The advantages and disadvantages of the configuration shown in Figure 7-4 include:

Advantages

• All nodes have shared, direct access to all storage.
• This configuration has more than double the storage, processing, and CI interconnect capacity than a configuration like the one shown in Figure 7-3.
• Two CI interconnects between processors and storage provide twice the communication performance of one path.
• Volume shadowed, dual-ported disks increase data availability.

Disadvantage

• This configuration is complex and requires experienced personnel to configure, tune, and manage it properly.

The following guidelines can help you configure your CI OpenVMS Cluster:

• Every system should have shared, direct access to all storage.
• In a CI OpenVMS Cluster larger than four nodes, use a second system disk for increased system performance.
  Reference: For more information on system disks, see Section 8.2.
• Enable your systems, interconnects, and storage to work to their full capacity by eliminating bottlenecks. If any of these components is not able to handle the I/O capacity, none of the other components will work at its best. Ensure that the sum of all the I/O on your nodes is less than or equal to your CI capacity and to your storage capacity. In calculating the sum of the I/O on your nodes, factor in 5--10% extra for lock manager internode communications.
  In general, use the following rules of thumb:
  • The sum of all the I/Os on your nodes plus internode communications should be less than or equal to the sum of your CI capacity.
  • Your CI capacity should be less than or equal to the sum of your storage capacity.

Volume shadowing is intended to enhance availability, not performance. However, the following volume shadowing strategies enable you to utilize availability features while also maximizing I/O capacity. These examples show CI configurations, but they apply to DSSI and SCSI configurations, as well.

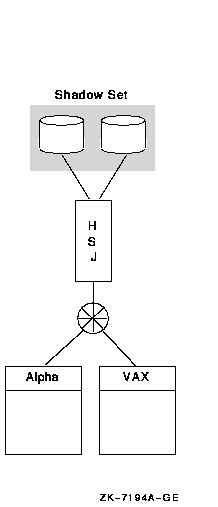

Figure 7-5 Volume Shadowing on a Single Controller

Figure 7-5 shows two nodes connected to an HSJ, with a two-member shadow set.

The disadvantage of this strategy is that the controller is a single point of failure. The configuration in Figure 7-6 shows examples of shadowing across controllers, which prevents one controller from being a single point of failure. Shadowing across HSJ and HSC controllers provides optimal scalability and availability within an OpenVMS Cluster system.

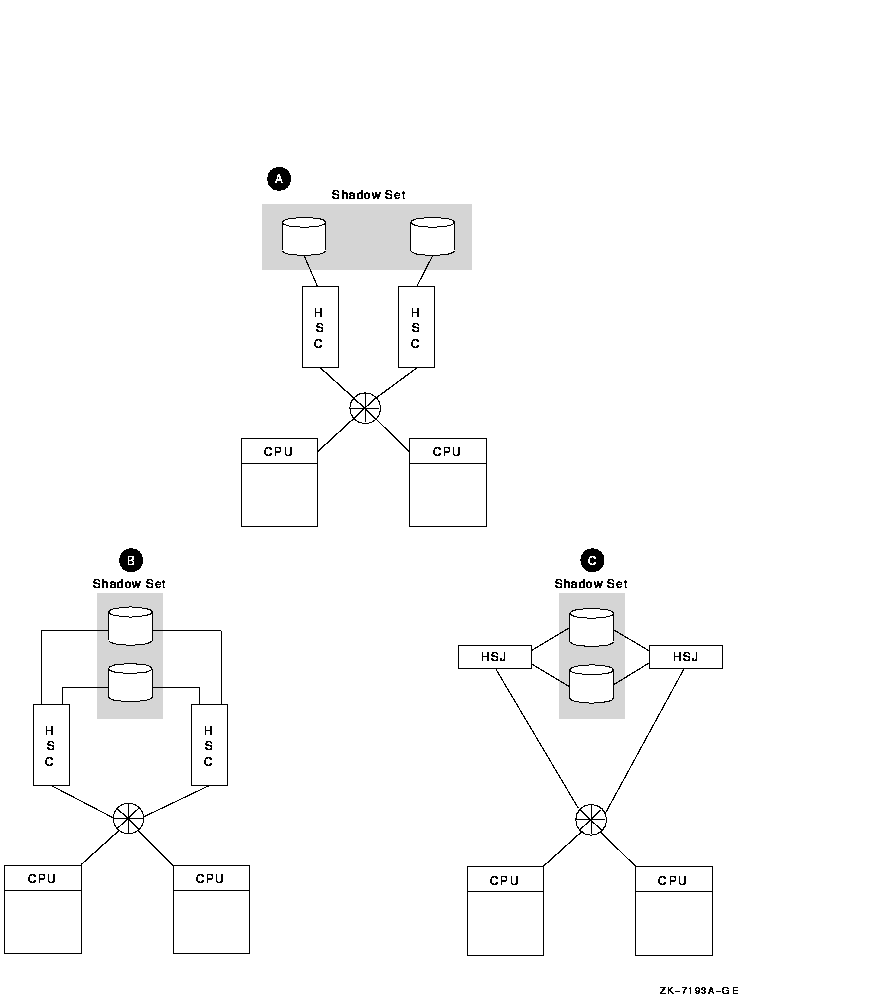

Figure 7-6 Volume Shadowing Across Controllers

As Figure 7-6 shows, shadowing across controllers has three variations:

• Strategy A shows each volume in the shadow set attached to separate controllers. This configuration is not optimal because each volume is not attached to each controller.
• Strategy B shows dual-ported devices that have two paths to the volumes through separate controllers. This strategy is an optimal variation because two HSC controllers have direct access to a single storage device.
• Strategy C shows HSJ controllers shadowed across SCSI buses. It also is an optimal variation because two HSJ controllers have direct access to a single storage device.

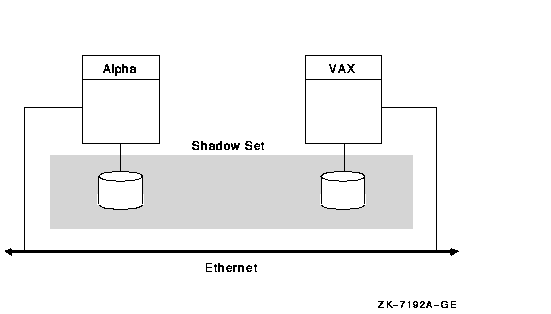

Figure 7-7 shows an example of shadowing across nodes.

Figure 7-7 Volume Shadowing Across Nodes

As Figure 7-7 shows, shadowing across nodes provides the advantage of flexibility in distance. However, it requires MSCP server overhead for write I/Os. In addition, the failure of one of the nodes and its subsequent return to the OpenVMS Cluster will cause a copy operation.

If you have multiple volumes, shadowing inside a controller and shadowing across controllers are more effective than shadowing across nodes.

Reference: See Volume Shadowing for OpenVMS for more information.

7.4 Scalability in DSSI OpenVMS Clusters

Each DSSI interconnect can have up to eight nodes attached; four can be systems and the rest can be storage devices. Figure 7-8, Figure 7-9, and Figure 7-10 show a progression from a two-node DSSI OpenVMS Cluster to a four-node DSSI OpenVMS Cluster.

7.4.1 Two-Node DSSI OpenVMS Cluster

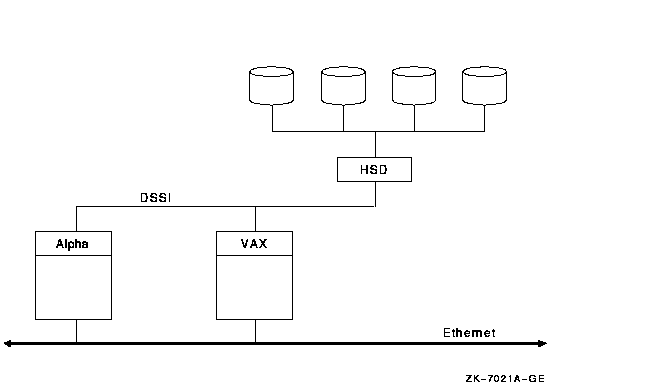

In Figure 7-8, two nodes are connected to four disks by a common DSSI interconnect.

Figure 7-8 Two-Node DSSI OpenVMS Cluster

The advantages and disadvantages of the configuration shown in Figure 7-8 include:

Advantages

• Both nodes have shared, direct access to all storage.
• The Ethernet LAN ensures failover capability if the DSSI interconnect fails.

Disadvantages

• The amount of storage that is directly accessible to all nodes is limited.
• A single DSSI interconnect can become a single point of failure.

If the OpenVMS Cluster in Figure 7-8 required more processing power, more storage, and better redundancy, this could lead to a configuration like the one shown in Figure 7-9.

7.4.2 Four-Node DSSI OpenVMS Cluster with Shared Access

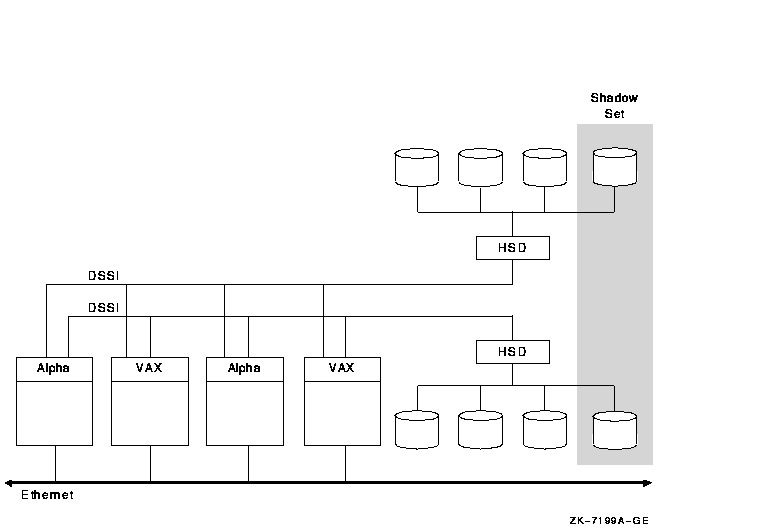

In Figure 7-9, four nodes have shared, direct access to eight disks through two DSSI interconnects. Two of the disks are shadowed across DSSI interconnects.

Figure 7-9 Four-Node DSSI OpenVMS Cluster with Shared Access

The advantages and disadvantages of the configuration shown in Figure 7-9 include:

Advantages

• All nodes have shared, direct access to all storage.
• The Ethernet LAN ensures failover capability if the DSSI interconnect fails.
• Shadowing across DSSI interconnects provides increased performance and availability.

Disadvantage

• The amount of storage that is directly accessible to all nodes is limited.

If the configuration in Figure 7-9 required more storage, this could lead to a configuration like the one shown in Figure 7-10.

7.4.3 Four-Node DSSI OpenVMS Cluster with Some Nonshared Access

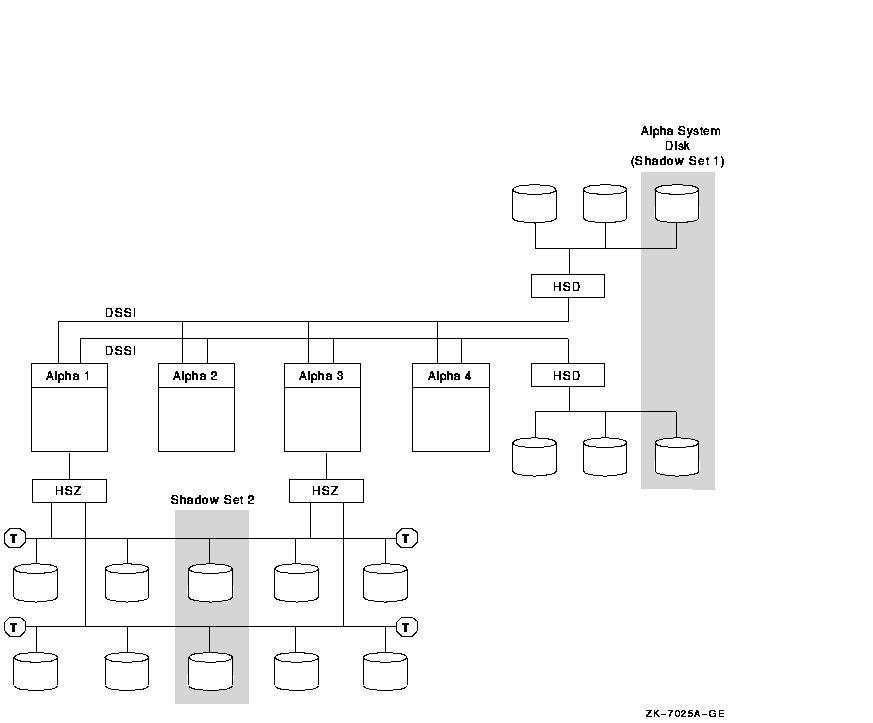

Figure 7-10 shows an OpenVMS Cluster with 4 nodes and 10 disks. This model differs from Figure 7-8 and Figure 7-9 in that some of the nodes do not have shared, direct access to some of the disks, thus requiring these disks to MSCP served. For the best performance, place your highest-priority data on disks that are directly connected by common DSSI interconnects to your nodes. Volume shadowing across common DSSI interconnects provides the highest availability and may increase read performance.

Figure 7-10 DSSI OpenVMS Cluster with 10 Disks

The advantages and disadvantages of the configuration shown in Figure 7-10 include:

Advantages

• All nodes have shared, direct access to most of the storage.
• The MSCP server is enabled to allow failover to the alternate DSSI interconnect if one of the DSSI interconnects fails.
• Shadowing across DSSI interconnects provides increased performance and availability.
• The SCSI storage connected through the HSZ controllers provides good performance and scalability.

Disadvantages

• The amount of storage that is directly accessible to all nodes is limited.
• Shadow set 2 requires MSCP serving to coordinate shadowing activity.
• Some nodes do not have direct access to storage. For example, Alpha 2 and Alpha 4 do not have direct access to disks connected to Alpha 1 and Alpha 3.

Each MEMORY CHANNEL (MC) interconnect can have up to four nodes attached to each MEMORY CHANNEL hub. For two-hub configurations, each node must have two PCI adapters, and each one must be attached to a different hub. In a two-node configuration, no hub is required because one of the PCI adapters serves as a virtual hub.

Figure 7-11, Figure 7-12, and Figure 7-13 show a progression from a two-node MEMORY CHANNEL cluster to a four-node MEMORY CHANNEL cluster.

Reference: For additional configuration information and a more detailed technical summary of how MEMORY CHANNEL works, see Appendix B.

7.5.1 Two-Node MEMORY CHANNEL Cluster

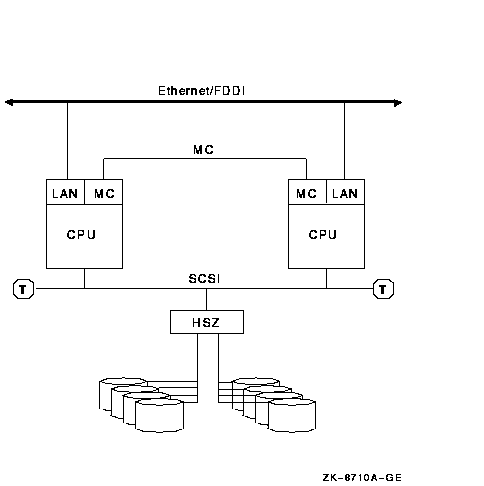

In Figure 7-11, two nodes are connected by a MEMORY CHANNEL interconnect, a LAN (Ethernet, FDDI, or ATM) interconnect, and a SCSI interconnect.

Figure 7-11 Two-Node MEMORY CHANNEL OpenVMS Cluster

The advantages and disadvantages of the configuration shown in Figure 7-11 include:

Advantages

• Both nodes have shared, direct access to all storage.
• The Ethernet/FDDI/ATM interconnect enables failover if the MEMORY CHANNEL interconnect fails.
• The limit of two MEMORY CHANNEL nodes means that no hub is required; one PCI adapter serves as a virtual hub.

Disadvantages

• The amount of storage that is directly accessible to all nodes is limited.
• A single SCSI interconnect or HSZ controller can become a single point of failure.

If the OpenVMS Cluster in Figure 7-11 required more processing power and better redundancy, this could lead to a configuration like the one shown in Figure 7-12.

7.5.2 Three-Node MEMORY CHANNEL Cluster

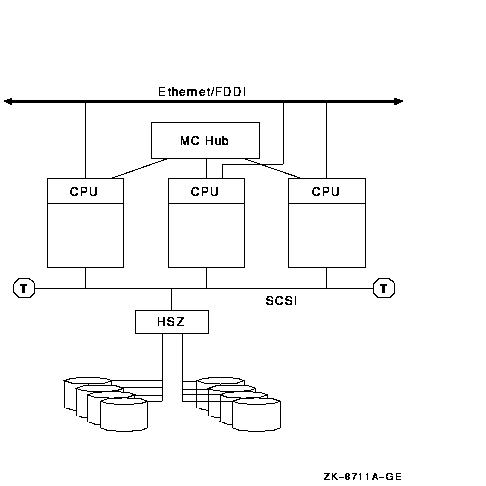

In Figure 7-12, three nodes are connected by a high-speed MEMORY CHANNEL interconnect, as well as by a LAN (Ethernet, FDDI, or ATM) interconnect. These nodes also have shared, direct access to storage through the SCSI interconnect.

Figure 7-12 Three-Node MEMORY CHANNEL OpenVMS Cluster

The advantages and disadvantages of the configuration shown in Figure 7-12 include:

Advantages

• All nodes have shared, direct access to storage.
• The Ethernet/FDDI/ATM interconnect enables failover if the MEMORY CHANNEL interconnect fails.
• The addition of a MEMORY CHANNEL hub increases the limit on the number of nodes to a total of four.

Disadvantage

• The amount of storage that is directly accessible to all nodes is limited.

If the configuration in Figure 7-12 required more storage, this could lead to a configuration like the one shown in Figure 7-13.

7.5.3 Four-Node MEMORY CHANNEL OpenVMS Cluster

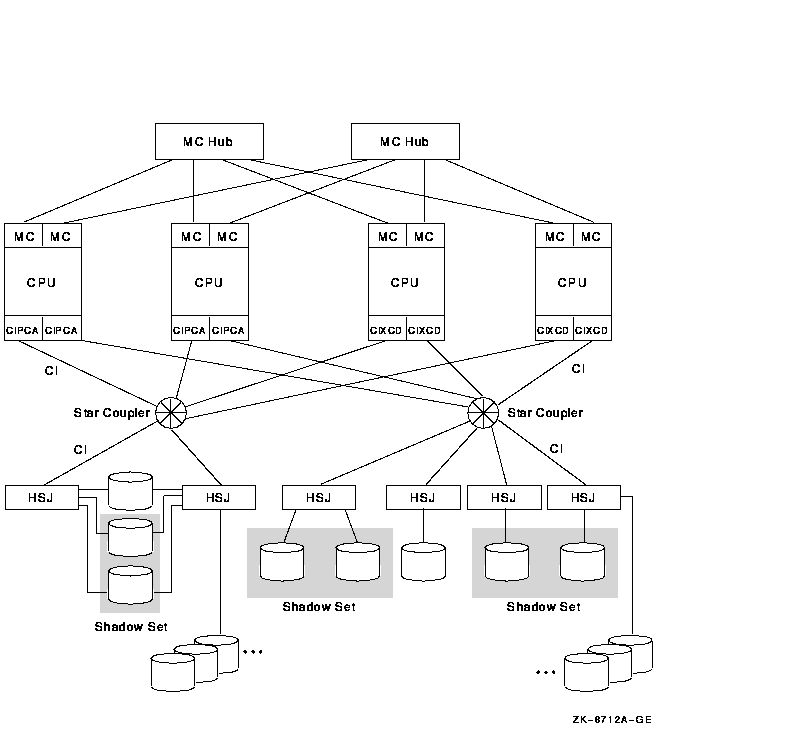

Figure 7-13, each node is connected by a MEMORY CHANNEL interconnect as well as by a CI interconnect.

Figure 7-13 MEMORY CHANNEL Cluster with a CI Cluster

The advantages and disadvantages of the configuration shown in Figure 7-13 include:

Advantages

• All nodes have shared, direct access to all of the storage.
• This configuration has more than double the storage and processing capacity as the one shown in Figure 7-12.
• If the MEMORY CHANNEL interconnect fails, the CI can take over internode communication.
• The CIPCA adapters on two of the nodes enable the addition of Alpha systems to a CI cluster that formerly comprised VAX (CIXCD-based) systems.
• Multiple CIs between processors and storage provide twice the performance of one path. Bandwidth further increases because MEMORY CHANNEL offloads internode traffic from the CI, enabling the CI to be devoted only to storage traffic. This improves the performance of the entire cluster.
• Volume shadowed, dual-ported disks increase data availability.

Disadvantage

• This configuration is complex and requires the care of an experienced system manager.

SCSI-based OpenVMS Clusters allow commodity-priced storage devices to be used directly in OpenVMS Clusters. Using a SCSI interconnect in an OpenVMS Cluster offers you variations in distance, price, and performance capacity. This new SCSI clustering capability is an ideal starting point when configuring a low-end, affordable cluster solution. SCSI clusters can range from desktop to deskside to departmental configurations.

Note the following general limitations when using the SCSI interconnect:

• Because the SCSI interconnect handles only storage traffic, it must always be paired with another interconnect for node-to-node traffic. In the figures shown in this section, MEMORY CHANNEL is the alternate interconnect; but CI, DSSI, Ethernet, and FDDI could also be used.
• Total SCSI cable lengths must take into account the system's internal cable length. For example, an AlphaServer 1000 rackmount uses 1.6 m of internal cable to connect the internal adapter to the external connector. Two AlphaServer 1000s joined by a 2 m SCSI cable would use 1.6 m within each system, resulting in a total SCSI bus length of 5.2 m.
  Reference: For more information about internal SCSI cable lengths as well as highly detailed information about clustering SCSI devices, see Appendix A.

The figures in this section show a progression from a two-node SCSI configuration with modest storage to a three-node SCSI "hub" configuration with maximum storage and further expansion capability.

7.6.1 Two-Node Narrow-Fast SCSI Cluster

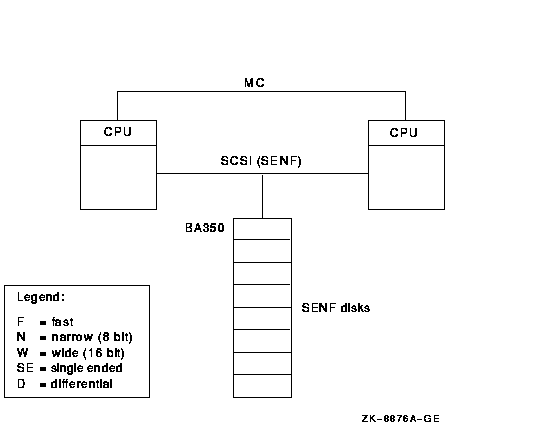

In Figure 7-14, two nodes are connected by a 3-m, single-ended, narrow-fast SCSI bus, with MEMORY CHANNEL (or any) interconnect for internode traffic. The BA350 storage cabinet contains single-ended, narrow-fast disks.

Figure 7-14 Two-Node Narrow-Fast SCSI Cluster

The advantages and disadvantages of the configuration shown in Figure 7-14 include:

Advantages

• Low-cost SCSI storage is shared by two nodes.
• The narrow-fast SCSI interconnect provides 10 MB/s performance.
• MEMORY CHANNEL handles internode traffic.
• The BA350 storage cabinet holds seven disk drives and a power supply.

Disadvantages

• The 3-m bus length limits the configuration.
• The narrow data path (8 bits) has somewhat limited throughput.

If the SCSI cluster in Figure 7-14 required a longer bus and more bandwidth, this could lead to a configuration like the one shown in Figure 7-15.

7.6.2 Two-Node Fast-Wide SCSI Cluster

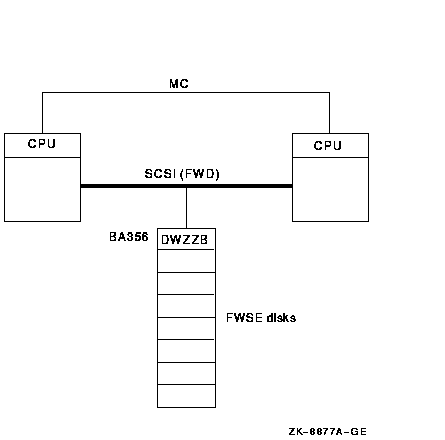

In Figure 7-15, two nodes are connected by a 25-m, fast-wide differential (FWD) SCSI bus, with MEMORY CHANNEL (or any) interconnect for internode traffic. The BA356 storage cabinet contains a power supply, a DWZZB single-ended to differential converter, and six disk drives. This configuration can have either narrow or wide disks.

Figure 7-15 Two-Node Fast-Wide SCSI Cluster

The advantages and disadvantages of the configuration shown in Figure 7-15 include:

Advantages

• With the BA356 cabinet, you can use a narrow (8 bit) or wide (16 bit) SCSI bus.
• The DWZZB converts single-ended signals to differential.
• Costs slightly more than the configuration shown in Figure 7-14, but performs at twice the speed. The fast-wide SCSI interconnect provides 20 MB/s performance, as compared with 10 MB/s for the narrow-fast SCSI interconnect shown in Figure 7-14.
• MEMORY CHANNEL handles internode traffic.
• Includes a longer, 25-m bus.

Disadvantage

• Somewhat limited storage capability.

If the configuration in Figure 7-15 required even more storage, this could lead to a configuration like the one shown in Figure 7-16.

7.6.3 Two-Node Fast-Wide SCSI Cluster with HSZ Storage

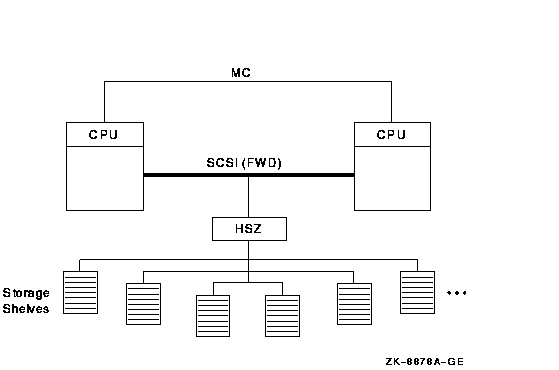

In Figure 7-16, two nodes are connected by a 25-m, fast-wide differential (FWD) SCSI bus, with MEMORY CHANNEL (or any) interconnect for internode traffic. Multiple storage shelves are within the HSZ controller.

Figure 7-16 Two-Node Fast-Wide SCSI Cluster with HSZ Storage

The advantages and disadvantages of the configuration shown in Figure 7-16 include:

Advantages

• Costs slightly more than the configuration shown in Figure 7-15, but offers significantly more storage. (The HSZ controller enables you to add more storage.)
• Cache in the HSZ, which also provides RAID 0, 1, and 5 technologies. The HSZ is a differential device; no converter is needed.
• MEMORY CHANNEL handles internode traffic.
• The FWD bus provides 20 MB/s throughput.
• Includes a longer, 25 m bus.

Disadvantage

• This configuration is more expensive than those shown in Figure 7-14 and Figure 7-15.

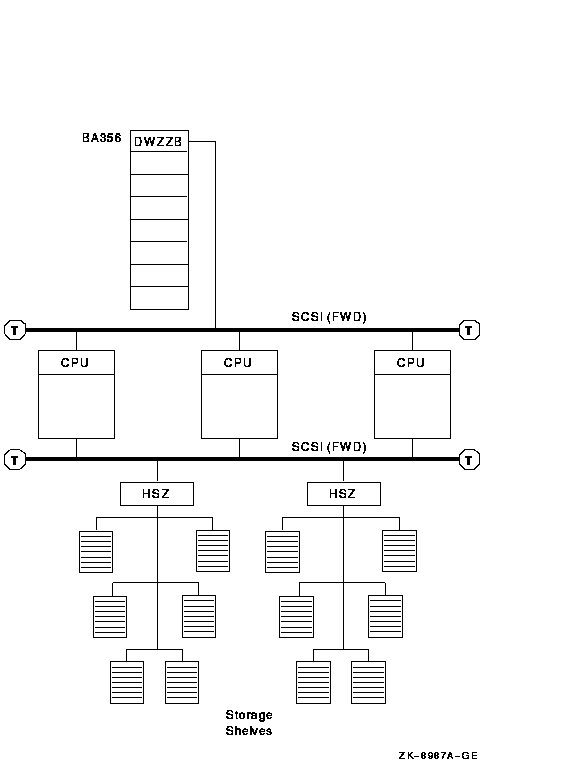

In Figure 7-17, three nodes are connected by two 25-m, fast-wide (FWD) SCSI interconnects. Multiple storage shelves are contained in each HSZ controller, and more storage is contained in the BA356 at the top of the figure.

Figure 7-17 Three-Node Fast-Wide SCSI Cluster

The advantages and disadvantages of the configuration shown in Figure 7-17 include:

Advantages

• Combines the advantages of the configurations shown in Figure 7-15 and Figure 7-16:
  • Significant (25 m) bus distance and scalability.
  • Includes cache in the HSZ, which also provides RAID 0, 1, and 5 technologies. The HSZ contains multiple storage shelves.
  • FWD bus provides 20 MB/s throughput.
  • With the BA356 cabinet, you can use narrow (8 bit) or wide (16 bit) SCSI bus.

Disadvantage

• This configuration is more expensive than those shown in previous figures.

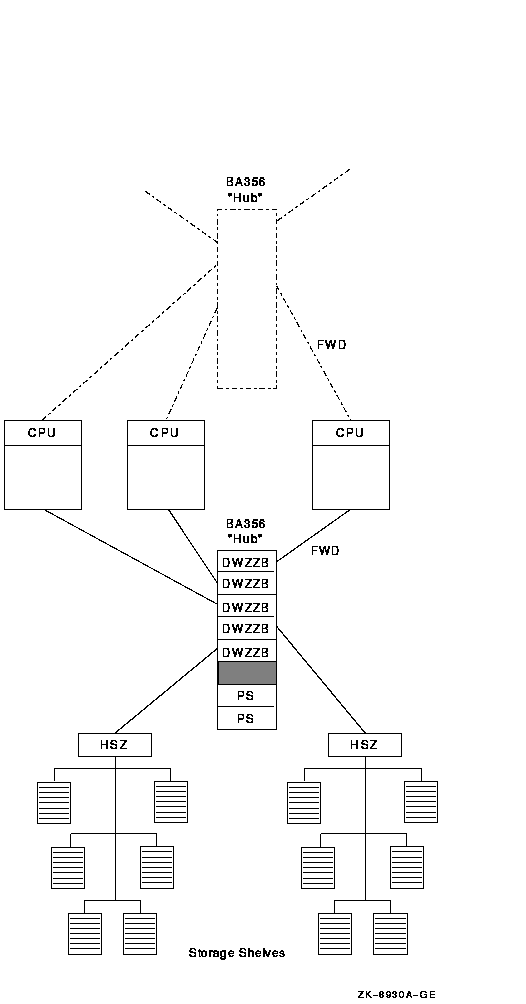

Figure 7-18 shows three nodes connected by a "SCSI hub"---a BA356 cabinet that contains two power supplies and up to five DWZZB converters. The DWZZB converters enable you to use the BA356 as a hub for storage and for nodes. When used in nonhub configurations, a FWD SCSI interconnect can be up to 25 m. However, in a hub configuration, the distance between any two nodes is limited to a total of 40 m, resulting in a 20-m maximum for each node.

Figure 7-18 also shows how the entire SCSI configuration can be extended by adding another BA356 hub, which can connect to additional nodes and storage.

Figure 7-18 Three-Node Fast-Wide SCSI Hub Configuration

The advantages and disadvantages of the configuration shown in Figure 7-18 include:

Advantages

• Provides significantly more bus distance and scalability that the configuration shown in Figure 7-16.
• DWZZB converters are configured back to back in the BA356 to increase the distance of a SCSI configuration from 25 m to 40 m. Note that this configuration is limited to five DWZZB converters, even though the BA356 appears to have space for more converters.
• Two power supplies in the BA356 (one for backup).
• Cache in the HSZs, which also provides RAID 0, 1, and 5 technologies.
• FWD bus provides 20 MB/s throughput.

Disadvantage

• Only the KZPSA and the HSZ40 are supported in this configuration.
• You cannot add to this configuration by daisy-chaining a SCSI interconnect from a CPU or HSZ to another device, such as an HSZ or a BA356.
• This configuration is more expensive than those shown in Figure 7-14, Figure 7-15, and Figure 7-16.

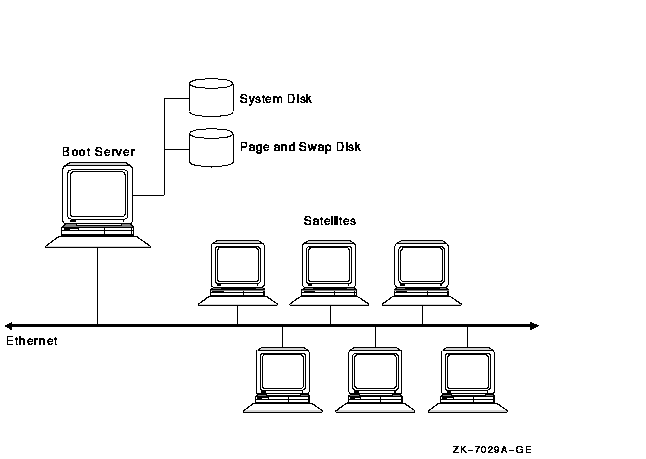

The number of satellites in an OpenVMS Cluster and the amount of storage that is MSCP served determine the need for the quantity and capacity of the servers. Satellites are systems that do not have direct access to a system disk and other OpenVMS Cluster storage. Satellites are usually workstations, but they can be any OpenVMS Cluster node that is served storage by other nodes in the OpenVMS Cluster.

Each Ethernet LAN segment should have only 10 to 20 satellite nodes attached. Figure 7-19, Figure 7-20, Figure 7-21, and Figure 7-22 show a progression from a 6-satellite LAN to a 45-satellite LAN.

7.7.1 Six-Satellite OpenVMS Cluster

In Figure 7-19, six satellites and a boot server are connected by Ethernet.

Figure 7-19 Six-Satellite LAN OpenVMS Cluster

The advantages and disadvantages of the configuration shown in Figure 7-19 include:

Advantages

• The MSCP server is enabled for adding satellites and allows access to more storage.
• With one system disk, system management is relatively simple.
  Reference: For information about managing system disks, see Section 8.2.

Disadvantage

• The Ethernet is a potential bottleneck and a single point of failure.

If the boot server in Figure 7-19 became a bottleneck, a configuration like the one shown in Figure 7-20 would be required.

7.7.2 Six-Satellite OpenVMS Cluster with Two Boot Nodes

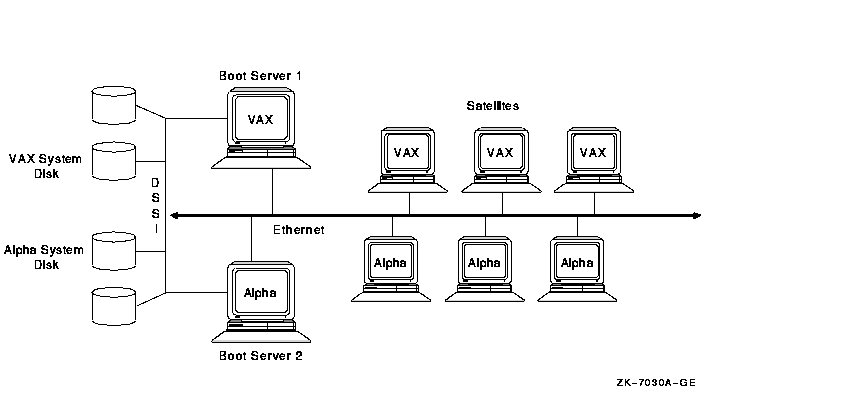

Figure 7-20 shows six satellites and two boot servers connected by Ethernet. Boot server 1 and boot server 2 perform MSCP server dynamic load balancing: they arbitrate and share the work load between them and if one node stops functioning, the other takes over. MSCP dynamic load balancing requires shared access to storage.

Figure 7-20 Six-Satellite LAN OpenVMS Cluster with Two Boot Nodes

The advantages and disadvantages of the configuration shown in Figure 7-20 include:

Advantages

• The MSCP server is enabled for adding satellites and allows access to more storage.
• Two boot servers perform MSCP dynamic load balancing.

Disadvantage

• The Ethernet is a potential bottleneck and a single point of failure.

If the LAN in Figure 7-20 became an OpenVMS Cluster bottleneck, this could lead to a configuration like the one shown in Figure 7-21.

7.7.3 Twelve-Satellite LAN OpenVMS Cluster with Two LAN Segments

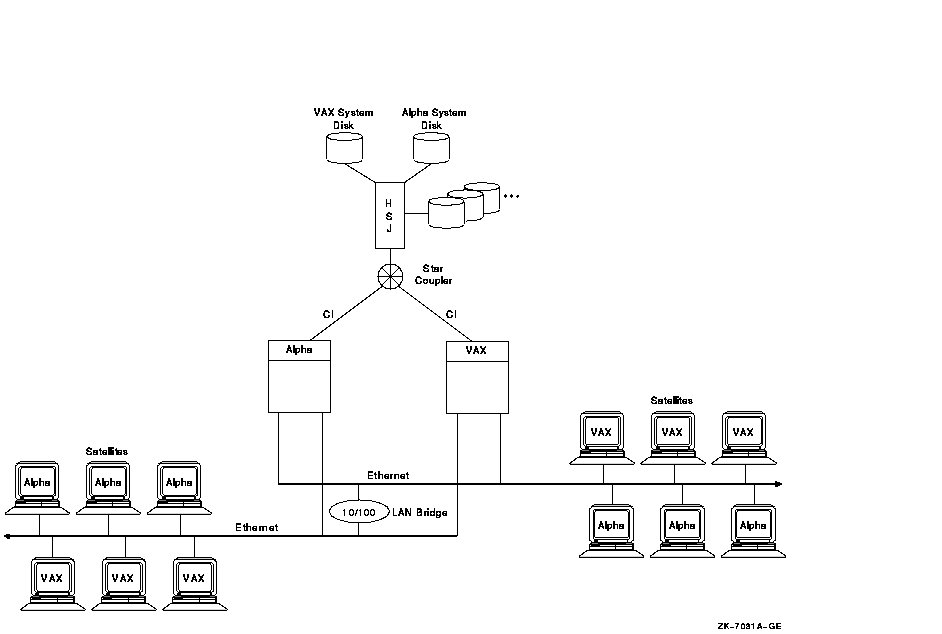

Figure 7-21 shows 12 satellites and 2 boot servers connected by two Ethernet segments. These two Ethernet segments are also joined by a LAN bridge. Because each satellite has dual paths to storage, this configuration also features MSCP dynamic load balancing.

Figure 7-21 Twelve-Satellite OpenVMS Cluster with Two LAN Segments

The advantages and disadvantages of the configuration shown in Figure 7-21 include:

Advantages

• The MSCP server is enabled for adding satellites and allows access to more storage.
• Two boot servers perform MSCP dynamic load balancing.
  From the perspective of a satellite on the Ethernet LAN, the dual paths to the Alpha and VAX nodes create the advantage of MSCP load balancing.
• Two LAN segments provide twice the amount of LAN capacity.

Disadvantages

• This OpenVMS Cluster configuration is limited by the number of satellites that it can support.
• The single HSJ controller is a potential bottleneck and a single point of failure.

If the OpenVMS Cluster in Figure 7-21 needed to grow beyond its current limits, this could lead to a configuration like the one shown in Figure 7-22.

7.7.4 Forty-Five Satellite OpenVMS Cluster with FDDI Ring

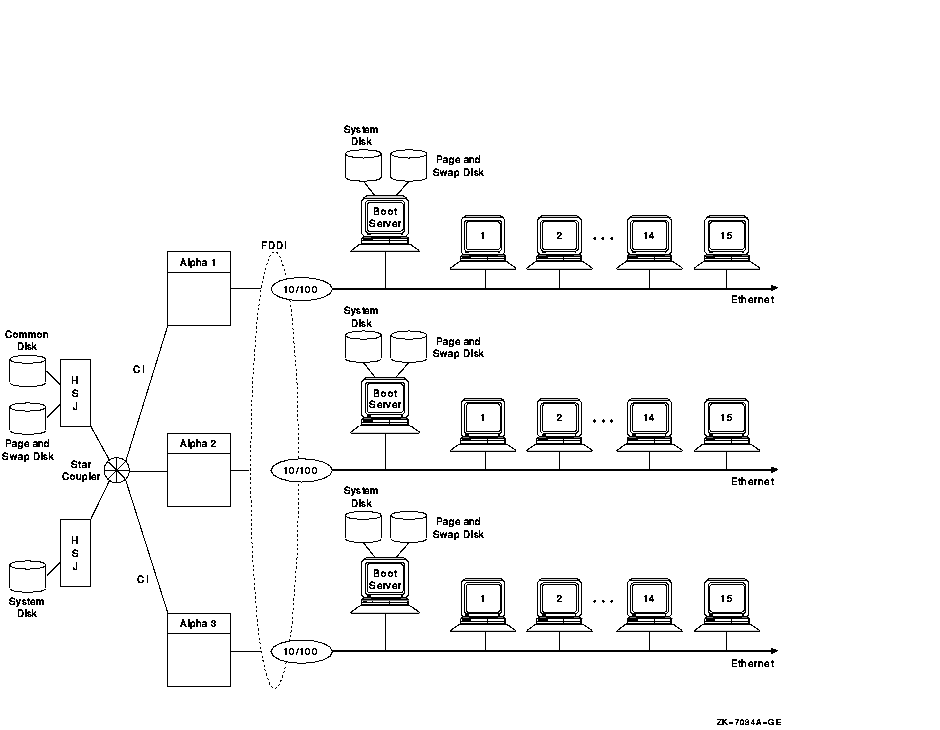

Figure 7-22 shows a large, 51-node OpenVMS Cluster. The three boot servers, Alpha 1, Alpha 2, and Alpha 3, have two disks: a common disk and a system disk. The FDDI ring has three LAN segments attached. Each segment has 15 workstation satellites as well as its own boot node.

Figure 7-22 Forty-Five Satellite OpenVMS Cluster with FDDI Ring

  6318P006.HTM
  OSSG Documentation
  26-NOV-1996 11:20:19.09

Copyright © Digital Equipment Corporation 1996. All Rights Reserved.

Legal
