This long display reflects the output of the SHOW CRASH command within the analysis of a system failure. #2

SDA> SHOW CRASH
System crash information
Time of system crash: 19-JAN-1995 10:16:12.71
Version of system: OpenVMS Alpha VERSION 7.0
System Version Major ID/Minor ID: 1/0
System type: Flamingo/EV4
Crash CPU ID/Primary CPU ID:  00/00
Bitmask of CPUs active/available:  00000001/00000001
CPU bugcheck codes:
        CPU 00 -- PGFIPLHI, Page fault with IPL too high

System State at Time of Page Fault:
---------------------------------
Page fault for address 00000000 7FFAB000 occured at IPL: 18
Memory management flags: 80000000 00000000 (data write)
Exception Frame:
----------------
        R2  = 00000000.7FFF0200
        R3  = 00000000.00000000
        R4  = FFFFFFFF.805DC700
        R5  = 00000000.7FF8C000
        R6  = FFFFFFFF.808C4F40
        R7  = 00000000.00000000
        PC  = FFFFFFFF.80BB4A2C  EXE$PRCDELMSG_C+005FC
        PS  = 30000000.00000200
        FFFFFFFF.80BB4A1C:      BLE             R0,#X000009
        FFFFFFFF.80BB4A20:      BIS             R31,R1,R17
        FFFFFFFF.80BB4A24:      ADDQ            R2,#X04,R16
        FFFFFFFF.80BB4A28:      BIS             R31,R0,R25
  PC => FFFFFFFF.80BB4A2C:      INSQUEL/D
        FFFFFFFF.80BB4A30:      LDQ             R24,#X0078(R13)
        FFFFFFFF.80BB4A34:      BIS             R31,R25,R0
        FFFFFFFF.80BB4A38:      SUBL            R0,#X01,R0
        FFFFFFFF.80BB4A3C:      ADDL            R1,R24,R1
   PS =>
         MBZ SPAL      MBZ    IPL VMM MBZ CURMOD INT PRVMOD
         0   30   00000000000 02  0   0   KERN   0   KERN

This display reflects the output of a SHOW CRASH command within the analysis of a PGFIPLHI bugcheck.

SHOW DEVICE

Displays a list of all devices in the system and their associated data structures, or displays the data structures associated with a given device or devices.

Format

SHOW DEVICE {[device-name]|/ADDRESS=ucb-address}

PARAMETER

device-name

Device or devices for which data structures are to be displayed. There are several uses of the device-name parameter.
To Display the Structures For... Action
All devices in the system Do not specify a device-name (for example, SHOW DEVICE).
A single device Specify an entire device-name (for example, SHOW DEVICE VTA20).
All devices of a certain type on a single controller Specify only the device type and controller designation (for example, SHOW DEVICE RTA or SHOW DEVICE RTB).
All devices of a certain type on any controller Specify only the device type (for example, SHOW DEVICE RT).
All devices whose names begin with a certain character or character string Specify the character or character string (for example, SHOW DEVICE D).
All devices on a single node or HSC Specify only the node name or HSC name (for example, SHOW DEVICE GREEN$).

QUALIFIER

/ADDRESS=ucb-address

Indicates the device for which data structure information is to be displayed by the address of its unit control block (UCB). The /ADDRESS qualifier is an alternate method of supplying a device name to the SHOW DEVICE command. If both the device-name parameter and the /ADDRESS qualifier appear in a single SHOW DEVICE command, SDA responds only to the parameter or qualifier that appears first.

DESCRIPTION

The SHOW DEVICE command produces several displays taken from system data structures that describe the devices in the system configuration.

If you use the SHOW DEVICE command to display information for more than one device or one or more controllers, it initially produces the DDB (device data block) list display to provide a brief summary of the devices for which it renders information in subsequent screens.

Information in the DDB list appears in five columns, the contents of which are as follows:

The SHOW DEVICE command then produces a display of information pertinent to the device controller. This display includes information gathered from the following structures:

If the controller is an HSC controller, SHOW DEVICE also displays information from its system block (SB) and each path block (PB).

Many of these structures contain pointers to other structures and driver routines. Most notably, the DDT display points to various routines located within driver code, such as the start I/O routine, unit initialization routine, and cancel I/O routine.

For each device unit subject to the SHOW DEVICE command, SDA displays information taken from its unit control block, including a list of all I/O request packets (IRPs) in its I/O request queue. For certain mass storage devices, SHOW DEVICE also displays information from the primary class driver data block (CDDB), the volume control block (VCB), and the ACP queue block (AQB). For units that are part of a shadow set, SDA displays a summary of shadow set membership.

As it displays information for a given device unit, SHOW DEVICE defines the following symbols as appropriate:
Symbol Meaning
UCB Address of unit control block
SB Address of system block
ORB Address of object rights block
DDB Address of device data block
DDT Address of driver dispatch table
CRB Address of channel request block
AMB Associated mailbox UCB pointer
IRP Address of I/O request packet
2P_UCB Address of alternate UCB for dual-pathed device
LNM Address of logical name block for mailbox
PDT Address of port descriptor table
CDDB Address of class driver descriptor block for MSCP served device
2P_CDDB Address of alternate CDDB for MSCP served device
RWAITCNT Resource wait count for MSCP served device
VCB Address of volume control block for mounted device

If you are examining a driver-related system failure, you may find it helpful to issue a SHOW STACK command after the appropriate SHOW DEVICE command, examining the stack for any of these symbols. Note, however, that although the SHOW DEVICE command defines those symbols relevant to the last device unit it has displayed, and redefines symbols relevant to any subsequently displayed device unit, it does not undefine symbols. (For instance, SHOW DEVICE DUA0 defines the symbol PDT, but SHOW DEVICE MBA0 does not undefine it, even though the PDT structure is not associated with a mailbox device.) In order to maintain the accuracy of such symbols that appear in the stack listing, use the DEFINE command to modify the symbol name. For example:

SDA> DEFINE DUA0_PDT PDT
SDA> DEFINE MBA0_UCB UCB

See the descriptions of the READ and FORMAT commands for additional information on defining and examining the contents of device data structures.

Examples

#1
SDA>SHOW DEVICE/ADDRESS=8041E540
OPA0                            VT300_Series       UCB address    8041E540

Device status:   00000010 online
Characteristics: 0C040007 rec,ccl,trm,avl,idv,odv
                 00000200 nnm
Owner UIC [000001 ,000004]  Operation count        160    ORB address    8041E4E8
      PID         00010008  Error count              0    DDB address    8041E3F8
Class/Type           42/70  Reference count          2    DDT address    8041E438
Def. buf. size          80  BOFF              00000001    CRB address    8041E740
DEVDEPEND         180093A0  Byte count        0000012C    I/O wait queue 8041E5AC
DEVDEPND2         FB101000  SVAPTE            80537B80
DEVDEPND3         00000000  DEVSTS            00000001
FLCK index              3A
DLCK address      8041E880
*** I/O request queue is empty ***

This example reproduces the SHOW DEVICE display for a single device unit, OPA0. Whereas this display lists information from the UCB for OPA0, including some addresses of key data structures and a list of pending I/O requests for the unit, it does not display information about the controller or its device driver. To display the latter information, specify the device-name as OPA (for example, SHOW DEVICE OPA).

#2
SDA> SHOW DEVICE DU
I/O data structures
-------------------
                            DDB list
                            --------

       Address    Controller     ACP         Driver               DPT
       -------    ----------   --------   ------------            ---

      80D0B3C0    BLUES$DUA     F11XQP    SYS$DKDRIVER          807735B0
      8000B2B8    RED$DUA       F11XQP    SYS$DKDRIVER          807735B0
      80D08BA0    BIGTOP$DUA    F11XQP    SYS$DKDRIVER          807735B0
      80D08AE0    TIMEIN$DUA    F11XQP    SYS$DKDRIVER          807735B0
   .
   .
   .
Press RETURN for more.
   .
   .
   .

This excerpt from the output of the SHOW DEVICE DU command illustrates the format of the DDB list display. In this case, the DDB list concerns itself with those devices whose device type begins with DU. It displays devices of these types attached to various HSCs (RED$ and BLUES$) and systems in a cluster (BIGTOP$ and TIMEIN$).

SHOW DUMP

Displays formatted information of the header, error log buffers, logical memory blocks (LMBs), compression data, and dump summary. It can also be used to display hexadecimal information of individual blocks.

Format

SHOW DUMP {/ALL|/BLOCK[=m[{:|;}n]] |[/COMPRESSION_MAP[=m[:n]] |/ERROR_LOGS|/HEADER |/LMB[={ALL|n}]|/SUMMARY]}

PARAMETER

None

QUALIFIERS

/ALL

Displays the equivalent to specifying all the /SUMMARY, /HEADER, /ERROR_LOGS, /COMPRESSION_MAP, and /LMB=ALL qualifiers.

/BLOCK[=m[{:|;}n]]

Displays a hexadecimal dump of one or more blocks. Ranges can be expressed by using the following syntax:
no value Displays next block
m Displays single block
m:n Displays a range of blocks from m to n, inclusive
m;n Displays a range of blocks starting at m and continuing for n blocks

/COMPRESSION_MAP[=m[:n]]

Displays details of the compression data. Levels of detail can be expressed by using the following syntax:
no value Displays a summary of all compression map blocks
m Displays contents of a single compression map block
m:n Displays details of single compression map entry

/ERROR_LOGS

Displays a summary of the error log buffers.

/HEADER

Displays the formatted contents of the dump header.

/LMB[={ALL|n}]

Displays the formatted contents of logical memory block (LMB) headers and the virtual address (VA) ranges within the LMB. LMBs to be displayed can be expressed by using the following syntax:
no value Displays next LMB
n Displays LMB at block n of the dump
ALL Displays all LMBs

/SUMMARY

Displays a summary of the dump. This is the default.

DESCRIPTION

The SHOW DUMP command displays information about the structure of the dump file. It displays the header, the error log buffers, the compression map, and in the case of a selective dump, the logical memory block (LMB) headers. This command is provided for use when troubleshooting dump analysis problems.

Example

SDA >SHOW DUMP/SUMMARY
Summary of dump file DKA300:[SYS0.SYSEXE]SYSDUMP.DMP;8
------------------------------------------------------
Dump type:                   Compressed selective
Size of dump file:           000203A0/000203A0 (132000./132000.)
Highest VBN written:         0000D407          (54279.)
Uncompressed equivalent:     0001AF1C          (110364.)
Compression ratio:           2.03:1            (49.2%)


                                                                     Uncomp    Uncomp
                      Dump file section             VBN     Blocks     VBN     blocks
----------------------------------------------  ---------- --------  -------  --------
Dump header                                       00000001 00000002
Error log buffers                                 00000003 00000020
Compression map                                   00000023 00000010
LMB 0000 (PT space)                               00000033 00000038  00000033 000000D2
LMB 0001 (S0/S1 space)                            0000006B 0000621B  00000105 000095A5
LMB 0002 (S2 space)                               00006286 000001A3  000096AA 00000352
LMB 0003 (Page tables of key process "SYSTEM")    00006429 00000005  000099FC 00000062
LMB 0004 (Memory of key process "SYSTEM")         0000642E 00000071  00009A5E 00000342
   .
   .
   .
LMB 0003 (Page tables of key process "NETACP")    0000697B 00000009  0000AE14 00000052
LMB 0004 (Memory of key process "NETACP")         00006984 000013F7  0000AE66 00001F42
LMB 0005 (Key global pages)                       00007D7B 000002BA  0000CDA8 00000312
LMB 0006 (Page tables of process "DTWM")          00008035 00000013  0000D0BA 00000082
LMB 0007 (Memory of process "DTWM")               00008048 000013A3  0000D13C 000022E4
   .
   .
   .
LMB 0006 (Page tables of process "Milord_FTA1:")  0000C5E3 00000005  00019A44 00000062
LMB 0007 (Memory of process "Milord_FTA1:")       0000C5E8 00000074  00019AA6 00000222
LMB 0008 (Remaining global pages)                 0000C65C 00000DAC  00019CC8 00001255

This example of the SHOW DUMP/SUMMARY command gives a summary of the dump.

SDA> SHOW DUMP/HEADER
Dump header
-----------
    Header field                      Meaning                        Value
--------------------  ---------------------------------------  -----------------
DMP$W_FLAGS           Flags                                                 0FC1
                       DMP$V_OLDDUMP:    Dump has been analyzed
                       DMP$V_WRITECOMP:  Dump write was completed
                       DMP$V_ERRLOGCOMP: Error log buffers written
                       DMP$V_DUMP_STYLE: Selective dump
                                         Verbose messages
                                         Dump off system disk
                                         Compressed
DMP$B_FLAGS2          Additional flags                                        09
                       DMP$V_COMPRESSED: Dump is compressed
                       DMP$V_ALPHADUMP:  This is an OpenVMS Alpha dump
DMP$Q_SYSIDENT        System version                                  "X69G-FT1"
DMP$Q_LINKTIME        Base image link date/time        " 8-JUN-1996 02:07:27.31"
DMP$L_SYSVER          Base image version                                03000000
DMP$W_DUMPVER         Dump version                                          0704
DMP$L_DUMPBLOCKCNT    Count of blocks dumped for memory                 0000D3D5
DMP$L_NOCOMPBLOCKCNT  Uncompressed blocks dumped for memory             0001AEEA
DMP$L_SAVEPRCCNT      Number of processes saved                         00000014
   .
   .
   .
EMB$Q_CR_TIME         Crash date/time                  " 3-JUL-1996 09:30:13.36"
EMB$L_CR_CODE         Bugcheck code                                 "SSRVEXCEPT"
EMB$B_CR_SCS_NAME     Node name                                       "SWPCTX  "
EMB$T_CR_HW_NAME      Model name                            "DEC 3000 Model 400"
EMB$T_CR_LNAME        Process name                                      "SYSTEM"
DMP$L_CHECKSUM        Dump header checksum                              439E5E91

This example of the SHOW DUM/HEADER command shows the information in the header.

SHOW EXECUTIVE

Displays the location and size of each loadable image that makes up the executive.

Format

SHOW EXECUTIVE

PARAMETERS

None.

QUALIFIERS

None.

DESCRIPTION

The executive consists of two base images and a number of other executive images.

The base image called SYS$BASE_IMAGE.EXE contains:

The base image called SYS$PUBLIC_VECTORS.EXE contains:

The base images are the pathways to routines and system service procedures in the other executive images.

The SHOW EXECUTIVE command lists the location and size of each executive image. It can enable you to determine whether a given memory address falls within the range occupied by a particular image. (Table SDA-9 describes the contents of each executive image.)

SHOW EXECUTIVE also displays the nonzero length image section base address and length. The base address and length are blank for sliced loadable executive images.

By default, SDA displays each location within an executive image as an offset from the beginning of one of the loadable images; for instance, EXCEPTION+00282. Similarly, those symbols that represent system services point to the transfer routine in SYS$PUBLIC_VECTORS.EXE and not to the actual system service procedure. When tracing the course of a system failure through the listings of modules contained within a given executive image, you may find it useful to load into the SDA symbol table all global symbols and global entry points defined within one or all executive images. See the description of the READ command for additional information.

The SHOW EXECUTIVE command usually shows all components of the executive, as illustrated in the following example. In rare circumstances, you may obtain a partial listing. For instance, once it has loaded the EXCEPTION module (in the INIT phase of system initialization), the system can successfully post a bugcheck exception and save a crash dump before loading all the executive images normally loaded.

Example

SDA> SHOW EXECUTIVE
OpenVMS Alpha Executive Layout
----------------------------
Image                               Base            End             Length       SymVec
SYSWSDRIVER
      Nonpaged read only          802DE000        802DF400        00001400
      Nonpaged read/write         80CB2600        80CB2E00        00000800
      Linked 1-OCT-1995 13:07       LDRIMG        80DEEA00
SYS$IKDRIVER
      Nonpaged read only          802D2000        802DC800        0000A800
      Nonpaged read/write         80CB1000        80CB2600        00001600
      Linked 1-OCT-1995 13:56       LDRIMG        80DE9840
SYS$IMDRIVER
      Nonpaged read only          802CC000        802D0A00        00004A00
      Nonpaged read/write         80CB0400        80CB1000        00000C00
      Linked  1-OCT-1995 13:56      LDRIMG        80DE9580
SYS$INDRIVER
      Nonpaged read only          802BC000        802CAA00        0000EA00
      Nonpaged read/write         80CAF400        80CB0400        00001000
      Linked  1-OCT-1995 13:57      LDRIMG        80DE9100
SYS$RTTDRIVER
      Nonpaged read only          802B8000        802BB600        00003600
      Nonpaged read/write         80CAEA00        80CAF400        00000A00
      Linked 30-SEP-1995 22:17      LDRIMG        80DE4A00
SYS$CTDRIVER
      Nonpaged read only          802AC000        802B6C00        0000AC00
      Nonpaged read/write         80CACE00        80CAEA00        00001C00
      Linked 30-SEP-1995 22:10      LDRIMG        80DE4440
NDDRIVER
      Nonpaged read only          802A8000        802AB600        00003600
      Nonpaged read/write         80CAC400        80CAC300        00000A00
      Linked 30-SEP-1995 22:14      LDRIMG        80D143CO
NETDRIVER
      Nonpaged read only          80290000        802A7800        00017800
      nonpaged read/write         80CA9A00        80CAC400        00002A00
      Paged read only             8028E000        8028E200        00000200
      Linked 30-SEP-1995 22:12      LDRIMG        80D13E80
SYS$SODRIVER
      Nonpaged read only          8028A000        8028DC00        00003C00
      Nonpaged read/write         80CA8800        80CA9A00        00001200
      Linked 30-SEP-1995 22:14      LDRIMG        80DBEAC0
SYS$YRDRIVER
      Nonpaged read only          80282000        80288200        00006200

The SHOW EXECUTIVE command displays the location and length of executive images.

SHOW GLOBAL_SECTION_TABLE

Displays information contained in the global section table.

Format

SHOW GLOBAL_SECTION_TABLE or SHOW GST [/QUALIFIER]

PARAMETER

None

QUALIFIERS

/SECTION_INDEX=n

Displays only the global section table entry for the specified section.

DESCRIPTION

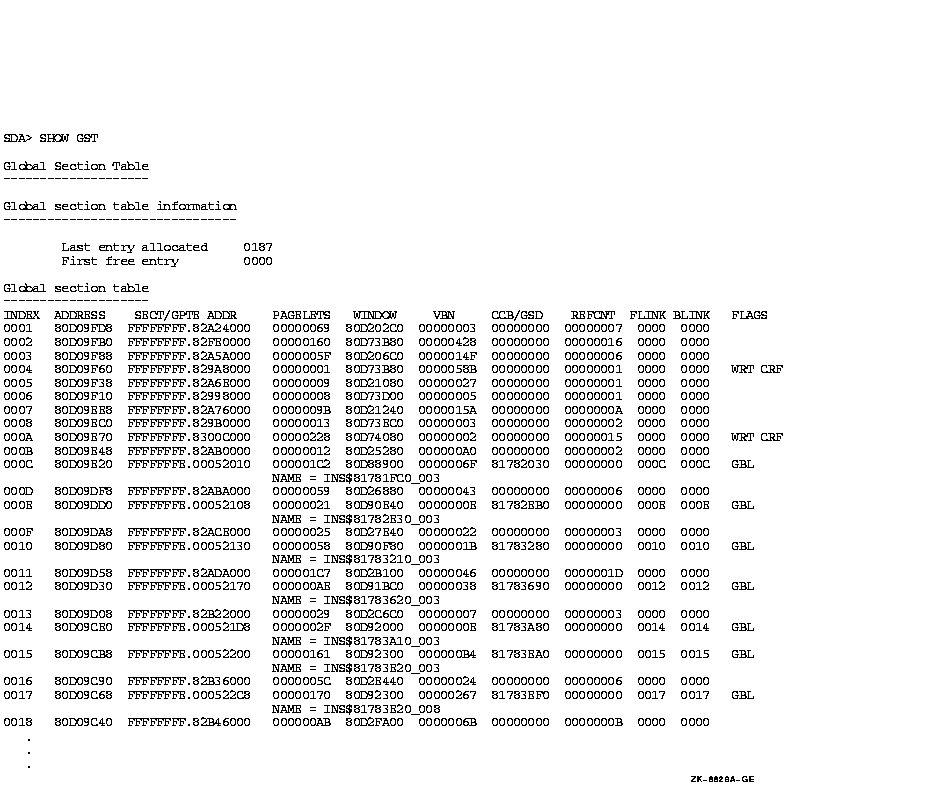

Displays the entire contents of the global section table, unless the qualifier /SECTION_INDEX is specified. This command is equivalent to SHOW PROCESS/PROCESS_SECTION_TABLE/SYSTEM. See the SHOW PROCESS command and Table SDA-26 for more information.

SHOW GSD

Displays information contained in the global section descriptors.

Format

SHOW GSD [/QUALIFIERS]

PARAMETER

None

QUALIFIERS

/ADDRESS=n

Displays a specific global section descriptor entry, given its address.

/ALL

Displays information in all the global section descriptors; that is, the system, group, and deleted global section descriptors. This qualifier is the default.

/SYSTEM

Displays information in the system global section descriptors.

/GROUP

Displays information in the group global section descriptors.

/DELETED

Displays information in the deleted (that is, delete pending) global section descriptors.

DESCRIPTION

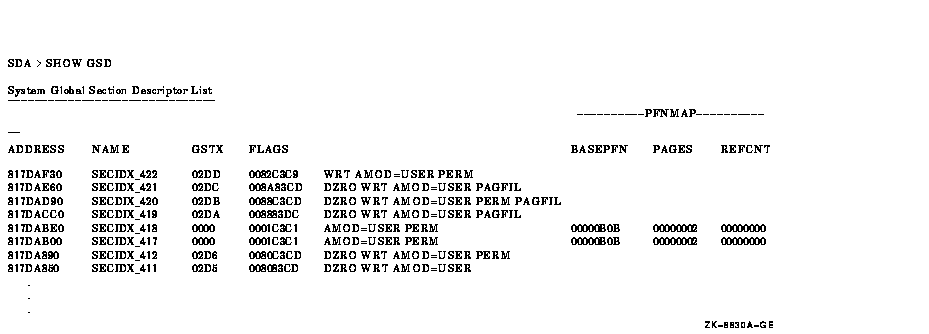

The SHOW GSD displays information that resides in the global section descriptors. Table SDA-11 shows the fields and their meaning.

Table SDA-11 GSD Fields
Field Meaning
ADDRESS Gives the address of the global section descriptor.
NAME Gives the name of the global section.
GSTX Gives the global section table index.
FLAGS Gives the settings of flags for specified global section, as a hexadecimal number, then key flag bits are also displayed by name.
BASEPFN+ Gives physical page frame number at which the section starts.
PAGES+ Gives number of pages (not pagelets) in section.
REFCNT+ Gives number of times this global section is mapped.

+This field only applies to PFN mapped global sections.

SHOW HEADER

Displays the header of the dump file.

Format

SHOW HEADER

PARAMETERS

None.

QUALIFIERS

None.

DESCRIPTION

The SHOW HEADER command produces a 10-column display, each line of which displays both the hexadecimal and ASCII representation of the contents of the dump file header in 32-byte intervals. Thus, the first eight columns, when read right to left, represent the hexadecimal contents of 32 bytes of the header; the ninth column, when read left to right, records the ASCII equivalent of the contents. (Note that the period [.] in this column indicates an ASCII character that cannot be displayed.)

After it displays the contents of the first header block, the SHOW HEADER command displays the hexadecimal contents of the saved error log buffers.

See the OpenVMS AXP Internals and Data Structures manual for a discussion of the information contained in the dump file header.

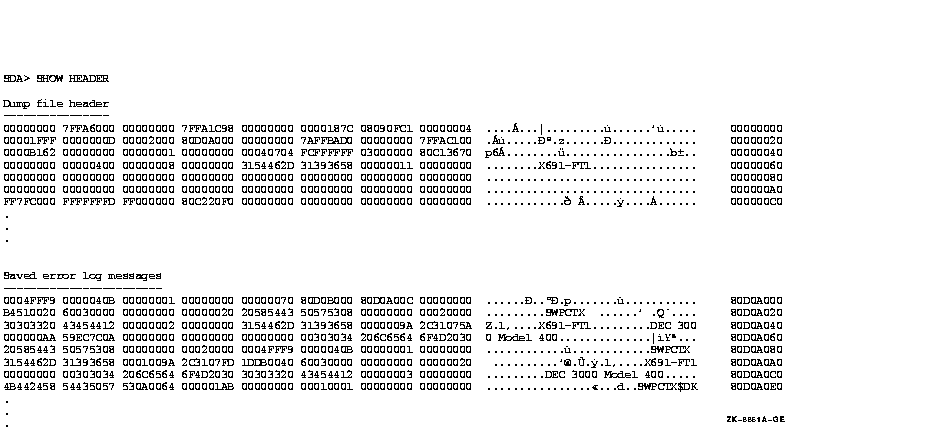

The SHOW HEADER command displays the contents of the dump file's header. Ellipses indicate hexadecimal information omitted from the display.

SHOW LAN

Displays information contained in various local area network (LAN) data structures.

Format

SHOW LAN [/qualifier[,...]]

PARAMETERS

None.

QUALIFIERS

/CLIENT=name

Specifies that information be displayed for the specified client. Valid client designators are SCA, DECNET, LAT, MOPRC, TCPIP, DIAG, ELN, BIOS, LAST, USER, ARP, MOPDL, LOOP, BRIDGE, DNAME, ENCRY, DTIME, and LTM. The /CLIENT, /DEVICE, and /UNIT qualifiers are synonymous and mutually exclusive.

/CLUEXIT

Specifies that cluster protocol information be displayed.

/COUNTERS

Specifies that the LAN station block (LSB) and unit control block (UCB) counters be displayed.

/CSMACD

Specifies that Carrier Sense Multiple Access with Collision Detect (CSMA/CD) information for the LAN be displayed. By default, both CSMA/CD and Fiber Distributed Data Interface (FDDI) information is displayed.

/DEVICE=name

Specifies that information be displayed for the specified device, unit, or client. For each LAN adapter on the system there is one device and multiple users of that device called units or clients. Device designators are specified in the format XXdn, where XX is the type of device, d is the device letter, and n is the unit number. The device letter and unit number are optional. The first unit, which is always present, is the template unit. These are specified as indicated in this example, for a DEMNA which is called EX:

Previous | Next | Contents | [Home] | [Comments] | [Ordering info] | [Help]

[HR]

  6135P008.HTM
  OSSG Documentation
  22-NOV-1996 14:11:58.20

Copyright © Digital Equipment Corporation 1996. All Rights Reserved.

Legal
