DECnet-Plus
Network Control Language Reference

22.5 session control proxy (Digital UNIX)

applications

Default: None

Value: Set of simple name

Set of application identifiers, one of which must match the application requested. If this attribute value is null, any requested application will match.

source end users

Default: None

Value: Set of record

Set of remote end users for whom this proxy entry applies. An unspecified end user implies all end users on the node specified in the same record. The record format has two fields: node which has a data type of fullname, and end user which has a data type of enduserspecification.

target user

Default: None

Value: Latin1String

Local user name under which access is granted.

type

Default: Explicit

Value: Explicit or default

Type of proxy entry: explicit means that the destination the user requested in the connect request must match the target user for this entry; default means if no explicit entry matches, this entry will be tried. An explicit proxy entry matches before a default one.

creation time

Time the entity was created and associated counter attributes were zero.

used

Number of times this proxy entry was used to gain access to one of the applications.

name

Simple name assigned to a particular entity instance. The name is the management identifier for the proxy database entry and is kept unique among the entries in this database maintained by Session Control.

last time used

Last time this proxy entry was used to gain access to one of the applications.

For create:

already exists

A session control proxy entity already exists.

22.6 session control tower maintenance

update

Updates tower maintenance entity.

creation time

Time this entity was created.

update failures

Number of times this entity detected an update failure event.

update successes

Number of times the DNA$Towers attribute of the DECdns object name associated with this entity has been successfully updated.

name

Full-name assigned to the tower maintenance entity when it is created.

client

Network management name of the user who issued the keepmehere call that resulted in the creation of this entity.

higher towers

Set of higher towers that was passed in the keepmehere call that created this entity.

last failure exception (Digital UNIX)

Reason for the most recent update failure. If no update for this subentity ever failed, then it is zero.

last failure reason

DECdns error code that indicates the reason for the last update failure.

last successful update

Time of the last successful update to the DNA$Towers attribute for the specified entity. On OpenVMS, if no update for this subentity ever failed, then it is zero.

last update completed

Time that the last attempt to update the DNA$Towers attribute completed (successfully or not).

last update started

Time that the last attempt to update the DNA$Towers attribute for the specified entity was initiated.

uid

Entity's unique identifier, which is generated when the entity is created.

user (Digital UNIX)

User name of the user who created this tower maintenance subentity with the keepmehere procedure call. This is different from client, which refers to a local entity name.

update failure

Generated each time an attempt to update a DNA$Towers attribute fails.

22.7 session control transport service

These arguments apply only to the create directive.

protocol protocol-id

Transport protocol to be used by this transport service.

'04'H	This transport service uses the NSP transport protocol.
'05'H	This transport service uses version 1 of the OSI transport protocol.

tsel hex-string

Transport selector used by the OSI transport module to bind incoming connection requests to Session Control. The default value is the hexadecimal representation of "DEC0." This argument is not applicable for NSP transport.

creation time

Time the entity was created.

name

Simple name assigned to the transport service when it is created.

protocol

Transport protocol used by this transport service, as specified by the user when this service was created. (See the create command description for a list of possible values.)

tsel

Transport selector used by the OSI Transport Module to bind incoming connection requests to Session Control. For Digital UNIX, The TSEL value is specified in a create command. This attribute is not applicable for NSP transport.

For create:

already exists

The session control transport service entity already exists.

duplicate protocol

The session control transport service entity fails on creation because the protocol already exists.

protocol not supported

The session control transport service entity fails on creation because the protocol is not supported by this module.

wrong state (Digital UNIX)

This entity cannot be deleted while there are connections using this transport.

This chapter describes all the commands you can use to manage the entities that constitute the IEEE 802.5/Token Ring module. The Token Ring module implements one of multiple possible Link level/Physical level modules in the OSI layered architecture model.

The DNA IEEE 802.5/Token Ring Data Link provides either a 4- or 16-Mb/s local area network (LAN). It provides communication services for multiple concurrent users. The services provided are logical link control (LLC), mapped Ethernet and station management (SMT) services.

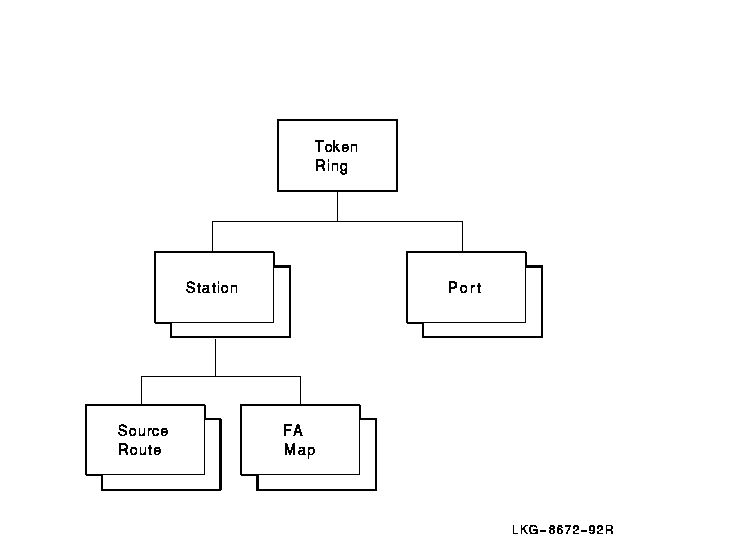

Figure 23-1 shows the hierarchical relationship of the entities that constitute the Token Ring module.

Figure 23-1 Hierarchy of Token Ring Module Entities

The DNA IEEE 802.5/Token Ring module incorporates the functions and operations defined in the IEEE 802.5 Token Ring Access Method, parts of the ISO 8802-1 (IEEE 802.1) Addressing, Internetworking and Network Management, and parts of the ISO 8802-2 (IEEE 802.2) Logical Link Control (LLC) specifications. To this, the DNA 802.5/Token Ring Data Link adds features often needed by users of the data link. A typical such user is the Network layer of the Digital Network Architecture (DNA).

23.1 token ring

version

Default: Current version number

Version number of the Token Ring architecture specification to which the implementation conforms. You cannot modify this characteristic.

For create:

already exists

A token ring entity already exists.

For delete:

has children

Cannot delete while subentities exist.

23.2 token ring station

communication port device-name

A Digital UNIX device name to assign to this station. The name must be in the format ddn, where dd is the device name prefix and n is the device number.

Device	device-name
DETRA	tra0

mode station-mode

The mode this station will be enabled to. Can be either normal (default) or loopback.

transparent source routing function-mode

Indicates whether the transparent source routing functionality will be enabled. The default is enabled. This value cannot be disabled.

aging timeout

Default: 60 seconds

Value: 1--65535

Controls the timeout of the source routing information for nodes with which the local node has not recently communicated.

communication port

Name of the hardware port associated with this station, taken from the corresponding argument in the create directive. You cannot modify this characteristic.

discovery timeout

Default: 1 second

Value: 1--255

Controls the timeout of the source routing discovery process.

etr

Default: True

Value: True or false

Determines if Early Token Release (ETR) is in use on this station. ETR may be supported only on 16-Mb/s media. This attribute can only be set in the off state.

maximum source routes

Default: 1024

Value: 256--2048

The maximum number of source route subentities this station will buffer. Can only be set in the off state.

monitor contender

Default: False

Value: True or false

Determines if the station will try to become the active monitor, if a lower addressed station starts the monitor contention process. This attribute can only be set in the off state.

ring speed

Default: Unknown

Value: 4 or 16 Mbps

The data rate of the media. Can only be set in the off state.

station address

Default: Hardware ROM address

Value: None

The desired station address. The bits in each byte of an address must be reversed, for example, 08-00-2b-11-22-33 would become 10-00-d4-88-44-cc. This attribute can only be set in the off state.

Unless stated otherwise, counts include both normal and multicast traffic and all protocol types, service access points (SAPs), and protocol identifiers.

abort delimiters sent

Number of times an abort delimiter was sent while transmitting.

auto-removal failures

Number of times a failure during the beacon auto-removal process was detected and the station removed itself from the ring.

burst errors

Number of times a lack of transitions was detected on the physical media.

creation time

Time at which the station entity was created.

explorer frames received

Number of source routing (SR) explorer frames received by the source route entities.

explorer frames sent

Number of source routing (SR) explorer frames sent by the source route entities.

frame copied errors

Number of individually addressed frames received with the Address Recognized status bit = 1.

frequency errors

Number of times an error was detected in the incoming signal frequency.

insertion failures

Number of times a ring insertion operation has failed.

internal errors

Number of times a recoverable internal error was recognized.

line errors

Number of times a CRC error or a non-data symbol in a frame or token with the E bit = 0 was detected.

lobe wire faults

Number of times an open or shorted lobe data path was detected and the station removed itself from the ring.

lost frames

Number of times this station has transmitted a frame and has failed to receive it for stripping before the Timer Return to Repeat (TRR) timer expired.

multicast octets received

Number of octets successfully received in multicast frames of type LLC. (The count does not include the MAC envelope.)

multicast octets sent

Number of octets successfully sent in multicast frames of type LLC. (The count does not include the MAC envelope.)

multicast pdus received

Number of multicast frames successfully received of type LLC.

multicast pdus sent

Number of multicast frames successfully sent of type LLC.

octets received

Number of octets successfully received in frames of type LLC.

octets sent

Number of octets successfully sent in frames of type LLC.

pdus received

Number of frames successfully received of type LLC.

pdus sent

Number of frames successfully sent of type LLC.

receive data overruns

Number of times a frame was lost due to system or adapter transfer failure.

receiver congestions

Number of frames recognized as matching one of this station's individual, group, or functional addresses, but could not be received for lack of buffers in the adapter.

remove frames received

Number of times a remove MAC frame has been received and the station removed itself from the ring.

ring beaconings

Number of times the condition of receiving or transmitted beacon frames was detected due to a hard error.

ring failures

Number of times the station left the ring due to failure.

ring recoveries

Number of times detected the ring is in the monitor contention process. Indicates that the ring has attempted to recover from a soft error problem.

ring poll errors

Number of times an error was detected in the A and C bits during the ring poll process.

route discovery failures

Number of times the route discovery process failed to find a route to another station.

selftest failures

Total number of times a self-test of the station detected an error.

signal losses

Number of times detected loss of signal on the physical media.

single station conditions

Number of times detected being the only station in the ring.

soft error reports sent

Number of times sent a report error MAC frame to the ring error monitor.

unavailable station buffers

Number of times a frame was discarded because no station level buffers were available.

unavailable user buffers

Number of times a frame was discarded because no user buffer was available.

unrecognized individual destination pdus

Number of times a received individually addressed LLC frame was discarded because there was no data link port with a matching SAP, SNAP PID, or Ethernet protocol type.

unrecognized multicast destination pdus

Number of times a received LLC frame addressed to an enabled group or functional address was discarded because there was no data link port with a matching SAP, SNAP PID, or Ethernet protocol type.

token errors

Number of times when this station (when Active Monitor (AM)) has transmitted a new token due to errors on the ring.

transmit failures

Number of times a transmit error, other than underrun occurred. Transmit error reasons can be tracked by event reasons, or by observing other 802.5 counters.

transmit underruns

Number of times a transmit underrun occurred.

transmitting beacons

Number of times initiated transmitting beacon frames.

name

Simple name assigned to the station when it is created.

authorized access priority

The maximum transmit priority allowed for this station. The value is set by the ring parameter server.

authorized function classes

The bit map of the authorized function classes for this station.

functional address

The functional address bit map enabled in the adapter for the reception on this station.

group addresses

The set of group addresses enabled in the adapter for reception on this station.

insert error reason

Reason code for an insertion error if there was a failure to insert into the ring, or insertion successful if no error.

no open	An error occurred during the insertion phase.
bad parameters	Invalid options specified to the adapter to insert into the ring.
lobe fault	Lobe test fault or MAC frames were received before physical insertion.
signal loss	Signal loss condition was detected during the insertion phase.
timeout	Logical insertion onto the ring failed before insertion timer expired.
ring failure	Unable to receive its own ring purge MAC frames after becoming the active monitor.
ring beaconing	A beacon MAC frame was received after physical insertion onto the ring.
duplicate address	Another station on the ring already has the address this station wishes to use.
parameter server error	A ring parameter server (RPS) is present on the ring but does not respond to a request initialization MAC frame.
remove frame received	A remove station MAC frame was received during the insertion process.
insertion successful	The insertion phase was successful.

link state

Data link state of this ring station.

off	Station is not on the ring.
running	Station is available to the user for processing.
initializing	Station is in process of inserting into the ring.
recovery	Station is beaconing.
contending	Station is participating in the monitor contention process.
broken	Station has failed the insertion process.

MAC address

The currently active station address value for which the data link is receiving an individually addressed frame.

nearest upstream neighbor

The MAC address of the last known upstream ring neighbor as heard from the ring poll process.

physical drop number

The physical drop number assigned by the ring parameter server.

receive mode

The receive mode of the station. Normal or promiscuous.

ring error reason

Reason code for the most recent ring error detected by this station or no error if none has occurred.

no error	Successful operation, no error has occurred.
ring in recovery	Claim token MAC frames were observed on the ring.
single station	It sensed this is the only station on the ring.
remove frame received	A remove ring station MAC frame request was received and the station has deinserted from the ring.
auto-removal failure	The auto-removal process has failed and the station has deinserted from the ring.
lobe fault	An open or short circuit in the lobe wire cable was detected.
transmitting beacon	Beacon frames are transmitted to the ring.
soft error frame sent	A report error MAC frame has been transmitted.
beaconing condition	Beacon frames are presently transmitted or received to or from the ring.
signal loss	A loss of signal was detected on the ring.
open in progress	Station is in process of inserting into the ring.

ring number

The local ring number as received from the ring parameter server.

ROM address

The IEEE universally administered address present in the ROM of the adapter.

transparent source routing

State of transparent source routing support.

state

Operational state of the station.

uid

Entity's unique identifier, which is generated when the entity is created.

abort delimiter sent

Station has transmitted an abort delimiter.

auto-removal failure

Self-test failed following a beacon auto-removal process.

burst error

Absence of transitions on the physical media.

frame copied error

This station received a frame addressed to its MAC address with the A and C bits set.

internal error

Station has detected an internal error.

line error

CRC error or Manchester violation detected in a token or frame with the E bit = 0.

lobe wire fault

Short or open circuit detected on cable.

lost frame error

TRR timer expired while this station was transmitting.

receive data overrun

A receive overrun hardware error was detected.

remove frame received

Remove ring station MAC frame received.

ring beacon initiated

The station started the beacon process.

ring beaconing

Beacon MAC frames being sent or received.

ring poll error

Failure to properly set A and C bits during the ring poll process.

ring recovery

Station is receiving or transmitting claim token MAC frames.

route discovery failure

Route discover timer expired.

selftest failure

The implementation-specific self-test procedures have detected a failure.

signal loss

Loss of signal on the physical media.

single station detected

The only station participating in the ring poll process.

soft errors reported

Soft error report MAC frame sent to ring error monitor.

station buffer unavailable

No buffer was available to receive a frame.

token error

This station, as active monitor, has had to transmit a new token following an error condition.

transmit failed

Failure to transmit operation other than underrun.

transmit underrun

Transmit failed due to underrun.

unrecognized individual pdu destination

An individually addressed frame with unrecognized DSAP or protocol ID.

unrecognized multicast pdu destination

A globally addressed frame with unrecognized DSAP or protocol ID.

user buffer unavailable

Data link user did not supply a receive buffer.

For create:

already exists

A token ring station entity already exists.

communication port in use

A communication port is already reserved by another entity.

invalid communication port

Cannot run Token Ring data link on this communication port.

---

Previous | Next | Contents | [Home] | [Comments] | [Ordering info] | [Help]

---

  NCL_PROFILE_028.HTML
  OSSG Documentation
   2-DEC-1996 12:48:43.83

Copyright © Digital Equipment Corporation 1996. All Rights Reserved.

Legal
