The PWIP interface is currently supported in the products listed below. Contact the vendor for the required versions of their product.
When DECnet over TCP/IP has successfully completed a listen on the defined rfc1006 listener ports, you will see the following OPCOM message in the OPERATOR.LOG file for each TCP Listen Port:
%%%%%%%%%%% OPCOM 30-MAR-1995 11:25:46.74 %%%%%%%%%%% Message from user TPCONS on YPP4 -- TPCONS: Listen to PWIP Done
To configure your system so you can use DECnet over TCP/IP or OSI applications over TCP/IP, use Option 4 of the advanced configuration procedure (NET$CONFIGURE.COM ADVANCED), as explained in DECnet-Plus for OpenVMS Applications Installation and Advanced Configuration. You can then create a new OSI transport NCL script (or replace an old script). You must also include Domain in your session control naming search path as described in Section 5.1.1.
Use Option 4 as well for creating templates in addition to the default RFC 1006 template.
You must rename your node using a Domain secondary node name. Use Option 2 of the advanced configuration procedure to do this.
For the changes to take effect, either disable the osi transportentity and invoke the new OSI transport NCL script, or reboot the system.
ncl> disable osi transport ncl> do sys$manager:net$osi_transport_startup.ncl
When configuring RFC 1006, RFC 1859, or both on OpenVMS systems, each element in the set of rfc1006 listener portsattribute corresponds to a TCP listener port. By default, NET$CONFIGURE sets the osi transport rfc1006 listener portsattribute to { 102, 399 }.
The rfc1006 port numberattribute of the osi transport templatesubentity must contain a TCP port number that is one of the chosen rfc1006 listener ports. The default value for the rfc1006 port number attribute is 102. If you create an osi transport templatesubentity to use with DECnet over TCP/IP (using RFC 1859), then set the rfc1006 port numberattribute to 399.
On OpenVMS systems, DECnet-Plus will only try to locate TCP/IP if the rfc1006 listener ports attribute set of the osi transportentity is not empty.
To disable DECnet over TCP/IP, issue the following command:
ncl> set osi transport rfc1006 listener ports {}
CTF can be used to trace all PDUs transmitted and received by DECnet over TCP/IP and OSI applications. See Appendix A in the DECnet/OSI for VMS CTF Use for a list of events that are recognized at this trace point.
Use the following command to invoke the CTF tracing utility:
$ TRACE START "trace-point"
where trace-point is the trace point to be started, such as "TPCONS TPKT *".
If you have problems getting DECnet over TCP/IP to start up properly, check the following:
ncl> show osi transport template * with network service = rfc1006
$ ucx show device
Port Remote
Device_socket Type Local Remote Service Host
bg3 STREAM 23 0 TALENT 0.0.0.0
bg4 DGRAM 520 0 0.0.0.0
bg7 STREAM 399 0 0.0.0.0
bg9 STREAM 102 0 0.0.0.0
If IP addresses work but IP names do not, use your TCP/IP management tool to verify that your BIND server knows about the name.
You can audit incoming connections for those connections that are made using DECnet over TCP/IP. The audit alarm is displayed as follows:
%%%%%%%%%%% OPCOM 9-FEB-1995 12:26:11.64 %%%%%%%%%%% Message from user AUDIT$SERVER on PETERB Security alarm (SECURITY) and security audit (SECURITY) on PETERB, system id: 12 331 Auditable event: DECnet logical link created Event time: 9-FEB-1995 12:26:11.59 PID: 000000A6 Process name: FAL_14010028 Username: SYSTEM Process owner: [1,3] Image name: SYS$COMMON:[SYSEXE]FAL.EXE Remote node id: 1560286224 Remote node fullname: MYNODE.LKG.ACME.COM Remote username: CAISSON DECnet logical link ID: 335609896 DECnet object name: FAL
DECnet over TCP/IP allows you to use fully qualified domain names in your OpenVMS proxy database. For example:
UAF> add/proxy mynode.lkg.acme.com::caisson caisson/default
A node can have more than one full name for a node. This means that proxy records for each of the possible node names need to be added using the Authorize utility. For example, if your system is set up to use both DECdns and BIND (and you can see a remote node's name as either of these), then you need to add proxy records for both nodes. To represent the remote node stir, you would need to add these proxy records: STIR.ENET.ACME.COMand DEC:.ZKO.STIR.
You can manage session control by adding network applications, deleting network connections, and deleting network entities.
The following example shows how to add a session control network application (which was known as a session control object in Phase IV):
ncl> create session control application application-name
ncl> set session control application application-name -
_ncl> image name image-name -
_ncl> user name user-name -
_ncl> data abstraction {message} -
_ncl> accept mode {deferred } -
_ncl> programming interface {Phase IV} -
_ncl> address {number = nn,....} (1)
ncl> set session control application mail addresses {number=27}
Table 8-8 maps NCP characteristics to NCL attributes.
| NCP Characteristic | NCL Attribute |
|---|---|
| user | user name |
| file | image name |
| number | address |
You can selectively delete connections on a local system while the network is running. For example:
ncl> delete session control port port-name
If after deleting any child entities of session control, such as the osi portand nspentities, you create them again, you must use NCL to notify session control that the previously disabled entities are available again. Sections 8.6.3.1 and 8.6.3.2 show the commands to use to delete and recreate the osi and nspentities.
If the osi transportentity is deleted and subsequently recreated, you must issue the following directives to inform DNA session control that the OSI transport service is available:
ncl> delete session control transport service osi ncl> create session control transport service osi protocol %x05
You cannot issue the delete session control transport service osi command while osi portentities exist.
If the nsp entity is deleted and subsequently recreated, you must issue the following directives to inform DNA session control that the NSP transport service is available:
ncl> delete session control transport service nsp ncl> create session control transport service nsp protocol %x04
You cannot issue the delete session control transport service nsp command while nsp portentities exist.
Open System Application Kernel (OSAK) is Digital's implementation of the OSI upper layers. It provides OSI session, presentation and application services. These services are used by OSI applications such as FTAM and VT. You must use NCL to manage the OSAK software on your system. For further details of the NCL commands to use, refer to the DECnet-Plus Network Control Language Reference manual.

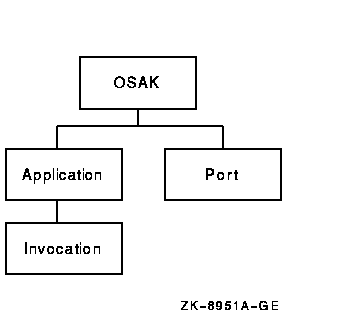

Figure 8-8 shows the osak entity and its subentities.
Figure 8-8 osak Entity
You can implement your OSI application using either of two types of application address: active or passive.
An active address is associated with a process that is already started on the system. A passive address is associated with a process that is started only when a connection request is received for that address.
Note
Passive application functionality requires the OSAK server component, which is available only on OpenVMS systems.
You cannot actively manage active addresses; NCL creates the necessary management entities when OSAK sends or receives an appropriate programming call. You use NCL to register passive addresses. This section describes how to register active and passive addresses.
Active
An application registers an active address by passing that address on a call to osak_open_responder or osak_open_initiator. NCL creates the appropriate entities. You can use the NCL show command to show attributes of these entities.
Passive
You register an application address using Network Control Language (NCL) commands to create an osak application entity and an osak application invocation entity. Use the startup information attribute of the osak application invocation entity to specify the values in Table 8-9.
| Item | Value | Description |
|---|---|---|
| Mandatory | ||
| user | name | The user name of the process that will respond to Connect requests received by this application |
| file | pathname | The name of the file to run to start up the named application |
| Optional | ||
| account | name | The account that is to start the process |
| max resp | integer | The highest permissible number of responders, for an application with the NEW setting for startup policy |
| password | password | The user's password |
| sversion | {1}, {2}, or {1,2} | The session version |
Further Information
For more information about the OSAK module, refer to the DECnet-Plus Network Control Language Reference manual.
OSAK maintains two databases: the application database and the port database. You must use NCL to inspect information held in the OSAK databases and to set attributes of entities in the OSAK module. Table 8-10 shows the mapping between NCL and OSAK management.
| OSAK Database | NCL Entity |
|---|---|
| Application database |
osak application
and osak application invocation |
| Port database | osak port |
This section describes how you can check that the OSAK component of DECnet-Plus is working correctly and support OSI applications that are running over this component.
Note
To check whether an OSI application runs over the OSAK component of DECnet-Plus, refer to the documentation for that application.
The best indication that the OSAK component is working normally is when any OSI application you are running behaves predictably and efficiently. However, there are tasks you can complete at convenient intervals to monitor the working of the software:
To check the number of connections, releases, and aborts that occur while your application is running, look at the values of the OSAK counters. You can discover what is normal for your application over a period of time; abnormal values may then be an indication that something is going wrong.
You can display the values of all the OSAK counters by using the following NCL command:
ncl> show [node node_id] osak all counters
You can display the value of a specified OSAK counter by using the following command:
ncl> show [node node_id] osak counter_name
where
| node_id | The identifier of the node on which the osak entity resides |
| counter_name | The name of the counter whose value you want to check |
You can monitor the occurrence of events, and find out the rate of occurrence that is normal and acceptable for the application you are running. A more frequent occurrence might be an indication that the application you are running is not working properly.
See Chapter 12 for information about the DECnet-Plus event dispatching facility.
You can display the following information, which may help you to check that your application is running as you expect it to:
ncl> show [node node_id] osak port *
ncl> show [node node_id] osak port port_id all
ncl> show [node node_id] osak port *, - _ncl> with connection state = awaiting_inbound_connection
DECnet-Plus and the software products that implement X.25 are packaged separately. They can be used independently on the same system.
DECnet-Plus for OpenVMS supports the following approaches for configuring and using the features of X.25 products:
These approaches are completely optional, but might be desirable for use with certain applications or for particular network configurations. They can function individually or together on the same system.
The Connection-Oriented Network Service (CONS) is an ISO specification for a reliable and transparent end-to-end data transfer function. OSI transport can use CONS in addition to the Connectionless-Mode Network Service (CLNS) implemented by DNA routing.
Note that applications using OSI transport (for example, FTAM or Virtual Terminal) need to be configured to operate over CONS before they can use CONS functionality.
Applications using routing over X.25 circuits do not require any special configuration. X.25 serves as another communications path from the local end system to the remote sytem.
Once X.25 has been installed, you can use the DECnet-Plus configuration procedure (NET$CONFIGURE.COM) to first configure X.25 and then configure DECnet over X.25. You can use either the basic or advanced configuration option.
See DECnet-Plus for OpenVMS Applications Installation and Advanced Configuration for more information about configuring X.25 support on DECnet-Plus for OpenVMS systems.
Full details on how to configure the X.25 product are provided in the X.25 for OpenVMS documentation. This guide is available in a separate kit. Refer to the Software Product Description (SPD) for appropriate part numbers to use for ordering the X.25 kit.
The details of each type of configuration are described in Section 8.5.2.3 (OSI Transport using CONS) and Section 8.8.3.2 (for routing using X.25).
Digital strongly recommends that you configure and test both DECnet-Plus and X.25 independently before attempting to configure DECnet-Plus to use X.25.

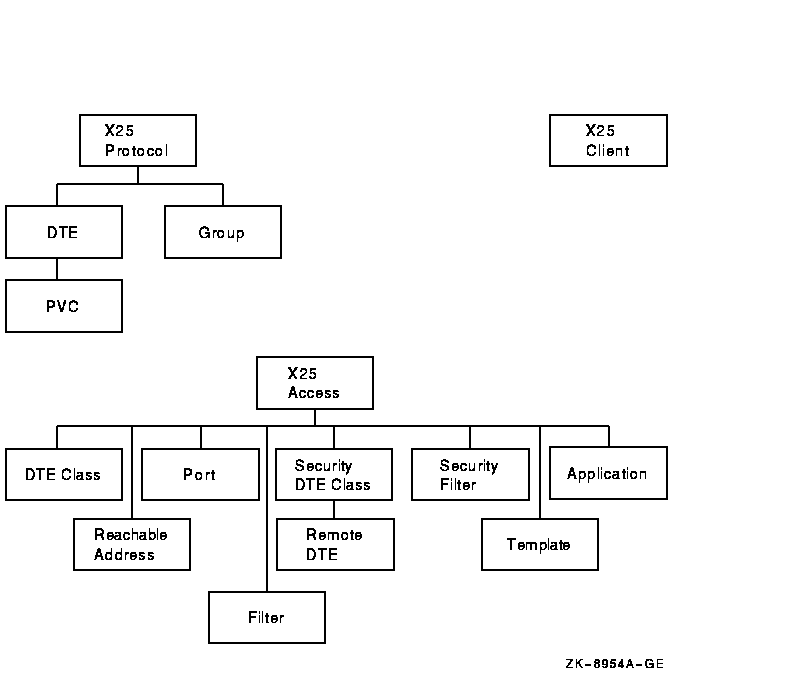

Figure 8-9 shows the x25 protocol entity and its subentities.
Figure 8-9 x25 protocol Entity
This section describes issues concerning configuration of X.25 CONS with OSI transport.
Addressing mechanisms and their uses are significantly different between CONS and CLNS. This section describes the addressing mechanisms for CONS that you need to understand for configuring OSI applications using the X.25 CONS protocol stack.
OSI Application Address
An OSI application address is composed of an application entity title (AE-Title), a presentation selector (PSEL), a session selector (SSEL), a transport selector (TSEL), and a network service access point (NSAP). Each of these parts corresponds to a layer of the OSI protocol stack as shown in Figure 8-10. The datalink and physical layers are not shown in this figure. The application does not specify their addresses directly.

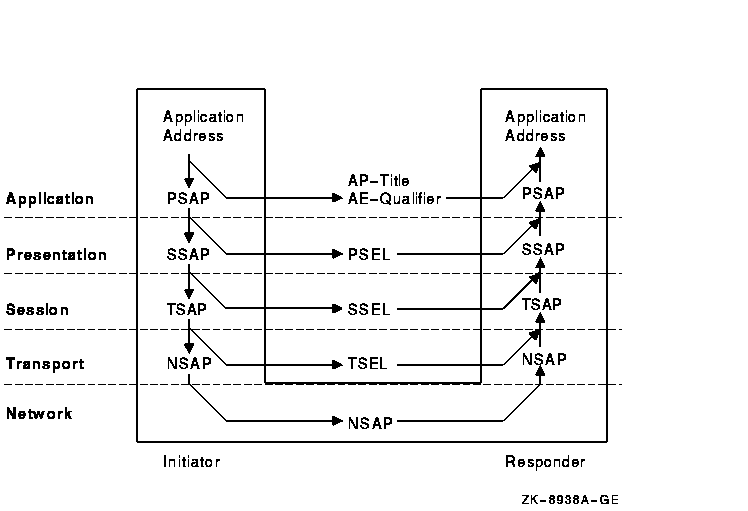

Figure 8-10 OSI Application Address Model
Some OSI application entities (such as FTAM) defined in the ISO specifications and described here include the association control service element (ACSE). DECnet-Plus implements ACSE in its OSAK component, independently of the rest of the OSI application entity.
An OSI application entity transfers calling and called application process (AP) titles and application entity (AE) qualifiers in ACSE PDUs. The uses of AP-Titles and AE-Qualifiers are application specific. For example, the FTAM and VT specifications do not define their use. The ISO specifications do not define their use. Digital's FTAM and VT implementations ignore the AP-Titles and AE-Qualifiers. Other vendors' products may check them to ensure they contain specific predefined values. An OSI application specifies addresses to the Presentation layer in the form of presentation service access points (PSAPs). The Presentation layer strips the PSEL for transfer in Presentation PDUs. It passes the remaining portion, the session service access point (SSAP), down to the Session layer. The Session layer strips the SSEL, leaving the transport service access point (TSAP) for Transport. This process continues down to the Network layer.
