OpenVMS System Management Utilities Reference Manual

The recording file is created when a MONITOR request is initiated, and is closed when the request terminates. The MONITOR recording file may be used as a source file to format and display the data on a terminal, to create a summary file, or to record a new recording file with different characteristics.

Note
The record formats described in this section are subject to change without notice at any future OpenVMS release.

The MONITOR recording file is an OpenVMS RMS sequential file with variable-length records. Each record in the file begins with a 1-byte type field. The remaining fields are different in length and format for each record type. Following are the three categories of record types:

Customer control record
Digital control record
Class record

Customer control records may appear anywhere in the recording file. They are not generated by MONITOR and are ignored by MONITOR when it reads the file.

The first records in the MONITOR recording file, excluding customer control records, are Digital control records. The beginning of the file has three types of Digital control records: the file header record, the system information record, and the record RMS file name record. Node transition records are also control records, but can appear anywhere in the file.

Class records, which contain data on requested performance classes, follow the Digital control records. The class record is generally written once per interval for each class being recorded. An exception to this rule occurs when several class records are required to contain data for a single class over a single interval. This can occur for the PROCESSES class when too many processes exist to be accommodated by the maximum record size.

Unique numbers are assigned to each MONITOR record type. Record type numbers 0--127 are reserved for class records; numbers 128--191 are reserved for Digital control records; numbers 192--255 are reserved for customer control records.

MONITOR generates 29 record types. Table H-1 lists the MONITOR record types and their numbers, with associated class types. (For an explanation of MONITOR class types, refer to Section H.4.1.)

Table H-1 MONITOR Record Types
Record Type Type Number Class Type

File Header 128

System Information 129

Node Transition 130

RMS File Name 131

PROCESSES Class 0 component

STATES Class 1 system

MODES Class 2 component

PAGE Class 3 system

IO Class 4 system

FCP Class 5 system

POOL Class¹ 6 system

LOCK Class 7 system

DECNET Class 8 system

RESERVED 9 system

RESERVED 10 system

FILE_SYSTEM_CACHE Class 11 system

DISK Class 12 component

RESERVED 13 component

DLOCK Class 14 system

SCS Class 15 component

RESERVED 16 system

SYSTEM Class 17 system

RESERVED 18 system

CLUSTER Class 19 system

RMS Class 20 component

MSCP_SERVER Class 21 system

TRANSACTION Class 22 system

VECTOR Class 23 component

VBS Class 24 system

**Table H-1 MONITOR Record Types**
Record Type	Type Number	Class Type
File Header	128
System Information	129
Node Transition	130
RMS File Name	131
PROCESSES Class	0	component
STATES Class	1	system
MODES Class	2	component
PAGE Class	3	system
IO Class	4	system
FCP Class	5	system
POOL Class¹	6	system
LOCK Class	7	system
DECNET Class	8	system
RESERVED	9	system
RESERVED	10	system
FILE_SYSTEM_CACHE Class	11	system
DISK Class	12	component
RESERVED	13	component
DLOCK Class	14	system
SCS Class	15	component
RESERVED	16	system
SYSTEM Class	17	system
RESERVED	18	system
CLUSTER Class	19	system
RMS Class	20	component
MSCP_SERVER Class	21	system
TRANSACTION Class	22	system
VECTOR Class	23	component
VBS Class	24	system

¹POOL class information is available only in pre-Version 6.0 MONITOR recording files.

H.2 Conventions

The following sections define the contents of each field within each record type. Record type and record size are given in decimal representation. References to system time indicate time values in system time format (64-bit format).

The field offset names listed are not defined within MONITOR. However, Digital recommends that you define and use these offset names when you work with MONITOR output records.

Following is the suggested naming convention for the field offset names:

MNR_CCC$X_DDDDD

CCC is a record type or class mnemonic.

X is a 1-letter code indicating the size of the data item, as follows:

B for byte
W for word
L for longword
Q for quadword
O for octaword
T for ASCII string

DDDDD is the name describing the data item.

In the following tables that describe the record fields, the size of the data is shown in parentheses following the description of the field contents.

H.3 Digital Control Records

The four types of Digital control records are:

File header record
System information record
Node transition record
RMS file record

Each file has one header record, which contains information applicable to all classes of performance data contained in the file. It must be the first record (except for customer control records) in the file.

One system information record exists per node per file. The record contains information about the system being monitored and follows the header record in the file.

H.3.1 File Header Record

The file header record has a record type of 128 and a size of 259 bytes. Figure H-1 illustrates the format of the file header record; Table H-2 describes the fields in this record.

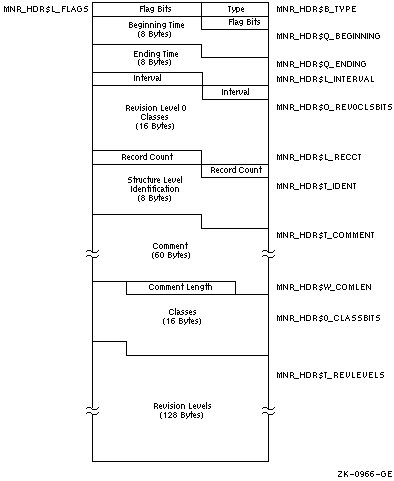

Figure H-1 File Header Record Format

Table H-2 Descriptions of File Header Record Fields
Field Symbolic Offset Contents

Type MNR_HDR$B_TYPE Record type identifier (1 byte).

Flags MNR_HDR$L_FLAGS Total of 32 flag bits; low-order bit = bit 0. All flags reserved to Digital for future use (1 longword).

Beginning Time MNR_HDR$Q_BEGINNING System time of beginning of recording (1 quadword).

Ending Time MNR_HDR$Q_ENDING System time of end of recording (1 quadword).

Interval MNR_HDR$L_INTERVAL Interval in seconds between collections; this is the value specified by the user in the recording request. It is not necessarily equal to the exact interval value obtained by subtracting two consecutive time-stamps for a given class (1 longword).

Revision Level 0 Classes MNR_HDR$O_REV0CLSBITS A 128-bit string representing all classes; a bit set to 1 indicates the presence in this file of a class which is at revision level 0 and whose type number corresponds to the bit number. Low-order bit = bit 0 (1 octaword). This field is provided for compatibility with OpenVMS VAX Version 3.0 files.

Record Count MNR_HDR$L_RECCT Count of all records in the file (1 longword).

Structure Level Identification MNR_HDR$T_IDENT MONITOR Recording File Structure Level Identification (MON30050) (8 bytes).

Comment MNR_HDR$T_COMMENT Recording file description supplied by the user, including trailing blanks (60 bytes).

Comment Length MNR_HDR$W_COMLEN Actual length of recording file description string specified by the user (1 word).

Classes MNR_HDR$O_CLASSBITS A 128-bit string representing all classes; a bit set to 1 indicates the presence in this file of the class whose type number corresponds to the bit number. Low-order bit = bit 0 (1 octaword).

Revision Levels MNR_HDR$T_REVLEVELS A 128-byte string consisting of a 1-byte binary revision level number for each class. A class has a revision level of 0 initially. For each MONITOR release, if the record definition has changed, the revision level will be increased (not necessarily by 1).

**Table H-2 Descriptions of File Header Record Fields**
Field	Symbolic Offset	Contents
Type	MNR_HDR$B_TYPE	Record type identifier (1 byte).
Flags	MNR_HDR$L_FLAGS	Total of 32 flag bits; low-order bit = bit 0. All flags reserved to Digital for future use (1 longword).
Beginning Time	MNR_HDR$Q_BEGINNING	System time of beginning of recording (1 quadword).
Ending Time	MNR_HDR$Q_ENDING	System time of end of recording (1 quadword).
Interval	MNR_HDR$L_INTERVAL	Interval in seconds between collections; this is the value specified by the user in the recording request. It is not necessarily equal to the exact interval value obtained by subtracting two consecutive time-stamps for a given class (1 longword).
Revision Level 0 Classes	MNR_HDR$O_REV0CLSBITS	A 128-bit string representing all classes; a bit set to 1 indicates the presence in this file of a class which is at revision level 0 and whose type number corresponds to the bit number. Low-order bit = bit 0 (1 octaword). This field is provided for compatibility with OpenVMS VAX Version 3.0 files.
Record Count	MNR_HDR$L_RECCT	Count of all records in the file (1 longword).
Structure Level Identification	MNR_HDR$T_IDENT	MONITOR Recording File Structure Level Identification (MON30050) (8 bytes).
Comment	MNR_HDR$T_COMMENT	Recording file description supplied by the user, including trailing blanks (60 bytes).
Comment Length	MNR_HDR$W_COMLEN	Actual length of recording file description string specified by the user (1 word).
Classes	MNR_HDR$O_CLASSBITS	A 128-bit string representing all classes; a bit set to 1 indicates the presence in this file of the class whose type number corresponds to the bit number. Low-order bit = bit 0 (1 octaword).
Revision Levels	MNR_HDR$T_REVLEVELS	A 128-byte string consisting of a 1-byte binary revision level number for each class. A class has a revision level of 0 initially. For each MONITOR release, if the record definition has changed, the revision level will be increased (not necessarily by 1).

H.3.2 System Information Record

The system information record has a record type of 129 and a size of 47 bytes. Figure H-2 illustrates the format of the system information record; Table H-3 describes the fields in this record.

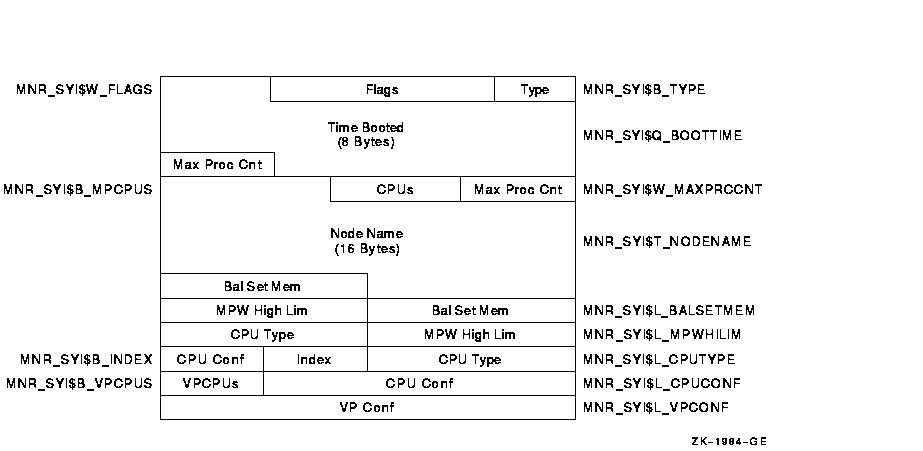

Figure H-2 System Information Record Format

Table H-3 Descriptions of System Information Record Fields
Field Symbolic Offset Contents

Type MNR_SYI$B_TYPE Type identifier (1 byte).

Flags MNR_SYI$W_FLAGS Total of 16 flag bits; low-order bit = bit 0. If bit 0 is set to 1, the node on which the data was collected is a member of a VAXcluster. All other flags reserved to Digital for future use (1 word).

Time Booted MNR_SYI$Q_BOOTTIME System time at which system booted. MONITOR calculates this time by taking the number of seconds since system boot, converting this to a negative value, and adding it to the current system time (1 quadword).

Max Process Cnt MNR_SYI$W_MAXPRCCNT MAXPROCESSCNT system parameter value (1 word).

CPUs MNR_SYI$B_MPCPUS Number of CPUs (1 byte).

Node Name MNR_SYI$T_NODENAME Node name of node being monitored (counted ASCII string, 16 bytes).

Balance Set
Memory (Bal Set Mem) MNR_SYI$L_BALSETMEM Number of process pages to which memory can be allocated (1 longword).

MPW High
Limit MNR_SYI$L_MPWHILIM MPW_HILIMIT system parameter value (1 longword).

CPU Type MNR_SYI$L_CPUTYPE CPU type code. Use $PRDEF macro for code values (1 longword).

Index MNR_SYI$B_INDEX Identifies the position of this node in several internal MONITOR data structures (1 byte).

CPU Config MNR_SYI$L_CPUCONF Bit mask defining the location of each CPU in a multiprocessor (1 longword).

VPCPUs MNR_SYI$B_VPCPUS Number of vector-present processors in the current system (1 byte).

VP Config MNR_SYI$L_VPCONF Bit mask identifying the vector-present processors in the configuration (1 longword).

**Table H-3 Descriptions of System Information Record Fields**
Field	Symbolic Offset	Contents
Type	MNR_SYI$B_TYPE	Type identifier (1 byte).
Flags	MNR_SYI$W_FLAGS	Total of 16 flag bits; low-order bit = bit 0. If bit 0 is set to 1, the node on which the data was collected is a member of a VAXcluster. All other flags reserved to Digital for future use (1 word).
Time Booted	MNR_SYI$Q_BOOTTIME	System time at which system booted. MONITOR calculates this time by taking the number of seconds since system boot, converting this to a negative value, and adding it to the current system time (1 quadword).
Max Process Cnt	MNR_SYI$W_MAXPRCCNT	MAXPROCESSCNT system parameter value (1 word).
CPUs	MNR_SYI$B_MPCPUS	Number of CPUs (1 byte).
Node Name	MNR_SYI$T_NODENAME	Node name of node being monitored (counted ASCII string, 16 bytes).
Balance Set Memory (Bal Set Mem)	MNR_SYI$L_BALSETMEM	Number of process pages to which memory can be allocated (1 longword).
MPW High Limit	MNR_SYI$L_MPWHILIM	MPW_HILIMIT system parameter value (1 longword).
CPU Type	MNR_SYI$L_CPUTYPE	CPU type code. Use $PRDEF macro for code values (1 longword).
Index	MNR_SYI$B_INDEX	Identifies the position of this node in several internal MONITOR data structures (1 byte).
CPU Config	MNR_SYI$L_CPUCONF	Bit mask defining the location of each CPU in a multiprocessor (1 longword).
VPCPUs	MNR_SYI$B_VPCPUS	Number of vector-present processors in the current system (1 byte).
VP Config	MNR_SYI$L_VPCONF	Bit mask identifying the vector-present processors in the configuration (1 longword).

H.3.3 Node Transition Record

The node transition record has a record type of 130 and a size of 2 bytes. Figure H-3 illustrates the format of the node transition record; Table H-4 describes the fields in this record.

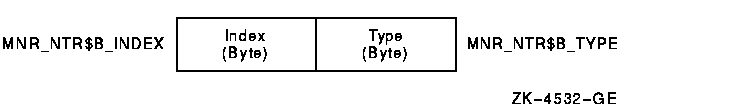

Figure H-3 Node Transition Record Format

Table H-4 Descriptions of Node Transition Record Fields
Field Symbolic Offset Contents

Type MNR_NTR$B_TYPE Record type identifier---indicates node removal operation (1 byte).

Index MNR_NTR$B_INDEX Identifies the position of this node in several internal MONITOR data structures (1 byte).

**Table H-4 Descriptions of Node Transition Record Fields**
Field	Symbolic Offset	Contents
Type	MNR_NTR$B_TYPE	Record type identifier---indicates node removal operation (1 byte).
Index	MNR_NTR$B_INDEX	Identifies the position of this node in several internal MONITOR data structures (1 byte).

H.3.4 RMS File Record

The RMS file record has a record type of 131 and a variable size that depends on the number of RMS files and length of the file name string. Figure H-4 illustrates the format of the RMS file record; Table H-5 describes the fields in this record.

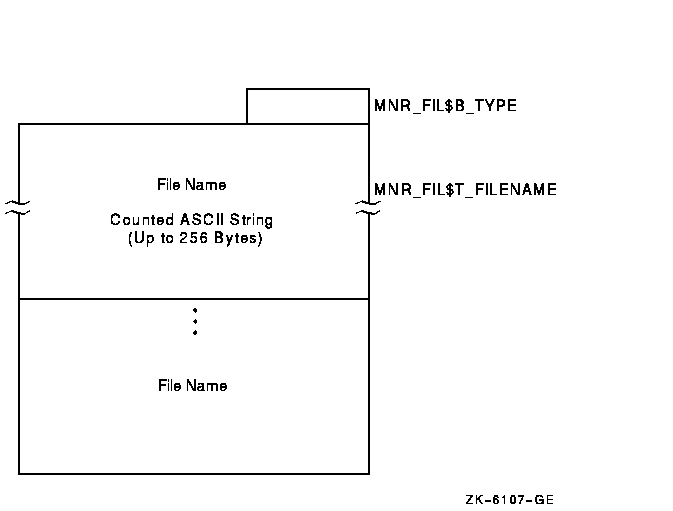

Figure H-4 RMS File Record Format

Table H-5 Descriptions of RMS File Record Fields
Field Symbolic Offset Contents

Type MNR_FIL$B_TYPE Record type identifier (1 byte).

Filename MNR_FIL$T_FILENAME A counted ASCII string that identifies the RMS file for MONITOR RMS requests (up to 256 bytes).

**Table H-5 Descriptions of RMS File Record Fields**
Field	Symbolic Offset	Contents
Type	MNR_FIL$B_TYPE	Record type identifier (1 byte).
Filename	MNR_FIL$T_FILENAME	A counted ASCII string that identifies the RMS file for MONITOR RMS requests (up to 256 bytes).

H.4 Class Records

The MONITOR recording file contains one class record for each requested class for every collection interval, except for the PROCESSES class. (See Section H.4.2.12 for more information on the PROCESSES class records.) For example, if a MONITOR user requested to record five classes (excluding PROCESSES) for a duration of 100 collection intervals, the file would contain 500 class records. Class records occur in order of increasing type number within an interval. The first class record for a given interval follows the last class record for the previous interval.

H.4.1 Class Type Formats

The two basic class types are system classes and component classes. A class record for a system class generally consists of counts for systemwide activities (such as page faults), whereas a class record for a component class normally contains a count for each element of a measured activity (such as I/O operations for each disk in the system).

Specifically, a class record for a system class consists of a class header followed by a data block. A class record for a component class has a class header followed by a class prefix and one data block per element.

Figure H-5 illustrates the format for class records.

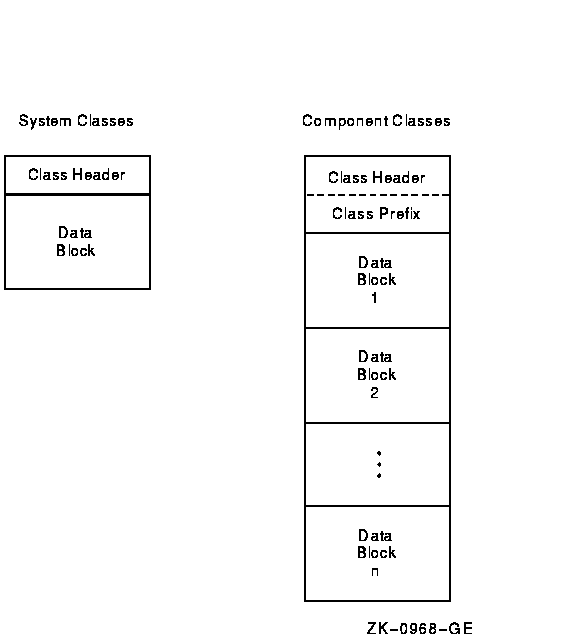

Figure H-5 Class Record Format

H.4.1.1 Class Header

The class header is the first part of every class record. Its format is independent of class. The class header is 13 bytes long.

Figure H-6 illustrates the format of the class header; Table H-6 describes the fields in the class header.

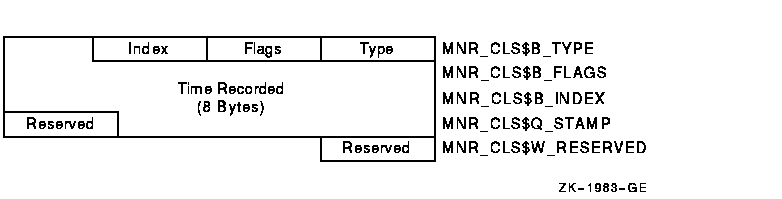

Figure H-6 Class Header Format

Table H-6 Descriptions of Class Header Fields
Field Symbolic Offset Contents

Type MNR_CLS$B_TYPE Record type identifier (1 byte).

Flags MNR_CLS$B_FLAGS Total of 8 flag bits; low order bit = bit 0. If bit 0 is set to 1, the data for this interval continues in the next record. Can be set for the PROCESSES class only. All other flags reserved by Digital for future use (1 byte).

Index MNR_CLS$B_INDEX Identifies the position of this node in several internal MONITOR data structures (1 byte).

Time MNR_CLS$Q_STAMP System time at which this class record was recorded. The time value is nondecreasing across all class records in the file.

Reserved MNR_CLS$W_RESERVED Reserved for Digital use (1 word).

**Table H-6 Descriptions of Class Header Fields**
Field	Symbolic Offset	Contents
Type	MNR_CLS$B_TYPE	Record type identifier (1 byte).
Flags	MNR_CLS$B_FLAGS	Total of 8 flag bits; low order bit = bit 0. If bit 0 is set to 1, the data for this interval continues in the next record. Can be set for the PROCESSES class only. All other flags reserved by Digital for future use (1 byte).
Index	MNR_CLS$B_INDEX	Identifies the position of this node in several internal MONITOR data structures (1 byte).
Time	MNR_CLS$Q_STAMP	System time at which this class record was recorded. The time value is nondecreasing across all class records in the file.
Reserved	MNR_CLS$W_RESERVED	Reserved for Digital use (1 word).

H.4.1.2 Class Prefix (Component Classes Only)

The class prefix always follows the class header for component class records. It contains data describing the number of elements (for example, processes for the PROCESSES class, disks for the DISK class) represented by the class records for the current collection interval. Unlike system class records, which have one data block per record, component classes have one data block per element.

One of the class prefix data items describes the number of elements (and therefore the number of data blocks) included in the class record. The other class prefix data item is used only for the PROCESSES class, and describes the number of processes included in the interval. The following discussion applies only to the PROCESSES class.

It is possible to monitor a number of processes so large that the required number of data blocks for one collection interval does not fit into a single maximum size record. In this case, the required number of PROCESSES class records is created to fully describe the processes.

All class headers in the set of PROCESSES class records for a given interval are identical, except for the setting of bit 0 in the MNR_CLS$W_FLAGS field. This bit is set to 1 for all records except the last, for which it is set to 0.

The class prefixes in the set of class records vary, as described in Table H-7. The contents of the MNR_CMP$L_ELTCT field depends on the number of data blocks contained in the record; the contents of the MNR_CMP$L_PCTINT field remain constant for each record in the set. All records in the set except the last contain as many data blocks as will fit into the maximum size record (32000 bytes). The last record in the set contains the remaining data blocks.

Figure H-7 illustrates the class prefix format; Table H-7 describes the fields in the class prefix. The class prefix is 8 bytes long.

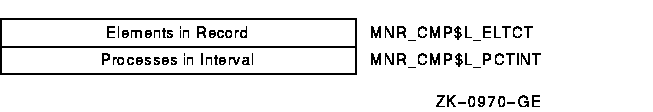

Figure H-7 Class Prefix Format

Table H-7 Descriptions of Class Prefix Fields
Field Symbolic Offset Contents

Elements in
Record MNR_CMP$L_ELTCT Count of elements (data blocks) in this record (1 longword).

Processes in
Interval MNR_CMP$L_PCTINT Count of processes (data blocks) for this interval (1 longword). This field is for the PROCESSES class only. For other component classes, this longword is reserved to Digital for future use.

**Table H-7 Descriptions of Class Prefix Fields**
Field	Symbolic Offset	Contents
Elements in Record	MNR_CMP$L_ELTCT	Count of elements (data blocks) in this record (1 longword).
Processes in Interval	MNR_CMP$L_PCTINT	Count of processes (data blocks) for this interval (1 longword). This field is for the PROCESSES class only. For other component classes, this longword is reserved to Digital for future use.

H.4.2 Class Data Blocks

The size and format of each data block and the number of blocks per record depend on the class. System classes have one data block per record. Component classes have one data block per element. The fields within each block are performance data items.

The following sections describe the data items within the data block for each class. Every data item falls into one of three categories. It is either a count, a level, or an informational item. A count is a numeric quantity that increases at each succeeding interval for the duration of a system boot. A level is a numeric quantity that may increase or decrease at each succeeding interval. An informational item represents data that, rather than being a unit of performance measurement (as are the first two types), is descriptive in nature.

In the tables that follow, item types are identified by the letters C (count), L (level), and I (informational). Item types are shown in parentheses, following the length of the field. Class records are listed alphabetically.

H.4.2.1 CLUSTER Class Record

The CLUSTER class record contains data describing clusterwide CPU, memory, and locking activity. The CLUSTER class record has a record type of 19 and a size of 65 bytes. Note that when the CLUSTER class is recorded, the DISK and MODES classes are also recorded, even if not explicitly requested.

Figure H-8 illustrates the format of the CLUSTER class record. Table H-8 describes the fields in the data block for the CLUSTER class record.

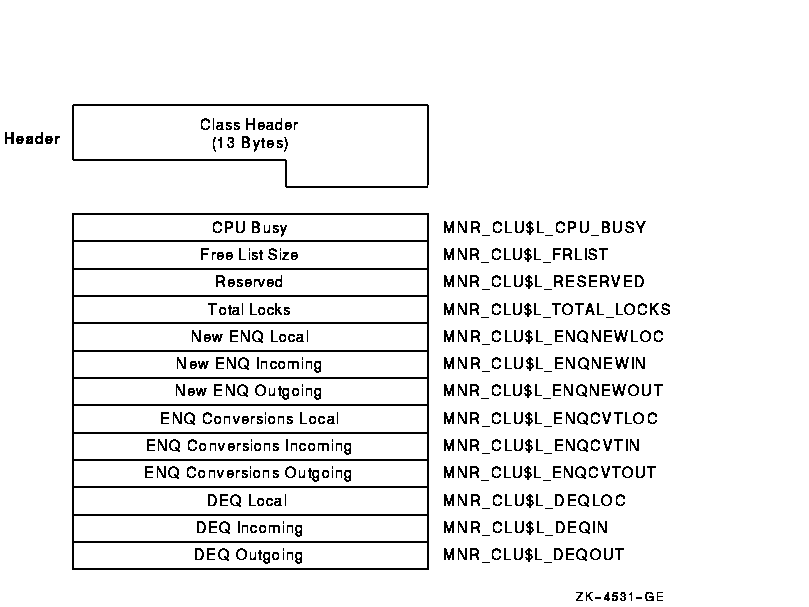

Figure H-8 CLUSTER Class Record Format

Table H-8 Descriptions of CLUSTER Class Record Fields
Field Symbolic Offset Contents

CPU Busy MNR_CLU$L_CPU_BUSY Count of clock ticks (10-millisecond units) spent in all CPU modes since system was booted (longword,C)

Free List Size MNR_CLU$L_FRLIST Number of pages currently on the free list (longword,L)

Reserved MNR_CLU$L_RESERVED Reserved to Digital

Total Locks MNR_CLU$L_TOTAL_LOCKS Total of all incoming, outgoing, and local ENQs, DEQs, and conversions (longword,C)

New ENQ Local MNR_CLU$L_ENQNEWLOC Count of new lock requests that originate and are performed on the system (local) (longword,C)

New ENQ Incoming MNR_CLU$L_ENQNEWIN Count of new lock requests that originate on other systems and are performed on this system (incoming) (longword,C)

New ENQ Outgoing MNR_CLU$L_ENQNEWOUT Count of new lock requests that originate on this system and are performed on other systems (outgoing) (longword,C)

ENQ Conversions Local MNR_CLU$L_ENQCVTLOC Count of lock conversion requests (local) (longword,C)

ENQ Conversions Incoming MNR_CLU$L_ENQCVTIN Count of lock conversion requests (incoming) (longword,C)

ENQ Conversions Outgoing MNR_CLU$L_ENQCVTOUT Count of lock conversion requests (outgoing) (longword,C)

DEQ Local MNR_CLU$L_DEQLOC Count of unlock requests (local) (longword,C)

DEQ Incoming MNR_CLU$L_DEQIN Count of unlock requests (incoming) (longword,C)

DEQ Outgoing MNR_CLU$L_DEQOUT Count of unlock requests (outgoing) (longword,C)

**Table H-8 Descriptions of CLUSTER Class Record Fields**
Field	Symbolic Offset	Contents
CPU Busy	MNR_CLU$L_CPU_BUSY	Count of clock ticks (10-millisecond units) spent in all CPU modes since system was booted (longword,C)
Free List Size	MNR_CLU$L_FRLIST	Number of pages currently on the free list (longword,L)
Reserved	MNR_CLU$L_RESERVED	Reserved to Digital
Total Locks	MNR_CLU$L_TOTAL_LOCKS	Total of all incoming, outgoing, and local ENQs, DEQs, and conversions (longword,C)
New ENQ Local	MNR_CLU$L_ENQNEWLOC	Count of new lock requests that originate and are performed on the system (local) (longword,C)
New ENQ Incoming	MNR_CLU$L_ENQNEWIN	Count of new lock requests that originate on other systems and are performed on this system (incoming) (longword,C)
New ENQ Outgoing	MNR_CLU$L_ENQNEWOUT	Count of new lock requests that originate on this system and are performed on other systems (outgoing) (longword,C)
ENQ Conversions Local	MNR_CLU$L_ENQCVTLOC	Count of lock conversion requests (local) (longword,C)
ENQ Conversions Incoming	MNR_CLU$L_ENQCVTIN	Count of lock conversion requests (incoming) (longword,C)
ENQ Conversions Outgoing	MNR_CLU$L_ENQCVTOUT	Count of lock conversion requests (outgoing) (longword,C)
DEQ Local	MNR_CLU$L_DEQLOC	Count of unlock requests (local) (longword,C)
DEQ Incoming	MNR_CLU$L_DEQIN	Count of unlock requests (incoming) (longword,C)
DEQ Outgoing	MNR_CLU$L_DEQOUT	Count of unlock requests (outgoing) (longword,C)

H.4.2.2 DECNET Class Record

The DECNET class record contains data describing the operation of the DECnet for OpenVMS subsystem. The DECNET class record has a record type of 8 and a size of 33 bytes.

Figure H-9 illustrates the format of the DECNET class record. Table H-9 describes the fields in the data block for the DECNET class record.

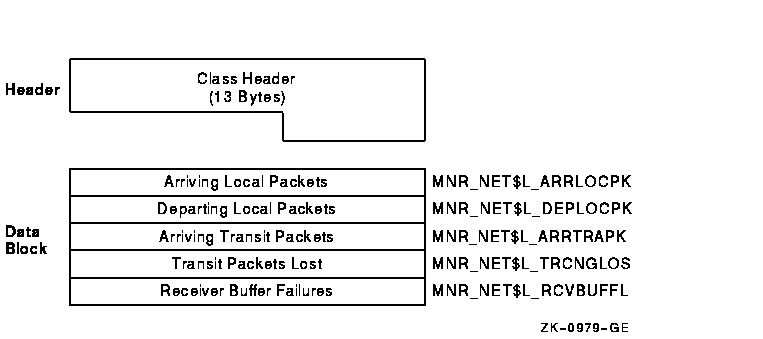

Figure H-9 DECNET Class Record Format

Table H-9 Descriptions of DECNET Class Record Fields
Field Symbolic Offset Contents

Arriving
Local Packets MNR_NET$L_ARRLOCPK Count of arriving local packets (longword,C)

Departing
Local Packets MNR_NET$L_DEPLOCPK Count of departing local packets (longword,C)

Arriving Transit
Packets MNR_NET$L_ARRTRAPK Count of arriving transit packets (longword,C)

Transit Packets
Lost MNR_NET$L_TRCNGLOS Count of packets lost because of transit congestion (longword,C)

Receiver Buffer
Failures MNR_NET$L_RCVBUFFL Count of receiver buffer failures (longword,C)

**Table H-9 Descriptions of DECNET Class Record Fields**
Field	Symbolic Offset	Contents
Arriving Local Packets	MNR_NET$L_ARRLOCPK	Count of arriving local packets (longword,C)
Departing Local Packets	MNR_NET$L_DEPLOCPK	Count of departing local packets (longword,C)
Arriving Transit Packets	MNR_NET$L_ARRTRAPK	Count of arriving transit packets (longword,C)
Transit Packets Lost	MNR_NET$L_TRCNGLOS	Count of packets lost because of transit congestion (longword,C)
Receiver Buffer Failures	MNR_NET$L_RCVBUFFL	Count of receiver buffer failures (longword,C)

H.4.2.3 DISK Class Record

The DISK class record contains data describing all disk devices in the system. The DISK class record has a record type of 12; its size depends on the number of disks being monitored. The size, in bytes, is calculated by adding the size of the class header, the class prefix, and the data blocks contained in the record. This is shown in the following formula:

13 + 8 + (36 * the value of MNR_CMP$L_ELTCT)

Figure H-10 illustrates the format of the DISK class record. Table H-10 describes the fields in the data block for the DISK class record.

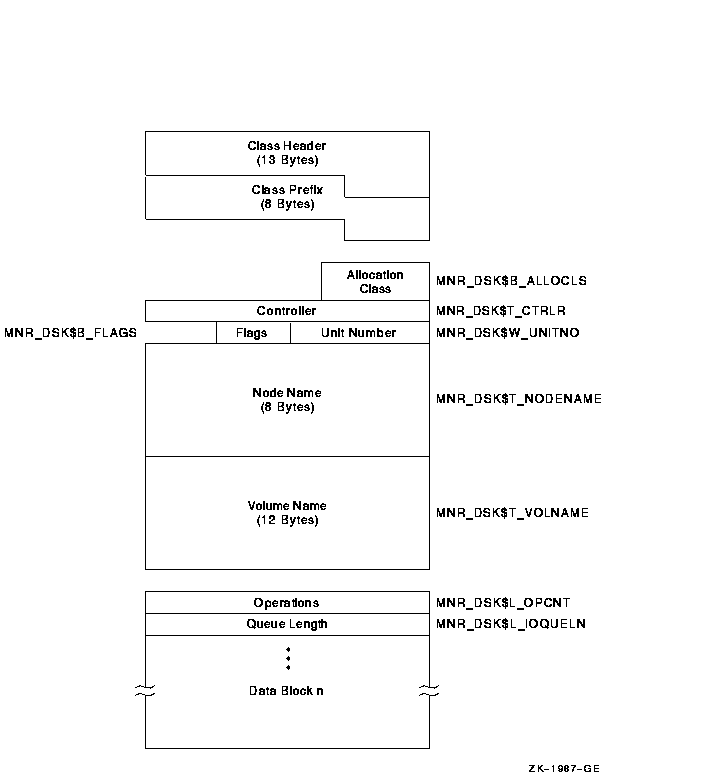

Figure H-10 DISK Class Record Format

Table H-10 Descriptions of DISK Class Record Fields
Field Symbolic Offset Contents

Allocation Class MNR_DSK$B_ALLOCLS Allocation class number (byte,I)

Controller MNR_DSK$T_CTRLR Name of device controller (counted ASCII string) (4 bytes,I)

Unit Number MNR_DSK$W_UNITNO Unit number (word,I)

Flags MNR_DSK$B_FLAGS Total of 8 flag bits; if the low bit is set, the device is served by the MSCP server (byte,I)

Node Name MNR_DSK$T_NODENAME Name of cluster node where device resides (counted ASCII string) (8 bytes,I)

Volume Name MNR_DSK$T_VOLNAME Volume name of disk (ASCII) (12 bytes,I)

Operations MNR_DSK$L_OPCNT Count of I/O operations (longword,C)

Queue Length MNR_DSK$L_IOQUELN Sum of I/O request queue samples (longword,C)

**Table H-10 Descriptions of DISK Class Record Fields**
Field	Symbolic Offset	Contents
Allocation Class	MNR_DSK$B_ALLOCLS	Allocation class number (byte,I)
Controller	MNR_DSK$T_CTRLR	Name of device controller (counted ASCII string) (4 bytes,I)
Unit Number	MNR_DSK$W_UNITNO	Unit number (word,I)
Flags	MNR_DSK$B_FLAGS	Total of 8 flag bits; if the low bit is set, the device is served by the MSCP server (byte,I)
Node Name	MNR_DSK$T_NODENAME	Name of cluster node where device resides (counted ASCII string) (8 bytes,I)
Volume Name	MNR_DSK$T_VOLNAME	Volume name of disk (ASCII) (12 bytes,I)
Operations	MNR_DSK$L_OPCNT	Count of I/O operations (longword,C)
Queue Length	MNR_DSK$L_IOQUELN	Sum of I/O request queue samples (longword,C)

H.4.2.4 DLOCK Class Record

The DLOCK class record contains data describing the operation of the Distributed Lock Management facility. The DLOCK class record has a record type of 14 and a size of 73 bytes.

  6048P062.HTM
  OSSG Documentation
  26-NOV-1996 12:43:56.34

Legal
