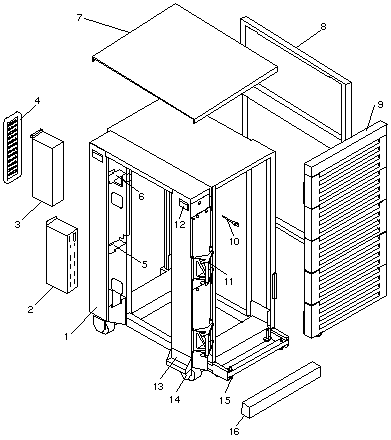

| CODE |
PART # |
DESCRIPTION |
1
-
- |
540-3574
540-3571
340-4711 |
Rack Assembly
 Frame Assembly
 Frame |
| 2 |
300-1403 |
Universal Power Sequencer |
| 3 |
540-2709 |
Fan Tray Assembly |
| 4 |
340-3267 |
Fan Tray Rear Cover |
| 5 |
340-3405 |
Fan Tray Mounting Bracket, Bottom |
| 6 |
340-3434 |
Fan Tray Mounting Bracket, Top |
| 7 |
340-3352 |
Top Panel, Medium Grey |
| 8 |
340-3671 |
Side Panel, Medium Grey |
| 9 |
540-3555 |
Door Assembly with 5 Vented Panels |
| 10 |
540-2393 |
Keyswitch Assembly with Key 330-2014 |
| 11 |
340-3272 |
Door Hinge Bracket |
| 12 |
340-1885 |
Side Restraint Bracket, Upper |
| 13 |
340-1886 |
Side Restraint Bracket, Lower |
| 14 |
240-1717 |
Caster |
| 15 |
230-1418 |
Leveler Foot |
| 16 |
340-3355 |
Anti-Tilt Panel, Medium Grey |
| NS |
340-3266 |
Lower Sequencer Mounting Bracket |
| NS |
340-3394 |
Front Door Catch |
| NS |
340-4624 |
Hinged Rear Panel, Medium Grey |
| NS |
340-5189 |
Front Power Sequencer Mounting Bracket |
| NS |
340-5252 |
Front Sequencer Mounting Bracket Filler Panel |
| NS |
530-1619 |
Ground Cable |
| NS |
530-2197 |
IEC320 to AMP Mate-N-Lok Power Cord |
| NS |
530-2234 |
Fan Sense Cable to AC Power Sequencer |
| NS |
530-2236 |
Remote Keyswitch Control Cable, 3.2M |
| NS |
530-2284 |
Keyswitch Cable Extension, Single Sequencer |
| NS |
530-2369 |
Keyswitch Cable Extension, Dual Sequencers |
| NS |
530-2567 |
Power Cord, Harting Han 6HsB to NEMA L6-30P |
| NS |
530-2568 |
Power Cord, Harting Han 6HsB to IEC309 |
| NS |
180-1943 |
Power Cord, Harting Han 6HsB to NEMA L6-30P |
| NS |
180-1944 |
Power Cord, Harting Han 6HsB to IEC309 |
| NS |
530-2645 |
Fan Tray to Sequencer Sense Cable |
