OpenVMS System Management Utilities Reference Manual

Previous | Contents

INSTALL=keyword(,...)

Specifies that installation event packets are to be considered when selecting event records. Choose from the following keywords:
FILE=filename Specifies the name of the installed file. You can represent all or part of the name with a wildcard.

Note that on Alpha systems prior to Version 6.1 and on VAX systems prior to Version 6.0, audit log files record the installed file name within an object name packet. To select the installed file, you must use the expression OBJECT=(NAME=object-name) instead of FILE=filename.

FLAGS=flag-name Specifies the names of the flags, which correspond to qualifiers of the Install utility (INSTALL); for example, OPEN corresponds to /OPEN.
PRIVILEGES=privilege-name Specifies the names of the privileges with which the file was installed.

LNM_PARENT_NAME=(table-name,...)

Specifies the name of the parent logical name table.

LNM_TABLE_NAME=(table-name,...)

Specifies the name of the logical name table.

LOCAL=(characteristic,...)

Specifies the characteristics of the local (proxy) account to be used when selecting event records. The following characteristic is supported:
USERNAME=username Specifies the name of the local account. You can represent all or part of the name with a wildcard.

LOGICAL_NAME=(logical-name,...)

Specifies the logical name of the mounted (or dismounted) volume upon which selection is based. You can represent all or part of the logical name with a wildcard.

MAILBOX_UNIT=(number,...)

Specifies the number of the mailbox unit.

MOUNT_FLAGS=(flag-name,...)

Specifies the names of the volume mounting flags upon which selection is based. Possible flag names include the following:

The names NOLABEL and FOREIGN each point to the FOREIGN flag. The reason for this is that the MOUNT/NOLABEL and MOUNT/FOREIGN commands each set the FOREIGN flag. Therefore, if you used MOUNT/NOLABEL, and you use ANALYZE/AUDIT/SELECT/MOUNT_FLAGS=NOLABEL, the audit record will display the FOREIGN flag.

NEW_DATA=(value,...)

Specifies the value to use after the event occurs. Use this criterion with the FIELD_NAME criterion.)

NEW_IMAGE_NAME=(image-name,...)

Specifies the name of the image to be activated in the newly created process, as supplied to the $CREPRC system service.

NEW_OWNER=(uic,...)

Specifies the user identification code (UIC) to be assigned to the created process, as supplied to the $CREPRC system service.

OBJECT=keyword(,...)

Specifies which characteristics of an object should be used when selecting event records. Choose any of the following keywords:
CLASS=class-name Specifies the general object class as one of the following:
Capability
Device
Event_cluster
File
Group_global_section
Logical_name_table
Queue
Resource_domain
Security_class
System_global_section
Volume
You must enter the full class name (for example, CLASS=logical_name_table) or use wildcard characters to supply a portion of the class name (for example, CLASS=log*).
NAME=object-name Specifies the name of the object. You can represent all or part of the name with a wildcard. If you do not use a wildcard, specify the full object name (for example, BOSTON$DUA0:[RWOODS]MEMO.MEM;1).
OWNER=value Specifies the UIC or general identifier of the object.
TYPE=type Specifies the general object class (type of object). The available classes are as follows:
Capability
Device
File
Group_global_section
Logical_name_table
Queue
System_global_section
The CLASS keyword supersedes the TYPE keyword. However, TYPE is required to select audit records in files created prior to OpenVMS Alpha Version 6.1 and OpenVMS VAX Version 6.0.

PARENT=keyword(,...)

Specifies which characteristics of the parent process are used when selecting event records generated by a subprocess. Choose from the following keywords:
IDENTIFICATION=value Specifies the process identifier (PID) of the parent process.
NAME=process-name Specifies the name of the parent process. You can represent all or part of the name with a wildcard.
OWNER=value Specifies the owner (identifier value) of the parent process.
USERNAME=username Specifies the user name of the parent process. You can represent all or part of the name with a wildcard.

PASSWORD=(password,...)

Specifies the password used when the system detected a break-in attempt.

PRIVILEGES_MISSING=(privilege-name,...)

Specifies privileges the caller needed to perform the operation successfully. Specify any of the system privileges, as described in the OpenVMS Guide to System Security.

PRIVILEGES_USED=(privilege-name,...)

Specifies the privileges of the process to be used when selecting event records. Specify any of the system privileges, as described in the OpenVMS Guide to System Security. Also include the STATUS keyword in the selection criteria so the report can demonstrate whether the privilege was involved in a successful or an unsuccessful operation.

PROCESS=(characteristic,...)

Specifies the characteristics of the process to be used when selecting event records. Choose from the following characteristics:
IDENTIFICATION=value Specifies the PID of the process.
NAME=process-name Specifies the name of the process. You can represent all or part of the name with a wildcard.

REMOTE=keyword(,...)

Specifies that some characteristic of the network request is to be used when selecting event records. Choose from the following keywords:
ASSOCIATION_NAME=IPC-name Specifies the interprocess communication (IPC) association name.
LINK_IDENTIFICATION=value Specifies the number of the DECnet logical link.
IDENTIFICATION=value Specifies the DECnet node address.
NODENAME=node-name Specifies the DECnet node name. You can represent all or part of the name with a wildcard.
USERNAME=username Specifies the remote user name. You can represent all or part of the remote user name with a wildcard.

REQUEST_NUMBER=(value,...)

Specifies the request number associated with the DCL command REQUEST/REPLY.

SECTION_NAME=(global-section-name,...)

Specifies the name of the global section.

SNAPSHOT_BOOTFILE=(filename,...)

Specifies the name of the file containing a snapshot of the system.

SNAPSHOT_SAVE_FILENAME=(filename,...)

Specifies the name of the system snapshot file for a save operation that is in progress.

STATUS=type(,...)

Specifies the type of success status to be used when selecting event records. Choose from the following status types:
SUCCESSFUL Specifies any success status.
FAILURE Specifies any failure status.
CODE=(value,...) Specifies a specific completion status.

SUBJECT_OWNER=(uic,...)

Specifies the owner (UIC) of the process causing the event.

SUBTYPE=(subtype,...)

Specifies that the criteria be limited to the value or values specified as a subtype.

Refer to Table F-2 for valid subtype values.

SYSTEM=keyword(,...)

Specifies the characteristics of the system to be used when selecting event records. Choose from the following keywords:
IDENTIFICATION=value Specifies the numeric identification of the system.
NAME=nodename Specifies the node name of the system.

SYSTEM_SERVICE_NAME=(service-name,...)

Specifies the name of the system service associated with the event.

TARGET_DEVICE_NAME=(device-name,...)

Specifies the target device name used by a process control system service.

TARGET_PROCESS_IDENTIFICATION=(value,...)

Specifies the target process identifier (PID) used by a process control system service.

TARGET_PROCESS_NAME=(process-name,...)

Specifies the target process name used by a process control system service.

TARGET_PROCESS_OWNER=(uic,...)

Specifies the target process owner (UIC) used by a process control system service.

TARGET_USERNAME=(username,...)

Specifies the target user name used by a process control system service.

TERMINAL=(device-name,...)

Specifies the name of the terminal to be used when selecting event records. You can represent all or part of the terminal name with a wildcard.

TRANSPORT_NAME=(transport-name,...)

Specifies the name of the transport: interprocess communication (IPC) or System Management Integrator (SMI), which handles requests from the System Management utility.

On VAX systems, it also can specify the DECnet transport name (NSP).

USERNAME=(username,...)

Specifies the user name to be used when selecting event records. You can represent all or part of the user name with a wildcard.

VOLUME_NAME=(volume-name,...)

Specifies the name of the mounted (or dismounted) volume to be used when selecting event records. You can represent all or part of the volume name with a wildcard.

VOLUME_SET_NAME=(volume-set-name,...)

Specifies the name of the mounted (or dismounted) volume set to be used when selecting event records. You can represent all or part of the volume set name with a wildcard.

Examples

  1. $ ANALYZE/AUDIT /FULL/SELECT=USERNAME=JOHNSON -
_$ SYS$MANAGER:SECURITY.AUDIT$JOURNAL

    The command in this example selects all records written to the security audit log file that were generated by user JOHNSON.
  2. $ ANALYZE/AUDIT/FULL/SELECT=PRIVILEGES_USED=(SYSPRV,-
_$ BYPASS)  SYS$MANAGER:SECURITY.AUDIT$JOURNAL

    The command in this example selects all records written to the security audit log file that were generated by events through the use of either SYSPRV or BYPASS privilege.
  3. $ ANALYZE/AUDIT/FULL/EVENT=SYSUAF/SELECT= -
_$ IMAGE=("*:[SYS*SYSEXE]SETP0.EXE","*:[SYS*SYSEXE]LOGINOUT.EXE") -
_$ SYS$MANAGER:SECURITY

    The command in this example selects all records that involve password changes written to the security audit log file.


    The following is a command procedure that you could run at midnight to select all SYSUAF, AUDIT, and BREAKIN events (excluding password changes) and mail the result to the system manager:


$! DAILY_AUDIT.COM
$
$   mail_list = "SYSTEM"
$   audsrv$_noselect = %X003080A0
$   audit_events = "SYSUAF,BREAKIN,AUDIT"
$
$   analyze /audit /full -
 /event=('audit_events') -
 /output=audit.tmp -
 /ignore=image=("*:[SYS*SYSEXE]SETP0.EXE","*:[SYS*SYSEXE]LOGINOUT.EXE") -
 sys$manager:SECURITY.AUDIT$JOURNAL
$
$   status = $status
$   if (status.and.%XFFFFFFF) .eq. audsrv$_noselect then goto no_records
$   if .not. status then goto error_analyze
$   if f$file("audit.tmp","eof") .eq. 0 then goto no_records
$   mail /subject="''audit_events' listing from ''f$time()'" -
 audit.tmp 'mail_list'
$   goto new_log
$
$ no_records:
$   mail /subject="No interesting security events" nl: 'mail_list'
$
$ new_log:
$   if f$search("audit.tmp") .nes. "" then delete audit.tmp;*
$   set audit /server=new_log
$   rename sys$manager:SECURITY.AUDIT$JOURNAL;-1 -
 sys$common:[sysmgr]'f$element(0," ",f$edit(f$time(),"TRIM"))'
$   exit
$
$ error_analyze:
$   mail/subj="Error analyzing auditing information" nl: 'mail_list'
$   exit

/SINCE

Indicates the utility must operate on records dated with the specified time or after the specified time.

Format

/SINCE [=time]

/NOSINCE

KEYWORD

time

Specifies the time used to select records. Records dated the same or later than the specified time are selected. You can specify an absolute time, a delta time, or a combination of the two. Observe the syntax rules for date and time described in the OpenVMS User's Manual.

If you specify /SINCE without the time, the utility uses the beginning of the current day.

Examples

  1. $ ANALYZE/AUDIT /SINCE=25-NOV-1995 -
_$ SYS$MANAGER:SECURITY.AUDIT$JOURNAL

    The command in this example selects records dated later than November 25, 1995.
  2. $ ANALYZE/AUDIT /SINCE=25-NOV-1995:15:00 -
_$ SYS$MANAGER:SECURITY.AUDIT$JOURNAL

    The command in this example selects records written after 3 P.M. on November 25, 1995.

/SUMMARY

Specifies that a summary of the selected records be produced after all records are processed.

You can use the /SUMMARY qualifier alone or in combination with the /BRIEF, the /BINARY, or the /FULL qualifier.

Format

/SUMMARY =presentation

/NOSUMMARY

KEYWORD

presentation

Specifies the presentation of the summary. If you do not specify a presentation criterion, ANALYZE/AUDIT summarizes the number of audits.

You can specify either of the following presentations:

COUNT

Lists the total number of audit messages for each class of security event that have been extracted from the security audit log file. This is the default.

PLOT

Displays a plot showing the class of the audit event, the time of day when the audit was generated, and the name of the system where the audit was generated.

Examples

  1. $ ANALYZE/AUDIT/SUMMARY SYS$MANAGER:SECURITY.AUDIT$JOURNAL

    The command in this example generates a summary report of all records processed.
    Total records read:        9701          Records selected:          9701
Record buffer size:        1031
Successful logins:          542          Object creates:            1278
Successful logouts:         531          Object accesses:           3761
Login failures:              35          Object deaccesses:         2901
Breakin attempts:             2          Object deletes:             301
System UAF changes:          10          Volume (dis)mounts:          50
Rights db changes:            8          System time changes:          0
Netproxy changes:             5          Server messages:              0
Audit changes:                7          Connections:                  0
Installed db changes:        50          Process control audits:       0
Sysgen changes:               9          Privilege audits:            91
NCP command lines:          120

  2. $ ANALYZE/AUDIT/FULL/EVENT_TYPE=(BREAKIN,LOGFAIL)/SUMMARY-
_$ SYS$MANAGER:SECURITY.AUDIT$JOURNAL

    The command in this example generates a full format listing of all logged audit messages that match the break-in or log failure event classes. A summary report is included at the end of the listing.
  3. $ ANALYZE/AUDIT/FULL/EVENT_TYPE=(BREAKIN,LOGFAIL)/SUMMARY=PLOT -
_$ SYS$MANAGER:SECURITY.AUDIT$JOURNAL

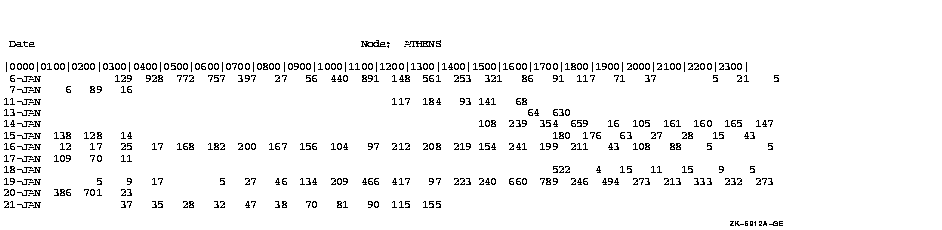

    This command generates a histogram that you can display on a character-cell terminal.

4.4 ANALYZE/AUDIT Commands

This section describes the interactive commands available with the Audit Analysis utility (ANALYZE/AUDIT). The qualifiers for this section follow the standard rules of DCL grammar.

The utility runs interactively by default; you disable the feature with the /NOINTERACTIVE qualifier to the ANALYZE/AUDIT command. To enter interactive commands, press Ctrl/C at any time during the processing of a full or brief interactive display. At the COMMAND> prompt, you can enter any command listed in this section. Use the CONTINUE command to resume processing of the event records, or use the EXIT command to terminate the session.

CONTINUE

Resumes processing of event records.

Format

CONTINUE

PARAMETERS

None.

QUALIFIERS

None.

Example

COMMAND> DISPLAY/SINCE=25-JAN-1996/SELECT=USERNAME=JOHNSON
COMMAND> CONTINUE

The first command in this example selects only event records generated by user JOHNSON after January 25, 1996. The second command in the example displays a report based on the new selection criteria.

DISPLAY

Changes the criteria used to select event records.

Format

DISPLAY

PARAMETERS

None.

For a more complete description of any one of the following qualifiers, refer to the description of the qualifier in the preceding ANALYZE/AUDIT Qualifiers section.

QUALIFIERS

/BEFORE=time

Controls whether only those records dated earlier than the specified time are selected.

/BRIEF

Controls whether a brief (one-line-per-record) format is used in ASCII displays.

/EVENT_TYPE=event-type[,...]

Controls whether only those records matching the specified event type are selected.

/FULL

Controls whether a full format for each record is used in ASCII displays.

/IGNORE=criteria[,...]

Controls whether records matching the specified criteria are excluded. If you specify /IGNORE two or more times, the criteria are combined. To specify a new set of exclusion criteria, include the /REMOVE qualifier with the /IGNORE qualifier.

/PAUSE=seconds

For full-format displays (/FULL), specifies the length of time each record is displayed.

/REMOVE

Controls whether the criteria specified by the /IGNORE and the /SELECT qualifiers are no longer to be used to select event records to be displayed.

/SELECT=criteria[,...]

Controls whether only those records matching the specified criteria are selected. If you specify /SELECT two or more times, the criteria are combined. To specify a new set of selection criteria, include the /REMOVE qualifier with the /SELECT qualifier.

/SINCE[=time]

Controls whether only those records dated the same or later than the specified time are selected.

Examples

  1. COMMAND> DISPLAY/EVENT_TYPE=SYSUAF
COMMAND> CONTINUE

    The first command in this example selects records that were generated as a result of a modification to the system user authorization file (SYSUAF). The second command displays the selected records.
  2. COMMAND> DISPLAY/SELECT=USERNAME=CRICK
COMMAND> CONTINUE
   .
   .
   .
[Ctrl/C]

COMMAND> DISPLAY/SELECT=USERNAME=WATSON
COMMAND> CONTINUE

    The first DISPLAY command in this example selects records that were generated by user CRICK. The second command displays the selected records. The next DISPLAY command selects records that were generated by user WATSON. The last command in the example displays all records generated by users CRICK and WATSON.

EXIT

Terminates the session.

Format

EXIT

PARAMETERS

None.

QUALIFIERS

None.

HELP

Provides online help information for using ANALYZE/AUDIT commands.

Format

HELP [topic]

PARAMETER

topic

Specifies the command for which help information is to be displayed. If you omit the keyword, HELP displays a list of available help topics and prompts you for a particular keyword.

QUALIFIERS

None.

Example

COMMAND> HELP DISPLAY

The command in this example displays help information about the DISPLAY command.

LIST

Changes the criteria used to select event records. The LIST command is synonymous with the DISPLAY command.

Format

LIST

PARAMETERS

None.

QUALIFIERS

See the description of the DISPLAY command.

Example

COMMAND> LIST/EVENT_TYPE=SYSUAF
COMMAND> CONTINUE

The first command in this example selects records that were generated as a result of a modification to the system user authorization file (SYSUAF). The second command displays the selected records.

NEXT FILE

Controls whether the current security audit log file is closed and the next log file opened. The command is useful when you supply a wildcard file specification to the ANALYZE/AUDIT command; for example *.AUDIT$JOURNAL. If there are no other audit log files to open, the audit analysis session terminates and control returns to DCL.

Format

NEXT FILE

PARAMETERS

None.

QUALIFIERS

None.

NEXT RECORD

Controls whether the next audit record is displayed. The NEXT RECORD command is the default for interactive mode.

This command is synonymous with the POSITION command.

Format

NEXT RECORD

PARAMETERS

None.

QUALIFIERS

None.

Previous | Next | Contents | [Home] | [Comments] | [Ordering info] | [Help]

[HR]

  6048P006.HTM
  OSSG Documentation
  26-NOV-1996 12:42:25.24

Copyright © Digital Equipment Corporation 1996. All Rights Reserved.

Legal
