OpenVMS Alpha System Dump Analyzer Utility Manual

Order Number: AA--PV6UC--TE


November 1996

This manual explains how to use the System Dump Analyzer (SDA) to investigate system failures and examine a running OpenVMS system.

Revision/Update Information: This manual supersedes the OpenVMS Alpha System Dump Analyzer Utility Manual, Version 6.0

Software Version: OpenVMS Alpha Version 7.1




Digital Equipment Corporation Maynard, Massachusetts


November 1996

Digital Equipment Corporation makes no representations that the use of its products in the manner described in this publication will not infringe on existing or future patent rights, nor do the descriptions contained in this publication imply the granting of licenses to make, use, or sell equipment or software in accordance with the description.

Possession, use, or copying of the software described in this publication is authorized only pursuant to a valid written license from Digital or an authorized sublicensor.

Digital conducts its business in a manner that conserves the environment and protects the safety and health of its employees, customers, and the community.

© Digital Equipment Corporation 1996. All rights reserved.

The following are trademarks of Digital Equipment Corporation: Bookreader, DECdirect, DECwindows, Digital, OpenVMS, OpenVMS Cluster, VAX, VAX DOCUMENT, VAXcluster, VMS, and the DIGITAL logo.

All other trademarks and registered trademarks are the property of their respective holders.

ZK6135

The OpenVMS documentation set is available on CD-ROM.


Contents


Preface

Intended Audience

The OpenVMS Alpha System Dump Analyzer Utility Manual is intended primarily for the system programmer who must investigate the causes of system failures and debug kernel mode code, such as a device driver. An understanding of data structures is necessary to accurately interpret the results of System Dump Analyzer (SDA) commands.

This manual also includes such system management information as maintaining the system resources necessary to capture and store system crash dumps. If you need to determine the cause of a hung process or improve system performance, refer to this manual for instructions on using SDA to analyze a running system.

Document Structure

The OpenVMS Alpha System Dump Analyzer Utility Manual includes the following information:

Related Documents

For additional information, refer to the following documents:

For additional information on OpenVMS products and services, access the Digital OpenVMS World Wide Web site. Use the following URL:

http://www.openvms.digital.com

Reader's Comments

Digital welcomes your comments on this manual.

Print or edit the online form SYS$HELP:OPENVMSDOC_COMMENTS.TXT and send us your comments by:
Internet openvmsdoc@zko.mts.dec.com
Fax 603 881-0120, Attention: OpenVMS Documentation, ZK03-4/U08
Mail OpenVMS Documentation Group, ZKO3-4/U08
110 Spit Brook Rd.
Nashua, NH 03062-2698

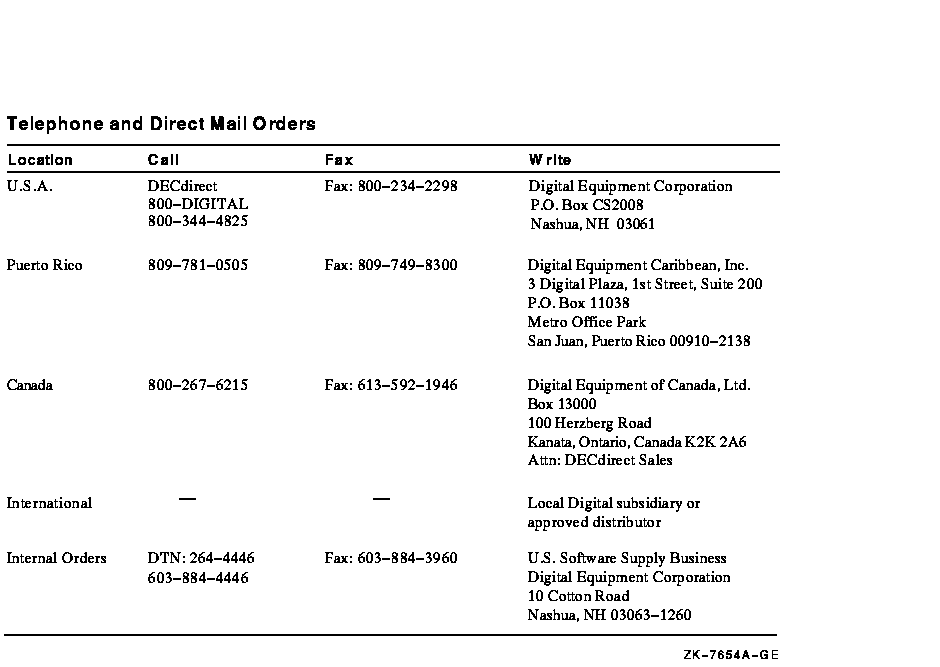

How To Order Additional Documentation

Use the following table to order additional documentation or information. If you need help deciding which documentation best meets your needs, call 800-DIGITAL (800-344-4825).



Conventions

The name of the OpenVMS AXP operating system has been changed to OpenVMS Alpha. Any references to OpenVMS AXP or AXP are synonymous with OpenVMS Alpha or Alpha.

VMScluster systems are now referred to as OpenVMS Cluster systems. Unless otherwise specified, references to OpenVMS Clusters or clusters in this document are synonymous with VMSclusters.

The following conventions are also used in this manual:
Ctrl/ x A sequence such as Ctrl/ x indicates that you must hold down the key labeled Ctrl while you press another key or a pointing device button.
PF1 x or
GOLD x
A sequence such as PF1 x or GOLD x indicates that you must first press and release the key labeled PF1 or GOLD and then press and release another key or a pointing device button.

GOLD key sequences can also have a slash (/), dash (--), or underscore (_) as a delimiter in EVE commands.

[Return] In examples, a key name enclosed in a box indicates that you press a key on the keyboard. (In text, a key name is not enclosed in a box.)
... Horizontal ellipsis points in examples indicate one of the following possibilities:
  • Additional optional arguments in a statement have been omitted.
  • The preceding item or items can be repeated one or more times.
  • Additional parameters, values, or other information can be entered.
.
.
.
Vertical ellipsis points indicate the omission of items from a code example or command format; the items are omitted because they are not important to the topic being discussed.
( ) In command format descriptions, parentheses indicate that, if you choose more than one option, you must enclose the choices in parentheses.
[ ] In command format descriptions, brackets indicate optional elements. You can choose one, none, or more than one of the options. (Brackets are not optional, however, in the syntax of a directory name in an OpenVMS file specification or in the syntax of a substring specification in an assignment statement.)
[|] In command format descriptions, vertical bars separating items inside brackets indicate that you choose one, none, or more than one of the options.
{ } In command format descriptions, braces indicate a required choice of options; you must choose one of the options listed.
{|} In command format descriptions, vertical bars separating items inside braces indicate that you choose one item from among those listed. If you choose no items from among those listed, you in effect choose the default item, which is indicated by a (d) after it. However, if there is no default item, then you must choose one of the options listed.
text style This text style represents the introduction of a new term or the name of an argument, an attribute, or a reason.

This style is also used to show user input in Bookreader versions of the manual.

italic text Italic text indicates important information, complete titles of manuals, or variables. Variables include information that varies in system output (Internal error number), in command lines (/PRODUCER= name), and in command parameters in text (where device-name contains up to five alphanumeric characters).
UPPERCASE TEXT Uppercase text indicates a command, the name of a routine, the name of a file, or the abbreviation for a system privilege.
Monospace type Monospace type indicates code examples and interactive screen displays.

In the C programming language, monospace type in text identifies the following elements: keywords, the names of independently compiled external functions and files, syntax summaries, and references to variables or identifiers introduced in an example.

- A hyphen at the end of a command format description, command line, or code line indicates that the command or statement continues on the following line.
numbers All numbers in text are assumed to be decimal unless otherwise noted. Nondecimal radixes---binary, octal, or hexadecimal---are explicitly indicated.

1 SDA Description

When a system failure occurs, the operating system copies the contents of memory to a system dump file or the primary page file, recording the hardware context of each processor in the system as well. The System Dump Analyzer (SDA) is a utility that allows you to interpret the contents of this file, examine the status of each processor at the time of the system failure, and investigate the probable causes of the failure.

You can use SDA commands to perform the following operations:

Although SDA provides a great deal of information, it does not automatically analyze all the control blocks and data contained in memory. For this reason, in the event of system failure, it is extremely important that you save not only the output provided by SDA commands, but also a copy of the system dump file written at the time of the failure.

You can also invoke SDA to analyze a running system, using the DCL command ANALYZE/SYSTEM. Most SDA commands generate useful output when entered on a running system.


Caution:

Although analyzing a running system may be instructive, you should undertake such an operation with caution. System context, process context, and a processor's hardware context can change during any given display.

In a multiprocessing environment, it is very possible that, during analysis, a process running SDA could be rescheduled to a different processor frequently. Therefore, avoid examining the hardware context of processors in a running system.


2 System Management and SDA

The system manager must ensure that the system writes a dump file whenever the system fails. The manager must also see that the dump file is large enough to contain all the information to be saved, and that the dump file is saved for analysis. The following sections describe these tasks.

2.1 Writing System Dumps

The operating system attempts to write information into the system dump file only if the system parameter DUMPBUG is set. (The DUMPBUG parameter is set by default. To examine and change its value, consult the OpenVMS System Manager's Manual: Tuning, Monitoring, and Complex Systems.) If DUMPBUG is set and the operating system fails, the system manager has the following choices for writing system dumps:

See Section 2.1.1 for more information about the DUMPSTYLE parameter values.

2.1.1 Dump File Style

There are two types of dump files---a physical memory dump (also known as a full dump), and a dump of selected virtual addresses (also known as a selective dump). Both full and selective dumps may be produced in either compressed or uncompressed form. Compressed dumps save disk space and time taken writing the dump at the expense of a slight increase in time to access the dump with SDA. The SDA commands COPY/COMPRESS and COPY/DECOMPRESS can be used to convert an existing dump.

DUMPSTYLE, which specifies the method of writing system dumps, is a 32-bit mask. Table SDA-1 shows how the bits are defined. Each bit can be set independently. The value of the SYSGEN parameter is the sum of the values of the bits that have been set. Remaining or undefined values are reserved to Digital.

Table SDA-1 The DUMPSTYLE Mask
Bit Value Description
0 0 0= Full dump (SYSGEN default). The entire contents of physical memory will be written to the dump file.
1= Selective dump. The contents of memory will be written to the dump file selectively to maximize the usefulness of the dump file while conserving disk space.
1 2 0= Minimal console output.
1= Full console output (includes stack dump, register contents, and so on.)
2 4 This bit is ignored on Alpha systems.
3 8 0= Do not compress.
1= Compress.
4-31 Reserved to Digital

In a physical memory dump, the DUMPSTYLE system parameter can be set to 0,2,8, or 10. Each value provides a full dump; the value of 0 yields an uncompressed dump with minimal console output; the value of 2 provides an uncompressed dump with full console output; the value of 8 provides a compressed dump with minimal console output; and the value of 10 provides a compressed dump with full console output. A physical memory dump requires that all physical memory be written to the dump file. This ensures the presence of all the page table pages required for SDA to emulate translation of system virtual addresses. These table pages include the level 1 page table of the current process, the shared level 2 page table that maps the system page table (SPT), and the level 3 page table pages that constitute the SPT.

In certain system configurations, it may be impossible to preserve the entire contents of memory in a disk file. For instance, a large memory system or a system with small disk capacity may not be able to supply enough disk space for a full memory dump. If the system dump file cannot accommodate all of memory, information essential to determining the cause of the system failure may be lost.

To preserve those portions of memory that contain information most useful in determining the causes of system failures, a system manager sets the value of the DUMPSTYLE system parameter to 1, 3, 9, or 11 to specify a dump of selected virtual address spaces. Each value provides a selective dump; the value of 1 yields an uncompressed dump with minimal console output; the value of 3 provides an uncompressed dump with full console output; the value of 9 provides a compressed with minimal console output; and the value of 11 provides a compressed with full console output. In a selective dump, related pages of virtual address space are written to the dump file as a unit called a logical memory block (LMB). For example, one LMB consists of the system and global page tables; another is the address space of a particular process. Those LMBs most likely to be useful in crash dump analysis are written first.

Table SDA-2 compares full and selective style dump files.

Table SDA-2 Comparison of Full and Selective Dump Files
Item Full Selective
Available Information Complete contents of physical memory in use, stored in order of increasing physical address. System page table, global page table, system space memory, and process and control regions (plus global pages) for all saved processes.
Unavailable Information Contents of paged-out memory at the time of the system failure. Contents of paged-out memory at the time of the system failure, process and control regions of unsaved processes, L1 page tables, and memory not mapped by a page table.
SDA Command Limitations None. The following commands are not useful for unsaved processes: SHOW PROCESS/CHANNELS, SHOW PROCESS/IMAGE, SHOW PROCESS/RMS, SHOW STACK, and SHOW SUMMARY/IMAGE.

2.1.2 Controlling the Size of Page Files and Dump Files

You can adjust the size of the system page file and dump file using AUTOGEN (the recommended method) or by using SYSGEN.

AUTOGEN automatically calculates the appropriate sizes for page and dump files. AUTOGEN invokes the System Generation utility (SYSGEN) to create or change the files. However, you can control sizes calculated by AUTOGEN by defining symbols in the MODPARAMS.DAT file. The file sizes specified in MODPARAMS.DAT are copied into the PARAMS.DAT file during AUTOGEN's GETDATA phase. AUTOGEN then makes appropriate adjustments in its calculations.

Although Digital recommends using AUTOGEN to create and modify page and dump file sizes, you can use SYSGEN to directly create and change the sizes of those files.

The sections that follow discuss how you can calculate the size of a dump file.

See the OpenVMS System Manager's Manual for detailed information about using AUTOGEN and SYSGEN to create and modify page and dump file sizes.

2.1.3 Writing to the System Dump File

OpenVMS Alpha writes the contents of the error-log buffers, processor registers, and memory into the system dump file, overwriting its previous contents. If the system dump file is too small, OpenVMS Alpha cannot copy all memory to the file when a system failure occurs.

SYS$SYSTEM:SYSDUMP.DMP (SYS$SPECIFIC:[SYSEXE]SYSDUMP.DMP) is furnished as an empty file in the OpenVMS Alpha software distribution kit. To successfully store a crash dump, SYS$SYSTEM:SYSDUMP.DMP must be enlarged to hold all of the page tables required for SDA to emulate system virtual address translation.

To calculate the correct size for a physical memory dump to SYS$SYSTEM:SYSDUMP.DMP, use the following formula:

size-in-blocks(SYS$SYSTEM:SYSDUMP.DMP)
        = size-in-pages(physical-memory) * blocks-per-page
        + number-of-error-log-buffers * blocks-per-buffer
        + 2

Use the DCL command SHOW MEMORY to determine the total size of physical memory on your system. There is a variable number of error log buffers in any given system, depending on the setting of the ERRORLOGBUFFERS system parameter. The size of each buffer depends on the setting of the ERLBUFFERPAGES parameter. (See the OpenVMS System Manager's Manual for additional information about these parameters.)

2.1.4 Writing to the Dump File off the System Disk

OpenVMS Alpha allows you to write the system dump file to a device other than the system disk. This is useful in large memory systems and in clusters with common system disks where sufficient disk space, on one disk, is not always available to support customer dumpfile requirements. To perform this activity, the DUMPSTYLE system parameter must be correctly enabled to allow the bugcheck code to write the system dump file to an alternative device.

The requirements for writing the system dump file off the system disk are the following:

For information on how to write the system dump file to an alternative device to the system disk, see the OpenVMS System Manager's Manual: Tuning, Monitoring, and Complex Systems.

2.1.5 Writing to the System Page File

If SYS$SYSTEM:SYSDUMP.DMP does not exist, the operating system writes the dump of physical memory into SYS$SYSTEM:PAGEFILE.SYS, the primary system page file, overwriting the contents of that file.

If the SAVEDUMP system parameter is set, the dump file is retained in PAGEFILE.SYS when the system is booted after a system failure. If the SAVEDUMP parameter is not set (clear), which is the default, OpenVMS Alpha uses the entire page file for paging and any dump written to the page file is lost. (To examine or change the value of the SAVEDUMP parameter, consult the OpenVMS System Manager's Manual: Tuning, Monitoring, and Complex Systems.)

To calculate the minimum size for a physical memory dump to SYS$SYSTEM:PAGEFILE.SYS, use the following formula:

size-in-blocks(SYS$SYSTEM:PAGEFILE.SYS)
        = size-in-pages(physical-memory) * blocks-per-page
        + number-of-error-log-buffers  * blocks-per-buffer
        + 2
        + value of the system parameter RSRVPAGCNT

Note that this formula calculates the minimum size requirement for saving a physical dump in the system's page file. Digital recommends that the page file be a bit larger than this minimum to avoid hanging the system. Also note that you can only write the dump of physical memory into the primary page file (SYS$SYSTEM:PAGEFILE.SYS). Secondary page files cannot be used to save dump file information.

It is not recommended to use a selective dump (DUMPSTYLE=1) style with PAGEFILE.SYS. If the PAGEFILE.SYS is used for a selective dump, and if the PAGEFILE.SYS is not large enough to contain all the logical memory blocks, the dump fills the entire page file and the system may hang on reboot. When selective dumping is set up, all available space is used to write out the logical memory blocks. If the page file is large enough to contain all of physical memory, there is no reason to use selective dumping. A full memory dump (DUMPSTYLE=0) should be used.

Writing crash dumps to SYS$SYSTEM:PAGEFILE.SYS presumes that you will later free the space occupied by the dump for use by the pager. Otherwise, your system may hang during the startup procedure. To free this space, you can do one of the following:

2.2 Saving System Dumps

Every time the operating system writes information to the system dump file, it writes over whatever was previously stored in the file. The system writes information to the dump file whenever the system fails or is shut down. For this reason, the system manager must save the contents of the file after a system failure has occurred.
