OpenVMS System Services Reference Manual

Previous | Contents

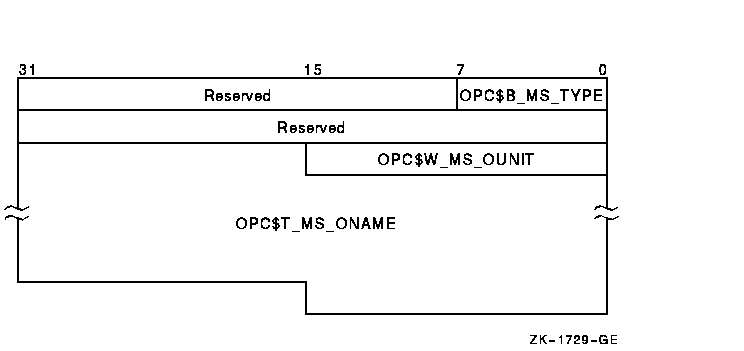

Message Buffer Format for OPC$_RQ_STATUS

OPC$B_MS_TYPE This 1-byte field contains the request code OPC$_RQ_STATUS.
Reserved This 3-byte field is reserved for future use.
Reserved This 4-byte field is reserved for future use.
OPC$W_MS_OUNIT This 2-byte field contains the unit number of the operator terminal whose status is to be requested. To obtain the unit number of the terminal, you can call $GETDVI, specifying the DVI$_FULLDEVNAM item code. The information returned will consist of the node name and device name as a padded string. Because the unit number is found on the tail end of the string, you must parse the string. One way to do this is, starting from the tail end, to search for the first alphabetic character; the digits to the right of this alphabetic character constitute the unit number.

After extracting the unit number, count the remaining characters in the string. Then, construct a counted ASCII string and use this for the following field, OPC$T_MS_ONAME.

OPC$T_MS_ONAME This variable-length field contains a counted ASCII string specifying the device name of the operator terminal whose status is requested. The maximum total length of the string is 14 bytes. See the preceding field description (OPC$W_MS_OUNIT) to learn how to obtain the device name.

Message Buffer Format for OPC$_RQ_LOGI

OPC$B_MS_TYPE This 1-byte field contains the request code OPC$_RQ_LOGI.
OPC$B_MS_TARGET This 3-byte field contains a 24-bit bit vector that specifies which operator terminal types are to receive the cancellation request. The $OPCDEF macro defines symbolic names for the operator terminal types. You construct the bit vector by specifying the desired symbolic names in a logical OR operation. Following is the symbolic name of each operator terminal type:
OPC$M_NM_CARDS Card device operator
OPC$M_NM_CENTRL Central operator
OPC$M_NM_SECURITY Security operator
OPC$M_NM_CLUSTER OpenVMS Cluster operator
OPC$M_NM_DEVICE Device status information
OPC$M_NM_DISKS Disk operator
OPC$M_NM_NTWORK Network operator
OPC$M_NM_TAPES Tape operator
OPC$M_NM_PRINT Printer operator
OPC$M_NM_OPER1
through
OPC$M_NM_OPER12 		System-manager-defined operator functions
OPC$L_MS_RQSTID This longword field contains a user-supplied value.

The value 0 specifies that the current operator log file is to be closed and a new log file opened with all classes enabled (OPC$B_MS_TARGET is ignored).

The value 1 specifies that the current operator log file is to be closed but no new log file is to be opened.

The value 2 specifies that the classes in OPC$B_MS_TARGET are added to the current operator log file classes. A log file is opened if necessary.

The value 3 specifies that the operator classes in OPCB_MS_TARGET are to be removed from the operator log file classes. If all classes are removed, the log file is closed.

OPC$W_MS_OUNIT This 2-byte field contains the unit number of the operator terminal that is making the initialization request. To obtain the unit number of the terminal, you can call $GETDVI, specifying the DVI$_FULLDEVNAM item code. The information returned will consist of the node name and device name as a padded string. Because the unit number is found on the tail end of the string, you must parse the string. One way to do this is, starting from the tail end, to search for the first alphabetic character; the digits to the right of this alphabetic character constitute the unit number.

After extracting the unit number, count the remaining characters in the string. Then, construct a counted ASCII string and use this for the following field, OPC$T_MS_ONAME.

OPC$T_MS_ONAME This variable-length field contains a counted ASCII string specifying the device name of the operator terminal that is making the initialization request. The maximum total length of the string is 14 bytes. See the preceding field description (OPC$W_MS_OUNIT) to learn how to obtain the device name.

chan


OpenVMS usage: channel
type: word (unsigned)
access: read only
mechanism: by value

Channel assigned to the mailbox to which the reply is to be sent. The chan argument is a longword value containing the number of the channel. If you do not specify chan or specify it as the value 0 (the default), no reply is sent.

If a reply from the operator is desired, you must specify the chan argument.

DESCRIPTION

The $SNDOPR service performs the following functions:

This system service requires system dynamic memory; it cannot be called from kernel mode.

The general procedure for using this service is as follows:

  1. Construct the message buffer and place its final length in the first word of the buffer descriptor.
  2. Call the $SNDOPR service.
  3. Check the condition value returned in R0 to make sure the request was successfully made.
  4. Issue a read request to the mailbox specified, if any.

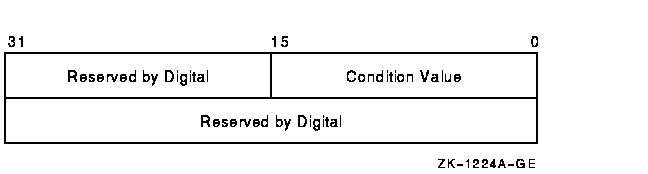

  5. When the read operation completes, check the 2-byte condition value in the OPC$W_MS_STATUS field to make sure that the operation was performed successfully.

The format of messages displayed on operator terminals follows:

%%%%%%%%%%%  OPCOM   dd-mmm-yyyy hh:mm:ss.cc
message specific information

The following example shows the message displayed on a terminal as a result of a request to enable that terminal as an operator terminal:

%%%%%%%%%%%  OPCOM   30-DEC-1994 13:44:40.37
Operator _NODE$LTA5: has been enabled, username HOEBLE

The following example shows the message displayed on an operator terminal as a result of a request to display the status of that operator terminal:

%%%%%%%%%%%  OPCOM   30-DEC-1994 12:11:10.48
Operator status for operator _NODE$OPA0:
CENTRAL, PRINTER, TAPES, DISKS, DEVICES, CARDS, CLUSTER, SECURITY,
OPER1, OPER2, OPER3, OPER4, OPER5, OPER6, OPER7, OPER8, OPER9,
OPER10, OPER11, OPER12

The following example shows the message displayed on an operator terminal as a result of a user request:

%%%%%%%%%%%  OPCOM   30-DEC-1994 12:57:32.25
Request 1285, from user ROSS on NODE_NAME
Please mount device _NODE$DMA0:

Required Access or Privileges

OPER privilege is required for the following functions:

In addition, the operator must have SECURITY privilege to affect security functions.

Required Quota

None

Related Services

$ALLOC, $ASSIGN, $BRKTHRU, $BRKTHRUW, $CANCEL, $CREMBX, $DALLOC, $DASSGN, $DELMBX, $DEVICE_SCAN, $DISMOU, $GETDVI, $GETDVIW, $GETMSG, $GETQUI, $GETQUIW, $INIT_VOL, $MOUNT, $PUTMSG, $QIO, $QIOW, $SNDERR, $SNDJBC, $SNDJBCW

Condition Values Returned

SS$_NORMAL The service completed successfully.
SS$_ACCVIO The message buffer or buffer descriptor cannot be read by the caller.
SS$_BADPARAM The specified message has a length of 0 or has more than 986 bytes.
SS$_DEVNOTMBX The channel specified is not assigned to a mailbox.
SS$_INSFMEM The service was called from kernel mode or the system dynamic memory is insufficient for completing the service.
SS$_IVCHAN You specified an invalid channel number. An invalid channel number is one that is 0 or a number larger than the number of channels available.
SS$_MBFULL The mailbox used to support communication is full. Retry at a later time.
OPC$_NOPERATOR The service completed successfully; the Operator Communications Manager (OPCOM) is not running and the message will not be sent. Note that OPC$_NOPERATOR is a success status and must be tested for explicitly.
SS$_NOPRIV The process does not have the privilege to reply to or cancel a user's request; the process does not have read/write access to the specified mailbox; or the channel was assigned from a more privileged access mode.

Condition Values Returned in the Mailbox

OPC$_BLANKTAPE The service completed successfully; the operator responded with the DCL command REPLY/BLANK_TAPE=n.
OPC$_INITAPE The service completed successfully; the operator responded with the DCL command REPLY/INITIALIZE_TAPE=n.
OPC$_NOPERATOR The service completed successfully; no operator terminal was enabled to receive the message.
OPC$_RQSTCMPLTE The service completed successfully; the operator completed the request.
OPC$_RQSTPEND The service completed successfully; the operator will perform the request when possible.
OPC$_RQSTABORT The operator could not satisfy the request.
OPC$_RQSTCAN The caller canceled the request.

Examples

#1
#include <ssdef.h>
#include <opcdef.h>
#include <string.h>
#include <descrip.h>
#include <starlet.h>
#include <lib$routines.h>

char    input_buffer[256];      /* Input buffer, if needed */

/* VMS descriptors: */
$DESCRIPTOR(input_desc, input_buffer);
$DESCRIPTOR(prompt_desc, "Request> ");
struct dsc$descriptor req_desc;

main(int argc, char *argv[])
{
    int status,                 /* Status of system calls */
        length = 0;             /* Length of message text */
    struct OPC request;         /* Request message buffer */

    /* Check for too many arguments on command line */
    if (argc > 2)
        return (SS$_OVRMAXARG);

    /* See if request string present on command line... */
    if (argc > 1)
    {
        /* It is.  Compute length and copy pointer */
        length = strlen(argv[1]);
        input_desc.dsc$a_pointer = argv[1];
    }

    /* If no message present, prompt user for message text */
    while (length == 0)
    {
        status = lib$get_input(&input_desc, &prompt_desc, &length);
        if (status != SS$_NORMAL)
            return (status);
    };

    if (length > 128)           /* Limit message length */
        length = 128;           /*    to 128 characters */

    /* Set up request buffer... */
    request.opc$b_ms_type = OPC$_RQ_RQST;
    request.opc$b_ms_target = OPC$M_NM_CENTRL;
    request.opc$l_ms_rqstid = 0;
    memcpy(&request.opc$l_ms_text, input_desc.dsc$a_pointer, length);

    /* Set up request buffer descriptor and send message */
    req_desc.dsc$w_length = length + 8;
    req_desc.dsc$a_pointer = (char *) &request;
    return (sys$sndopr(&req_desc, 0));
}

This example allows you to build an operator request and send the request to the operator.

#2
IMPLICIT NONE

        ! Symbol definitions
        INCLUDE '($DVIDEF)'
        INCLUDE '($OPCDEF)'

        ! Structures for SNDOPR
        STRUCTURE /MESSAGE/
         UNION
          MAP
           BYTE TYPE,
        2       ENABLE(3)
           INTEGER*4 MASK
           INTEGER*2 OUNIT
           CHARACTER*14 ONAME
          END MAP
          MAP
           CHARACTER*24 STRING
          END MAP
         END UNION
        END STRUCTURE
        RECORD /MESSAGE/ MSGBUF
        ! Length of MSGBUF.ONAME
        INTEGER*4 ONAME_LEN

        ! Status and routines
        INTEGER*4 STATUS,
        2         LIB$GETDVI,
        2         SYS$SNDOPR

        ! Type
        MSGBUF.TYPE = OPC$_RQ_TERME
        ! Enable
        MSGBUF.ENABLE(1) = 1
        ! Operator type
        MSGBUF.MASK = OPC$M_NM_OPER1
        ! Terminal unit number
        STATUS = LIB$GETDVI (DVI$_UNIT,
        2                    ,
        2                    'SYS$OUTPUT',
        2                    MSGBUF.OUNIT,,)
        IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL(STATUS))
        ! Terminal name
        STATUS = LIB$GETDVI (DVI$_FULLDEVNAM,
        2                    ,
        2                    'SYS$OUTPUT',,
        2                    MSGBUF.ONAME,
        2                    ONAME_LEN)
        IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL(STATUS))
        ! Remove unit number from ONAME and set up counted string
        ONAME_LEN = ONAME_LEN - 3
        MSGBUF.ONAME(2:ONAME_LEN+1) = MSGBUF.ONAME(1:ONAME_LEN)
        MSGBUF.ONAME(1:1) = CHAR(ONAME_LEN)
        ! Call $SNDOPR
        STATUS = SYS$SNDOPR (MSGBUF.STRING,)
        IF (.NOT. STATUS) CALL LIB$SIGNAL(%VAL(STATUS))
        END

This DEC Fortran for OpenVMS program enables the current terminal to receive OPER1 operator messages.

$START_ALIGN_FAULT_REPORT (Alpha Only)

On Alpha systems, initializes user image alignment fault reporting.

Format

SYS$START_ALIGN_FAULT_REPORT report_method ,report_buffer ,buffer_length

C Prototype

int sys$start_align_fault_report (int report_method, void *report_buffer, int buffer_length);

ARGUMENTS

report_method


OpenVMS usage: longword_signed
type: longword (signed)
access: read
mechanism: by value

Method by which image alignment faults are to be reported. The following table shows valid values for the report_method argument.
Value Meaning
AFR$C_BUFFERED Alignment fault PCs and fault addresses are saved in a user-supplied buffer.
AFR$C_EXCEPTION Alignment faults are elevated to user mode exceptions.

report_buffer


OpenVMS usage: address
type: longword (unsigned)
access: read
mechanism: by reference

The 32-bit address of the buffer into which to write the fault data. The report_buffer argument is needed only if the value of the report_method argument is AFR$C_BUFFERED.

buffer_length


OpenVMS usage: byte count
type: longword (signed)
access: read
mechanism: by value

Length of the buffer specified in the report_buffer argument. The buffer must have a minimum size of AFR$K_USER_LENGTH + 32. However, a larger buffer allows for more information to be collected.

DESCRIPTION

The Start Alignment Fault Reporting service initializes user image alignment fault reporting.

The $START_ALIGN_FAULT_REPORT service allows the user to gather alignment fault data for one image. Reporting is enabled for the life of the image. When the image terminates, the alignment fault reporting is disabled.

User alignment fault data can be written to a buffer or broadcast as an informational exception message.

If the AFR$C_BUFFERED value is given in the report_method buffer, alignment fault PCs and fault addresses are saved in a user-supplied buffer.

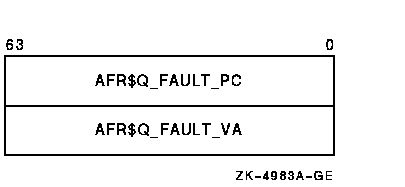

The following diagram illustrates the format in which user alignment fault data is stored in the buffer.

If the AFR$C_EXCEPTION value is given in the report_method argument, alignment faults are elevated to user mode exceptions. These exceptions can be trapped in a handler. Otherwise, an informational exception message might be broadcast and the program continues to execute.

Required Access or Privileges

None

Required Quota

None

Related Services

$GET_ALIGN_FAULT_DATA, $GET_SYS_ALIGN_FAULT_DATA, $INIT_SYS_ALIGN_FAULT_REPORT, $PERM_DIS_ALIGN_FAULT_REPORT, $PERM_REPORT_ALIGN_FAULT, $STOP_ALIGN_FAULT_REPORT, $STOP_SYS_ALIGN_FAULT_REPORT

Condition Values Returned

SS$_NORMAL The service completed successfully.
SS$_ACCVIO The buffer specified in the report_buffer argument is not accessible.
SS$_AFR_ENABLED The service has already been called for this image.
SS$_ARG_GTR_32_BITS The report buffer's virtual address lies in 64-bit virtual address space.
SS$_ALIGN The buffer specified in the report_buffer argument is not quadword aligned.
SS$_BADPARAM The buffer size is smaller than that defined by the AFR$K_USER_LENGTH + 32 symbol.

Example

#include <afrdef>
#include <stdio>
#include <ssdef>

#define USER_BUFFER_ITEMS  10
#define GET_BUFFER_SIZE    USER_BUFFER_ITEMS*AFR$K_USER_LENGTH
#define SAVE_BUFFER_SIZE   128+64

#define fault_pc afr$l_fault_pc_l
#define fault_va afr$l_fault_va_l

static int usr_buff_len;
static char *usr_buff;
static int rep_method;


void
cause_af()
{
  int     addr;
  int     *ptr;
  int    arr[2];

  addr = (int) &arr[0];
  ptr = (int *) ++addr;
  *ptr = 1;    /* cause alignment fault */
}


main()
{
  int            i;
  char           get_buffer[GET_BUFFER_SIZE];
  struct afrdef  *data_item;
  int            offset;
  int            status;
  int            return_size;

  rep_method = AFR$C_BUFFERED;
  usr_buff_len = SAVE_BUFFER_SIZE;
  usr_buff = (char *)malloc (usr_buff_len);
  if(( status = sys$start_align_fault_report(rep_method, usr_buff,
               usr_buff_len))
      != SS$_NORMAL) return(status);

  for (i=0;i<USER_BUFFER_ITEMS;i++)
    cause_af();

  while (((status = sys$get_align_fault_data (get_buffer,
                GET_BUFFER_SIZE,
                &return_size)) > 0) &&
         (return_size > 0)) {
    /* got some data, print it */
    offset = 0;
    while (offset < return_size) {
      data_item = (struct afrdef *)(&get_buffer[offset]);
      printf ("Alignment fault at PC = %8.8X, VA = %8.8X\n",
        data_item->fault_pc, data_item->fault_va);
      offset += AFR$K_USER_LENGTH;
    }
  }

  return (status);
}

This example shows how to use the $START_ALIGN_FAULT_REPORT service to initialize user image alignment fault reporting on Alpha systems.

$START_TRANS

Starts a new transaction.

Format

SYS$START_TRANS [efn] ,[flags] ,iosb [,[astadr] ,[astprm] ,[tid] ,[timout] ,[acmode]]

C Prototype

int sys$start_trans (unsigned int efn, unsigned int flags, struct _iosb *iosb,...);

ARGUMENTS

efn


OpenVMS usage: ef_number
type: longword (unsigned)
access: read only
mechanism: by value

Number of the event flag that is set when the service completes. If this argument is omitted, event flag 0 is set.

flags


OpenVMS usage: mask_longword
type: longword (unsigned)
access: read only
mechanism: by value

Flags specifying options for the service. The flags argument is a longword bit mask in which each bit corresponds to an option flag. The $DDTMDEF macro defines symbolic names for these option flags. The flags currently defined are shown in the following table. All undefined bits must be 0. If this argument is omitted, no flags are set.
Flag Description
DDTM$M_NONDEFAULT Set this flag if you do not want the new transaction to be the default transaction of the calling process.

If this flag is clear, the new transaction becomes the default transaction of the calling process. An error is returned if this flag is clear and the calling process already has a default transaction.

DDTM$M_PROCESS Set this flag if you do not want the DECdtm transaction manager to try to abort the transaction if the current image terminates.

If this flag is clear, when the current image terminates (normally or abnormally), the DECdtm transaction manager will abort the transaction if it has not already committed.

An error is returned if this flag is set and the caller is in user mode.

DDTM$M_SYNC Set this flag to specify that successful synchronous completion is to be indicated by returning SS$_SYNCH. When SS$_SYNCH is returned, the AST routine is not called, the event flag is not set, and the I/O status block is not filled in.

iosb


OpenVMS usage: io_status_block
type: quadword (unsigned)
access: write only
mechanism: by reference

I/O status block in which the completion status of the service is returned as a condition value. See the Condition Values Returned section.

The following diagram shows the structure of the I/O status block.

astadr


OpenVMS usage: ast_procedure
type: procedure value
access: call without stack unwinding
mechanism: by reference

AST routine that is executed when the service completes. The astadr argument is the address of this routine. This routine is executed in the access mode of the caller.

astprm


OpenVMS usage: user_arg
type: longword (unsigned)
access: read only
mechanism: by value

AST parameter that is passed to the AST routine specified by the astadr argument.

tid


OpenVMS usage: transaction_id
type: octaword (unsigned)
access: write only
mechanism: by reference

Address of an octaword in which the service returns the identifier of the new transaction.

timout


OpenVMS usage: date_time
type: quadword (unsigned)
access: read only
mechanism: by reference

Timeout for the new transaction. This is the time at which the DECdtm transaction manager is to abort the transaction if the transaction has not already committed.

The time value is a binary number, in units of 100 nanoseconds.

A positive time value specifies an offset from the system base time. The system base time is 00:00 hours November 17, 1858.

A negative time value specifies an offset from the current time to some time in the future.

The transaction is aborted at the next timer interval if you specify either a zero time value or any time in the past.

If this argument is omitted, the new transaction has no timeout.

acmode


OpenVMS usage: access_mode
type: longword (unsigned)
access: read only
mechanism: by value

The least privileged access mode that the calling process must be in to end the transaction by calling $END_TRANS. Note that the calling process can end the transaction by calling $ABORT_TRANS from any access mode.

The access mode that the calling process must be in to end the transaction by calling $END_TRANS is whichever is the least privileged of the following:

If the acmode argument is omitted, it defaults to the access mode of the caller.

DESCRIPTION

The Start Transaction service starts a new transaction that is to be coordinated by the DECdtm distributed transaction manager.

Previous | Next | Contents | [Home] | [Comments] | [Ordering info] | [Help]

[HR]

  4527P077.HTM
  OSSG Documentation
  22-NOV-1996 13:00:47.94

Copyright © Digital Equipment Corporation 1996. All Rights Reserved.

Legal
