You can also force wildcard mode for characteristic, form, or queue display operations by specifying the QUI$V_SEARCH_WILDCARD option of the QUI$_SEARCH_FLAGS item code. If you specify this option, the system saves the GQC between calls, even if you specify a nonwildcard name in the QUI$_SEARCH_NAME item code. Whether or not you specify a wildcard name in the QUI$_SEARCH_NAME item code, selecting the QUI$V_SEARCH_WILDCARD option ensures that wildcard mode is enabled.

Once established, wildcard mode remains in effect until one of the following actions causes the GQC to be released:

Note that wildcard mode is a prerequisite for entering nested wildcard mode.

Nested Wildcard Mode

In nested wildcard mode, the system saves the GQC between calls to $GETQUI so that you can make a sequence of calls to $GETQUI to get information about jobs that are contained in a selected queue or files of the selected job. Nested wildcard mode reflects the parent-child relationship between queues and jobs and between jobs and files. The $GETQUI service can locate and return information about only one object in a single call. However, queues are objects that contain jobs and jobs are objects that contain files. Therefore, to get information about an object contained within another object, you must first make a call to $GETQUI that specifies and locates the containing object and then make a call to request information about the contained object. The system saves the location of the containing object in the GQC along with the location of the contained object.

Note that the context number specified in the context argument must remain the same for each level of nesting.

Two of $GETQUI's operations, QUI$_DISPLAY_JOB and QUI$_DISPLAY_FILE, can be used only in a nested wildcard mode, with one exception. The exceptional use of these two operations involves calls made to $GETQUI from a batch job to find out more information about itself. This exceptional use is described at the end of the Nonwildcard Mode section.

You can enter nested wildcard mode from either wildcard display queue mode or from wildcard display entry mode. To obtain job and file information in nested wildcard mode, you can use a combination of QUI$_DISPLAY_QUEUE, QUI$_DISPLAY_JOB, and QUI$_DISPLAY_FILE operations. To obtain file information, you can use a combination of QUI$_DISPLAY_ENTRY and QUI$_DISPLAY_FILE operations as an alternative.

To set up a nested wildcard search for job and file information, you first perform one or more QUI$_DISPLAY_QUEUE operations in wildcard mode to establish the queue context necessary for the nested display job and file operations. Next you specify the QUI$_DISPLAY_JOB operation repetitively; these calls search the current queue until a call locates the job that contains the file or files you want. This call establishes the job context. Having located the queue and the job that contain the file or files, you can now use the QUI$_DISPLAY_FILE operation repetitively to request file information.

You can enter the nested wildcard mode for the display queue operation in two different ways: by specifying a wildcard name in the QUI$_SEARCH_NAME item code or by specifying a nonwildcard queue name and selecting the QUI$V_SEARCH_WILDCARD option of the QUI$_SEARCH_FLAG item code. The second method of entering wildcard mode is useful if you want to obtain information about one or more jobs or files within jobs for a specific queue and want to specify a nonwildcard queue name but still want to save the GQC after the queue context is established.

When you make calls to $GETQUI that specify the QUI$_DISPLAY_JOB function code, by default $GETQUI locates all the jobs in the selected queue that have the same user name as the calling process. If you want to obtain information about all the jobs in the selected queue, you select the QUI$V_SEARCH_ALL_JOBS option of the QUI$_SEARCH_FLAGS item code.

After you establish a queue context, it remains in effect until you either change the context by making another call to $GETQUI that specifies the QUI$_DISPLAY_QUEUE function code or until one of the actions listed at the end of the Wildcard Mode section causes the GQC to be released. An established job context remains in effect until you change the context by making another call to $GETQUI that specifies the QUI$_DISPLAY_JOB function code or $GETQUI returns a JBC$_NOMOREJOB or JBC$_NOSUCHJOB condition value. While the return of either of these two condition values releases the job context, the wildcard search remains in effect because the GQC continues to maintain the queue context. Similarly, return of the JBC$_NOMOREFILE or JBC$_NOSUCHFILE condition value signals that no more files remain in the current job context. However, these condition values do not cause the job context to be dissolved.

To set up a nested wildcard search for file information for a particular entry, you first perform one or more QUI$_DISPLAY_ENTRY operations in wildcard mode to establish the desired job context. Next you call $GETQUI iteratively with the QUI$_DISPLAY_FILE function code to obtain file information for the selected job.

When you make calls to $GETQUI that specify the QUI$_DISPLAY_ENTRY function code, by default $GETQUI locates all jobs that have the same user name as the calling process. If you want to obtain information about jobs owned by another user, you specify the user name in the QUI$_SEARCH_USERNAME item code.

You can use the QUI$_SEARCH_FREEZE_CONTEXT option of the QUI$_SEARCH_FLAGS item code in any wildcard or nested wildcard call to prevent advancement of context to the next object on the list. This allows you to make successive calls for information about the same queue, job, file, characteristic, or form.

Required Access or Privileges

The caller must have manage (M) access to the queue, read (R) access to the job, or SYSPRV or OPER privilege to obtain job and file information.

If the caller does not have the privilege required to access a job specified in a QUI$_DISPLAY_JOB or QUI$_DISPLAY_FILE operation, $GETQUI returns a successful condition value. However, it sets the QUI$V_JOB_INACCESSIBLE bit of the QUI$_JOB_STATUS item code and returns information only for the following item codes:

Required Quota

AST limit quota must be sufficient.

Related Services

$ALLOC, $ASSIGN, $BRKTHRU, $BRKTHRUW, $CANCEL, $CREMBX, $DALLOC, $DASSGN, $DELMBX, $DEVICE_SCAN, $DISMOU, $GETDVI, $GETDVIW, $GETMSG, $GETQUIW, $INIT_VOL, $MOUNT, $PUTMSG, $QIO, $QIOW, $SNDERR, $SNDJBC, $SNDJBCW, $SNDOPR, $TRNLNM

Condition Values Returned

SS$_NORMAL The service completed successfully.
SS$_ACCVIO The item list or input buffer cannot be read by the caller; or the return length buffer, output buffer, or status block cannot be written by the caller.
SS$_BADCONTEXT Context does not exist or must be called from a more privileged mode.
SS$_BADPARAM The function code is invalid; the item list contains an invalid item code; a buffer descriptor has an invalid length; or the reserved parameter has a nonzero value.
SS$_DEVOFFLINE The job controller process is not running.
SS$_EXASTLM The astadr argument was specified, and the process has exceeded its ASTLM quota.
SS$_ILLEFC The efn argument specifies an illegal event flag number.
SS$_INSFMEM The space for completing the request is insufficient.
SS$_MBFULL The job controller mailbox is full.
SS$_IVLOGNAM The device name string has a length of 0 or has more than 63 characters.
SS$_MBTOOSML The mailbox message is too large for the job controller mailbox.
SS$_UNASEFC The efn argument specifies an unassociated event flag cluster.

Condition Values Returned in the I/O Status Block

JBC$_NORMAL The service completed successfully.
JBC$_INVFUNCOD The specified function code is invalid.
JBC$_INVITMCOD The item list contains an invalid item code.
JBC$_INVPARLEN The length of a specified string is outside the valid range for that item code.
JBC$_INVQUENAM The queue name is not syntactically valid.
JBC$_JOBQUEDIS The request cannot be executed because the system job queue manager has not been started.
JBC$_MISREQPAR An item code that is required for the specified function code has not been specified.
JBC$_NOJOBCTX No job context has been established for a QUI$_DISPLAY_FILE operation.
JBC$_NOMORECHAR No more characteristics are defined, which indicates the termination of a QUI$_DISPLAY_CHARACTERISTIC wildcard operation.
JBC$_NOMOREENT There are no more job entries for the specified user or current user name, which indicates termination of a QUI$_DISPLAY_ENTRY wildcard operation.
JBC$_NOMOREFILE No more files are associated with the current job context, which indicates the termination of a QUI$_DISPLAY_FILE wildcard operation for the current job context.
JBC$_NOMOREFORM No more forms are defined, which indicates the termination of a QUI$_DISPLAY_FORM wildcard operation.
JBC$_NOMOREJOB No more jobs are associated with the current queue context, which indicates the termination of a QUI$_DISPLAY_JOB wildcard operation for the current queue context.
JBC$_NOMOREQMGR No more queue managers are defined, which indicates the termination of a QUI$_DISPLAY_MANAGER wildcard operation.
JBC$_NOMOREQUE No more queues are defined, which indicates the termination of a QUI$_DISPLAY_QUEUE wildcard operation.
JBC$_NOQUECTX No queue context has been established for a QUI$_DISPLAY_JOB or QUI$_DISPLAY_FILE operation.
JBC$_NOSUCHCHAR The specified characteristic does not exist.
JBC$_NOSUCHENT There is no job with the specified entry number, or there is no job for the specified user or current user name.
JBC$_NOSUCHFILE The specified file does not exist.
JBC$_NOSUCHFORM The specified form does not exist.
JBC$_NOSUCHJOB The specified job does not exist.
JBC$_NOSUCHQMGR The specified queue manager does not exist.
JBC$_NOSUCHQUE The specified queue does not exist.

Examples

#1
! Declare system service related symbols
INTEGER*4       SYS$GETQUIW,
2               LIB$MATCH_COND,
2               STATUS
INCLUDE         '($QUIDEF)'

! Define item list structure
STRUCTURE       /ITMLST/
  UNION
    MAP
      INTEGER*2 BUFLEN, ITMCOD
      INTEGER*4 BUFADR, RETADR
    END MAP
    MAP
      INTEGER*4 END_LIST
    END MAP
  END UNION
END STRUCTURE

! Define I/O status block structure
STRUCTURE       /IOSBLK/
INTEGER*4       STS, ZEROED
END STRUCTURE
! Declare $GETQUIW item list and I/O status block
RECORD /ITMLST/ GETQUI_LIST(4)
RECORD /IOSBLK/ IOSB

! Declare variables used in $GETQUIW item list
CHARACTER*31    QUEUE_NAME
INTEGER*2       QUEUE_NAME_LEN
INTEGER*4       SEARCH_FLAGS,
2               ENTRY_NUMBER

! Initialize item list
GETQUI_LIST(1).BUFLEN = 4
GETQUI_LIST(1).ITMCOD = QUI$_SEARCH_FLAGS
GETQUI_LIST(1).BUFADR = %LOC(SEARCH_FLAGS)
GETQUI_LIST(1).RETADR = 0
GETQUI_LIST(2).BUFLEN = 4
GETQUI_LIST(2).ITMCOD = QUI$_ENTRY_NUMBER
GETQUI_LIST(2).BUFADR = %LOC(ENTRY_NUMBER)
GETQUI_LIST(2).RETADR = 0
GETQUI_LIST(3).BUFLEN = 31
GETQUI_LIST(3).ITMCOD = QUI$_QUEUE_NAME
GETQUI_LIST(3).BUFADR = %LOC(QUEUE_NAME)
GETQUI_LIST(3).RETADR = %LOC(QUEUE_NAME_LEN)
GETQUI_LIST(4).END_LIST = 0

SEARCH_FLAGS = QUI$M_SEARCH_THIS_JOB

! Call $GETQUIW service to obtain job information
STATUS = SYS$GETQUIW (,
2               %VAL(QUI$_DISPLAY_JOB),,
2               GETQUI_LIST,
2               IOSB,,)
IF (LIB$MATCH_COND (IOSB.STS, %LOC(JBC$_NOSUCHJOB))) THEN
    ! The search_this_job option can be used only by
    ! a batch job to obtain information about itself
    TYPE *, '<<< this job is not being run in batch mode>>>'
ENDIF
IF (STATUS) STATUS = IOSB.STS
IF (STATUS) THEN
    ! Display information
    TYPE *, 'Job entry number = ', ENTRY_NUMBER
    TYPE *, 'Queue name = ', QUEUE_NAME(1:QUEUE_NAME_LEN)
ELSE
    ! Signal error condition
    CALL LIB$SIGNAL (%VAL(STATUS))
ENDIF
END

This Fortran program demonstrates how a batch job can obtain information about itself from the system job queue file by using the $GETQUIW system service. Use of the QUI$M_SEARCH_THIS_JOB option in the QUI$_SEARCH_FLAGS input item requires that the calling program run as a batch job; otherwise, the $GETQUIW service returns a JBC$_NOSUCHJOB error.

#2
! Declare system service related symbols
INTEGER*4       SYS$GETQUIW,
2               STATUS_Q,
2               STATUS_J,
2               NOACCESS
INCLUDE         '($QUIDEF)'

! Define item list structure
STRUCTURE       /ITMLST/
  UNION
    MAP
      INTEGER*2 BUFLEN, ITMCOD
      INTEGER*4 BUFADR, RETADR
    END MAP
    MAP
      INTEGER*4 END_LIST
    END MAP
  END UNION
END STRUCTURE

! Define I/O status block structure
STRUCTURE       /IOSBLK/
INTEGER*4       STS, ZEROED
END STRUCTURE

! Declare $GETQUIW item lists and I/O status block
RECORD /ITMLST/ QUEUE_LIST(4)
RECORD /ITMLST/ JOB_LIST(6)
RECORD /IOSBLK/ IOSB

! Declare variables used in $GETQUIW item lists
CHARACTER*31    SEARCH_NAME
CHARACTER*31    QUEUE_NAME
CHARACTER*39    JOB_NAME
CHARACTER*12    USERNAME
INTEGER*2       SEARCH_NAME_LEN,
2               QUEUE_NAME_LEN,
2               JOB_NAME_LEN,
2               USERNAME_LEN
INTEGER*4       SEARCH_FLAGS,
2               JOB_SIZE,
2               JOB_STATUS

! Solicit queue name to search; it may be a wildcard name
TYPE 9000
ACCEPT 9010, SEARCH_NAME_LEN, SEARCH_NAME

! Initialize item list for the display queue operation
QUEUE_LIST(1).BUFLEN =  SEARCH_NAME_LEN
QUEUE_LIST(1).ITMCOD =  QUI$_SEARCH_NAME
QUEUE_LIST(1).BUFADR =  %LOC(SEARCH_NAME)
QUEUE_LIST(1).RETADR =  0
QUEUE_LIST(2).BUFLEN =  4
QUEUE_LIST(2).ITMCOD =  QUI$_SEARCH_FLAGS
QUEUE_LIST(2).BUFADR =  %LOC(SEARCH_FLAGS)
QUEUE_LIST(2).RETADR =  0
QUEUE_LIST(3).BUFLEN =  31
QUEUE_LIST(3).ITMCOD =  QUI$_QUEUE_NAME
QUEUE_LIST(3).BUFADR =  %LOC(QUEUE_NAME)
QUEUE_LIST(3).RETADR =  %LOC(QUEUE_NAME_LEN)
QUEUE_LIST(4).END_LIST = 0

! Initialize item list for the display job operation
JOB_LIST(1).BUFLEN =    4
JOB_LIST(1).ITMCOD =    QUI$_SEARCH_FLAGS
JOB_LIST(1).BUFADR =    %LOC(SEARCH_FLAGS)
JOB_LIST(1).RETADR =    0
JOB_LIST(2).BUFLEN =    4
JOB_LIST(2).ITMCOD =    QUI$_JOB_SIZE
JOB_LIST(2).BUFADR =    %LOC(JOB_SIZE)
JOB_LIST(2).RETADR =    0
JOB_LIST(3).BUFLEN =    39
JOB_LIST(3).ITMCOD =    QUI$_JOB_NAME
JOB_LIST(3).BUFADR =    %LOC(JOB_NAME)
JOB_LIST(3).RETADR =    %LOC(JOB_NAME_LEN)
JOB_LIST(4).BUFLEN =    12
JOB_LIST(4).ITMCOD =    QUI$_USERNAME
JOB_LIST(4).BUFADR =    %LOC(USERNAME)
JOB_LIST(4).RETADR =    %LOC(USERNAME_LEN)
JOB_LIST(5).BUFLEN =    4
JOB_LIST(5).ITMCOD =    QUI$_JOB_STATUS
JOB_LIST(5).BUFADR =    %LOC(JOB_STATUS)
JOB_LIST(5).RETADR =    0
JOB_LIST(6).END_LIST =  0

! Request search of all jobs present in output queues; also force
! wildcard mode to maintain the internal search context block after
! the first call when a non-wild queue name is entered--this preserves
! queue context for the subsequent display job operation
SEARCH_FLAGS = (QUI$M_SEARCH_WILDCARD .OR.
2               QUI$M_SEARCH_SYMBIONT .OR.
2               QUI$M_SEARCH_ALL_JOBS)

! Dissolve any internal search context block for the process
STATUS_Q = SYS$GETQUIW (,%VAL(QUI$_CANCEL_OPERATION),,,,,)

! Locate next output queue; loop until an error status is returned
DO WHILE (STATUS_Q)
   STATUS_Q = SYS$GETQUIW (,
2                       %VAL(QUI$_DISPLAY_QUEUE),,
2                       QUEUE_LIST,
2                       IOSB,,)
   IF (STATUS_Q) STATUS_Q = IOSB.STS
   IF (STATUS_Q) TYPE 9020, QUEUE_NAME(1:QUEUE_NAME_LEN)
   STATUS_J = 1

   ! Get information on next job in queue; loop until error return
   DO WHILE (STATUS_Q .AND. STATUS_J)
       STATUS_J = SYS$GETQUIW (,
2                       %VAL(QUI$_DISPLAY_JOB),,
2                       JOB_LIST,
2                       IOSB,,)
       IF (STATUS_J) STATUS_J = IOSB.STS
       IF ((STATUS_J) .AND. (JOB_SIZE .GE. 500)) THEN
           NOACCESS = (JOB_STATUS .AND. QUI$M_JOB_INACCESSIBLE)
           IF (NOACCESS .NE. 0) THEN
               TYPE 9030, JOB_SIZE
           ELSE
               TYPE 9040, JOB_SIZE,
2                   USERNAME(1:USERNAME_LEN),
2                   JOB_NAME(1:JOB_NAME_LEN)
           ENDIF
       ENDIF
ENDDO
ENDDO

9000    FORMAT (' Enter queue name to search: ', $)
9010    FORMAT (Q, A31)
9020    FORMAT ('0Queue name = ', A)
9030    FORMAT ('   Job size = ', I5, '   <no read access privilege>')
9040    FORMAT ('   Job size = ', I5,
        2       '   Username = ', A, T46,
        2       '   Job name = ', A)
        END

This Fortran program demonstrates how any job can obtain information about other jobs from the system job queue file by using the $GETQUIW system service. This program lists all print jobs in output queues with a job size of 500 blocks or more. It also displays queue name, job size, user name, and job name information for each job listed.

$GETQUIW

Returns information about queues and jobs initiated from those queues. The $SNDJBC service is the major interface to the Job Controller, which is the queue and accounting manager. For a discussion of the different types of job and queue, see the Description section of $SNDJBC.

The $GETQUIW service completes synchronously; that is, it returns to the caller with the requested information. For asynchronous completion, use the Get Queue Information ($GETQUI) service; $GETQUI returns to the caller after queuing the information request, without waiting for the information to be returned.

In all other respects, $GETQUIW is identical to $GETQUI. For more information about $GETQUIW, refer to the description of $GETQUI in this manual.

For additional information about system service completion, refer to the Synchronize ($SYNCH) service.

Format

SYS$GETQUIW [efn] ,func [,context] [,itmlst] [,iosb] [,astadr] [,astprm]

C Prototype

int sys$getquiw (unsigned int efn, unsigned short int func, unsigned int *context, void *itmlst, struct _iosb *iosb, void (*astadr)(__unknown_params), int astprm);

$GETSYI

Returns information about the local system or about other systems in an OpenVMS Cluster system. The $GETSYI service completes asynchronously; for synchronous completion, use the Get Systemwide Information and Wait ($GETSYIW) service.

For additional information about system service completion, refer to the Synchronize ($SYNCH) service.

On Alpha systems, this service accepts 64-bit addresses.

Format

SYS$GETSYI [efn] ,[csidadr] ,[nodename] ,itmlst [,iosb] [,astadr] [,astprm]

C Prototype

int sys$getsyi (unsigned int efn, unsigned int *csidadr, void *nodename, void *itmlst, struct _iosb *iosb, void (*astadr)(__unknown_params), unsigned __int64 astprm);

ARGUMENTS

efn


OpenVMS usage: ef_number
type: longword (unsigned)
access: read only
mechanism: by value

Number of the event flag to be set when the $GETSYI request completes. The efn argument is a longword containing this number; however, $GETSYI uses only the low-order byte.

Upon request initiation, $GETSYI clears the specified event flag (or event flag 0 if efn was not specified). Then, when the request completes, the specified event flag (or event flag 0) is set.

csidadr


OpenVMS usage: process_id
type: longword (unsigned)
access: modify
mechanism: by 32- or 64-bit reference (Alpha)
mechanism: by 32-bit reference (VAX)

OpenVMS Cluster system identification of the node about which $GETSYI is to return information. The csidadr argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha systems) of a longword containing this identification value.

The cluster-connection software assigns the OpenVMS Cluster system identification of a node. You can obtain this information by using the DCL command SHOW CLUSTER. The value of the cluster system identification for a node is not permanent; a new value is assigned to a node whenever it joins or rejoins the cluster.

You can also specify a node to $GETSYI by using the nodename argument. If you specify csidadr, you need not specify nodename, and vice versa. If you specify both, they must identify the same node. If you specify neither argument, $GETSYI returns information about the local node. However, for wildcard operations, you must use the csidadr argument.

If you specify csidadr as --1, $GETSYI assumes a wildcard operation and returns the requested information for each node in the cluster, one node per call. In this case, the program should test for the condition value SS$_NOMORENODE after each call to $GETSYI and should stop calling $GETSYI when SS$_NOMORENODE is returned.

nodename


OpenVMS usage: process_name
type: character-coded text string
access: read only
mechanism: by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha)
mechanism: by 32-bit descriptor--fixed-length string descriptor (VAX)

Name of the node about which $GETSYI is to return information. The nodename argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha systems) of a character string descriptor pointing to this name string.

The node name string must contain from 1 to 15 characters and must correspond exactly to the node name; no trailing blanks or abbreviations are permitted.

You can also specify a node to $GETSYI by using the csidadr argument. See the description of csidadr.

itmlst


OpenVMS usage: 32-bit item_list_3 or 64-bit item_list_64b
type: longword (unsigned) for 32-bit; quadword (unsigned) for 64-bit
access: read only
mechanism: by 32- or 64-bit reference (Alpha)
mechanism: by 32-bit reference (VAX)

Item list specifying which information is to be returned about the node or nodes. The itmlst argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha systems) of a list of item descriptors, each of which describes an item of information. An item list in 32-bit format is terminated by a longword of 0; an item list in 64-bit format is terminated by a quadword of 0. All items in an item list must be of the same format---either 32-bit or 64-bit.

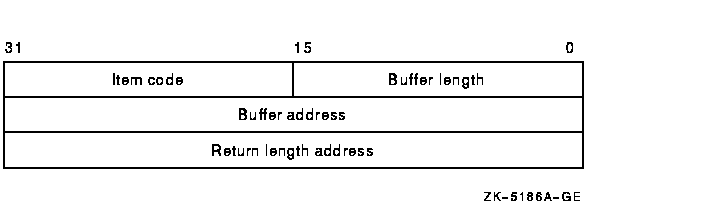

The following diagram depicts the 32-bit format of a single item descriptor.

The following table defines the item descriptor fields for 32-bit item list entries.
Descriptor Field Definition
Buffer length A word containing a user-supplied integer specifying the length (in bytes) of the buffer in which $GETSYI is to write the information. The length of the buffer needed depends upon the item code specified in the item code field of the item descriptor. If the value of the buffer length field is too small, $GETSYI truncates the data.
Item code A word containing a user-supplied symbolic code specifying the item of information that $GETSYI is to return. The $SYIDEF macro defines these codes. A description of each item code is given in the Item Codes section.
Buffer address A longword containing the user-supplied 32-bit address of the buffer into which $GETSYI is to write the information.
Return length address A longword containing the user-supplied 32-bit address of a word in which $GETSYI writes the length in bytes of the information it actually returned.

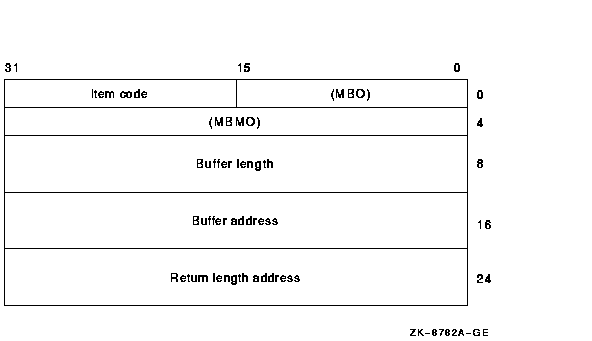

The following diagram depicts the 64-bit format of a single item descriptor.

The following table defines the item descriptor fields for 64-bit item list entries.
Descriptor Field Definition
MBO The field must contain a 1. The MBO and MBMO fields are used to distinguish 32-bit and 64-bit item list entries.
Item code A word containing a user-supplied symbolic code specifying the item of information that $GETSYI is to return. The $SYIDEF macro defines these codes. A description of each item code is given in the Item Codes section.
MBMO The field must contain a --1. The MBMO and MBO fields are used to distinguish 32-bit and 64-bit item list entries.
Buffer length A quadword containing a user-supplied integer specifying the length (in bytes) of the buffer in which $GETSYI is to write the information. The length of the buffer needed depends upon the item code specified in the item code field of the item descriptor. If the value of the buffer length is too small, $GETSYI truncates the data.
Buffer address A quadword containing the user-supplied 64-bit address of the buffer into which $GETSYI is to write the information.
Return length address A quadword containing the user-supplied 64-bit address of a word in which $GETSYI writes the length in bytes of the information it actually returned.

Previous | Next | Contents | [Home] | [Comments] | [Ordering info] | [Help]

[HR]

  4527P044.HTM
  OSSG Documentation
  22-NOV-1996 12:59:55.20

Copyright © Digital Equipment Corporation 1996. All Rights Reserved.

Legal
