FDK PEX668-31
150 Watt Power Supply
SS4 / SS5 / SS20
| 300-1215 |
300-1279 |
| AC Input Power Supply |
AC Input Power Supply |

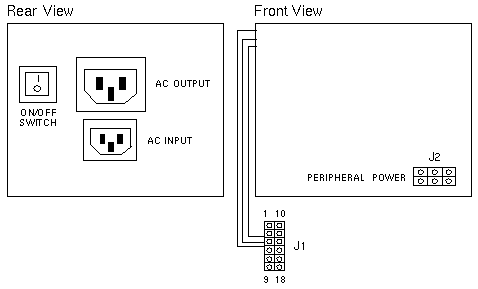

J1
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10-15 |
16 |
17 |
18 |
| Blu |
Brn |
Red |
Red |
Red |
Red |
Red |
Red |
Gry |
Blk |
Grn |
Vio |
Yel |
| +12 |
-12 |
+5 |
+5 |
+5 |
+5 |
+5 |
+5 |
Poff |
GND |
Mon |
Fan |
Pon |
J2
| 1 |
2 |
3 |
4 |
5 |
6 |
| Red |
Blk |
Blk |
Red |
Blk |
Blu |
| +5 |
GND |
GND |
+5 |
GND |
+12 |
DC Output
| +5V |
+12V |
-12V |
| 25A |
2.3A |
0.25A |
Note
- The SS20 requires the 300-1215-03 or 300-1279-01 power supply.
- Part number 300-1279 is used in SS4 1.05GB disk drive Server
configurations because the 150 Watt power supply supports the
power state memory feature. SS4 Workstation configurations,
regardless of disk capacity, use 50 Watt power supply 300-1257.
|
